Voltage is one of those words you see everywhere—on phone chargers, wall outlets, solar inverters, home batteries, industrial equipment, and even medical devices—yet it often feels abstract. In simple terms, voltage is the “push” that makes electric charge move.
This article explains voltage in clear, simple language while also providing deeper technical insight. We will explore its definition, history, classification, measurement methods, practical importance, and its relationship with current and different types of electricity.
What Is Voltage? Definition and Meaning
In simple words: Voltage is the electrical “push” that drives current through a circuit.
Voltage Definition
Voltage is the difference in electric potential between two points in a circuit. It represents the energy available per unit of electric charge and is measured in volts (V).
| Term | Meaning |
|---|---|
| Voltage | Electrical potential difference |
| Symbol | V |
| Unit | Volt (V) |
| Related quantity | Current |
| Common analogy | Electrical pressure |

Who Invented the Concept of Voltage?
The term “voltage” recognizes the work of Alessandro Volta, an Italian physicist who lived from 1745 to 1827.
Volta invented the voltaic pile, which is considered the first true electrical battery. Before his invention, electricity could only be generated in short bursts using static electricity machines. Volta’s battery provided a steady and continuous flow of electric current.
The unit of voltage—the volt (V)—is named in his honor. His work laid the foundation for modern electrical science and energy storage technologies.
Classification of Voltage
Voltage is commonly classified into three levels in IEC-based electrical installation practice: extra-low voltage (ELV), low voltage (LV), and high voltage (HV). The commonly used boundaries are 50V AC, 120V ripple-free DC, 1,000V AC, and 1,500V DC.
However, voltage classifications depend on the applicable standards and industry. For example, a 400V DC battery may be marketed as a high-voltage energy storage battery even though it falls within the low-voltage range under common IEC electrical installation terminology.
Voltage Classification by AC and DC Levels
| Voltage Classification | AC Voltage (RMS) | DC Voltage (Ripple-Free) | Common Applications |
|---|---|---|---|
| Extra-Low Voltage (ELV) | Up to 50V | Up to 120V | Control circuits, low-voltage electronics, 12V–48V-class batteries |
| Low Voltage (LV) | Above 50V to 1,000V | Above 120V to 1,500V | Household AC distribution, commercial electrical installations, many battery storage systems |
| High Voltage (HV) | Above 1,000V | Above 1,500V | High-voltage power systems and industrial electrical installations |
1. High Voltage
In common IEC electrical installation terminology, high voltage generally refers to electrical systems operating above 1,000V AC or 1,500V DC.
High-voltage systems are used in power transmission, industrial electrical infrastructure, and other applications where substantial electrical power must be transferred.
However, the term high-voltage battery has a different meaning in the energy storage industry.
For example, a battery operating at 400V or 800V DC may be called a high-voltage battery to distinguish it from a 48V-class battery system. Under the general IEC installation voltage boundaries shown above, these DC voltages remain within the low-voltage category, provided the system’s applicable voltage remains at or below 1,500V DC.
A high-voltage battery product label therefore does not automatically mean that the system is classified as high voltage under electrical installation standards.
The complete battery voltage range, maximum charging voltage, insulation requirements, and applicable product standards must be considered when designing an installation.
2. Low Voltage and Extra-Low Voltage
Low voltage and extra-low voltage have different meanings in electrical installation standards.
Under the common IEC classification:
- Extra-low voltage: Up to 50V AC RMS or 120V ripple-free DC.
- Low voltage AC: Above 50V and up to 1,000V AC RMS.
- Low voltage DC: Above 120V and up to 1,500V DC.
For example, household 120V AC and 230V AC electrical supplies are classified as low voltage rather than extra-low voltage.
Many residential LiFePO4 batteries operate at nominal voltages of 12.8V, 25.6V, or 51.2V DC.
Battery Voltage Classification Examples
| Battery or Electrical System | Nominal Voltage | Common Product Description | General IEC Voltage Category |
|---|---|---|---|
| LiFePO4 battery | 12.8V DC | 12V battery | ELV |
| LiFePO4 battery | 25.6V DC | 24V battery | ELV |
| LiFePO4 battery | 51.2V DC | 48V low-voltage battery | ELV |
| Residential AC supply | 230V AC | Household mains electricity | LV |
| Battery energy storage stack | 400V DC | High-voltage battery | LV |
| Battery energy storage stack | 800V DC | High-voltage battery | LV |
A typical 51.2V 100Ah LiFePO4 battery stores:
51.2V × 100Ah ÷ 1,000 = 5.12kWh
Although 51.2V DC falls within the extra-low-voltage range in this classification, the battery can store substantial energy and may deliver very high fault currents.
For this reason, battery systems require appropriate insulation, terminal protection, overcurrent protection, compatible wiring, and battery management systems (BMS).
In the energy storage industry, the terms low-voltage battery and high-voltage battery are often used to describe product architecture and inverter compatibility rather than formal installation voltage categories.
3. Safe Voltage: Is Below 50V AC or 120V DC Always Safe?
No. There is no single voltage level that guarantees electrical safety under all conditions.
The commonly cited limits of 50V AC RMS and 120V ripple-free DC identify the upper boundaries of extra-low voltage in common IEC classifications. They do not mean that all circuits below those limits are harmless to touch.
Electrical injury risk depends on several factors:
- Contact conditions: Wet skin, damaged skin, and conductive surroundings can increase the risk of electric shock.
- Current path: Current flowing through the body may affect vital organs.
- Exposure duration: Longer contact can increase the severity of injury.
- Power source capability: Batteries with high available fault current can cause short circuits, heating, burns, and electrical arcing.
- Protective measures: Insulation, electrical separation, enclosures, grounding arrangements, and protective devices determine how hazards are controlled.
SELV vs. PELV vs. FELV: What’s the Difference?
Electrical installation standards distinguish between extra-low voltage as a voltage range and protective measures that reduce electric shock risks.
| System | Full Name | Main Protection Principle | Earthing Arrangement |
|---|---|---|---|
| ELV | Extra-Low Voltage | Defines a voltage range, not a complete protection method | Depends on circuit design |
| SELV | Safety Extra-Low Voltage | Protective separation from higher-voltage circuits with specified requirements under normal and fault conditions | SELV live conductors are not intentionally earthed |
| PELV | Protective Extra-Low Voltage | Uses protective separation and other specified protection requirements | Intentional earthing may be permitted |
| FELV | Functional Extra-Low Voltage | Uses ELV for functional purposes but does not meet all SELV or PELV requirements | Requires appropriate additional basic and fault protection |
SELV and PELV are protective arrangements, not merely voltage labels.
For a circuit to qualify as SELV or PELV, it must satisfy the applicable electrical separation, source, wiring, and protection requirements. These principles are addressed in IEC 60364-4-41 and related electrical protection standards.
For example, a 24V DC control circuit is not automatically a SELV circuit simply because its operating voltage is 24V. Its power source, separation from higher-voltage circuits, and other protective requirements must also be verified.
Similarly, a 51.2V LiFePO4 battery should not automatically be described as a SELV system merely because its nominal voltage is below 120V DC.
Does 50V Have the Same Safety Meaning in Every Country?
No. Regulations and technical standards may apply different thresholds for specific safety requirements.
For example, the U.S. Occupational Safety and Health Administration (OSHA) generally requires exposed live parts operating at 50V or more, AC or DC, to be guarded against accidental contact in the general-industry situations covered by 29 CFR 1910.303(g)(2)(i).
This OSHA guarding requirement is different from the IEC extra-low-voltage classification boundary of 120V ripple-free DC.
Consequently, a 60V DC circuit may fall within the IEC-style extra-low-voltage range while still being subject to OSHA guarding requirements in a covered U.S. workplace.
The practical rule is to identify the applicable installation and product standards, not to assume a circuit is safe because its voltage falls below a particular number.
For residential and commercial battery storage systems, qualified installers should verify the battery voltage range, BMS protection, short-circuit protection, inverter compatibility, cable ratings, and required isolation measures before installation or maintenance.
4. Other Voltage-Related Terms
Some electrical terms describe specific equipment characteristics rather than general voltage classifications.
Impedance Voltage: In transformer specifications, impedance voltage (often expressed as a percentage) describes the voltage required to produce rated current in a winding when another winding is short-circuited under specified test conditions. It is used in transformer impedance and fault-current calculations.
Medical Equipment Voltage: There is no single universal voltage category called “medical voltage.” Medical electrical equipment is subject to product-specific safety requirements, including applicable IEC 60601 standards, electrical isolation, and patient leakage-current limits.
These terms should not be treated as additional voltage classes alongside ELV, LV, and HV.
What Does Voltage Do?
Voltage isn’t just a number—it controls how energy flows and how devices perform.
Efficient Power Delivery
Voltage, together with current, determines the total electrical power in a system. Higher voltage allows electricity to travel long distances with minimal energy loss, which is essential for both residential and commercial power distribution.
Device Performance
Every electrical device is designed to operate at a specific voltage range. Supplying too high or too low voltage can cause malfunction, permanent damage, or reduced performance. Maintaining the correct voltage ensures devices function reliably and prolongs the life of sensitive electronics and batteries.
Energy Storage Efficiency
In battery and energy storage systems, proper voltage management is critical for safe operation. It ensures batteries charge and discharge efficiently, preventing overcharging or deep discharge that could harm the cells. For example, a 20 kWh residential battery depends on precise voltage regulation to deliver maximum capacity and lifespan.
Safety
Keeping voltage within safe levels protects both people and equipment from electrical hazards. Overvoltage or undervoltage conditions can lead to shocks, fires, or system failures. Consistent monitoring and regulation of voltage is therefore a key part of any safe electrical or energy storage system.
Voltage vs Current vs Power
Although often used together, voltage and current are distinct concepts:
| Electrical Quantity | What It Represents | Unit |
|---|---|---|
| Voltage | Electrical potential difference | Volt (V) |
| Current | Flow of electric charge | Ampere (A) |
| Power | Rate of electrical energy transfer | Watt (W) |
Power = Voltage × Current
Voltage pushes, and current flows. A battery may have high voltage, but without a closed circuit, current will not flow, and no energy is delivered to your home or commercial energy storage system.
Common Values of Voltage
Here are typical voltage values in various contexts:
| Application | Voltage (V) |
|---|---|
| AA or AAA battery | 1.5 |
| Car battery | 12 |
| Residential outlet (USA) | 120 |
| Residential outlet (Europe) | 230 |
| Home solar battery system | 48–400 |
| Commercial energy storage | 400–1000+ |
| High-voltage transmission lines | 110,000–765,000 |
A 48V-class home battery, commonly using a nominal 51.2V LiFePO4 configuration, can provide substantial energy storage for residential applications. However, its suitability for home installation depends on the complete system design, including BMS protection, electrical insulation, overcurrent protection, inverter compatibility, and compliance with applicable electrical and installation standards. Nominal battery voltage alone does not establish that a system is safe to install or handle.
What Is Potential Difference?
Voltage is often called the potential difference. This term highlights that voltage measures the difference in electric potential energy between two points. Think of it like water in a tank: the potential difference is like the difference in water levels between two tanks, which drives water flow. Similarly, electrons flow from a high potential point to a lower potential point.
In energy storage systems, the potential difference between battery terminals dictates how much energy can be delivered to your home or business loads.
How to Measure Voltage
Measuring voltage is straightforward with the right tools:
- Digital Multimeter (DMM): This common tool measures AC or DC voltage across two points.
- Oscilloscope: For more advanced applications, such as checking waveforms in inverter outputs or solar ene
- Voltage Sensors in Battery Systems: Modern home and industrial batteries often include built-in voltage monitoring. For example, smart LiFePO4 batteries provide real-time voltage data for efficient energy management.
Step-By-Step Example
To measure the voltage of a home battery:
- Turn off the inverter or load.
- Connect the multimeter probes to the positive and negative terminals.
- Read the voltage display. A fully charged 48V battery might read slightly above 50 V DC.
- Compare with manufacturer specifications for safe operation.
Tip for home battery systems: Always ensure the battery is disconnected from sensitive devices while measuring voltage to avoid accidental short circuits or damage.

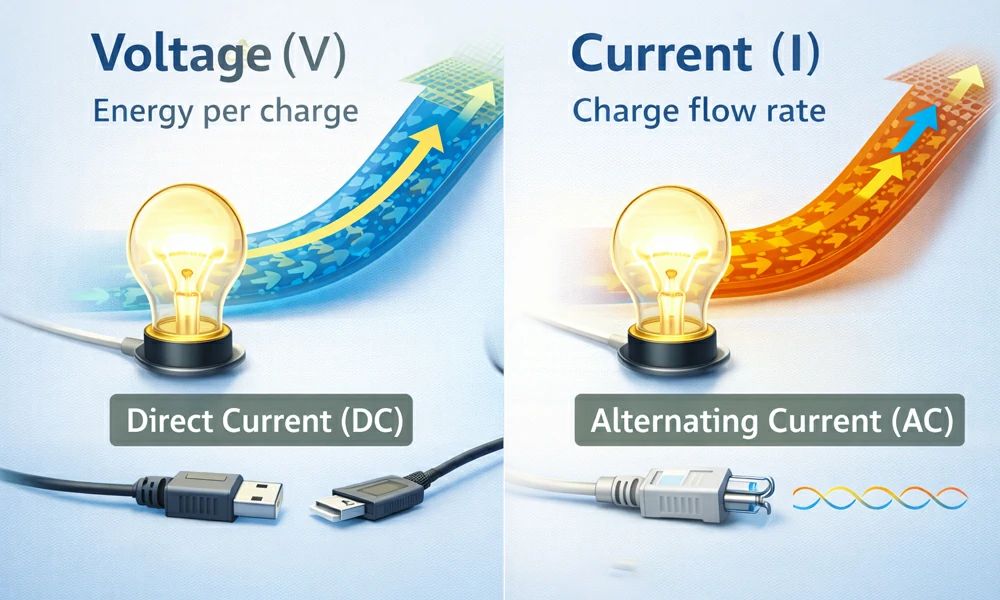

Difference Between Direct and Alternating Current
Voltage also differs depending on whether the current is direct (DC) or alternating (AC):
| Type | Voltage Characteristics | Applications |
|---|---|---|
| DC (Direct Current) | Constant polarity, voltage remains steady | Home batteries, solar panels, electric vehicles |
| AC (Alternating Current) | Polarity reverses periodically, typically 50/60 Hz | Household outlets, grid electricity, commercial storage inverters |
Most home battery systems store DC power. To use this energy with AC appliances, the battery connects to an inverter that converts DC to AC. Similarly, commercial storage systems use AC for grid integration but store energy as DC internally for efficiency.
Voltage in Energy Storage Systems
Voltage plays a critical role in energy storage:
- Residential Home Batteries – Typical voltages range from 48V. Proper voltage ensures appliances like refrigerators, lights, and EV chargers receive stable power.
- Commercial and Industrial Cabinets – Voltages can reach 1000V, optimized for higher power output, efficiency, and integration with solar farms or microgrids.
- Battery Safety – Voltage monitoring prevents overcharge, over-discharge, and thermal runaway in lithium-ion batteries.
- Energy Management Systems (EMS) – Voltage data allows intelligent distribution of electricity, ensuring backup loads are prioritized and solar generation is maximized.
Practical Example: Voltage in a Solar Battery System
Consider a 20kWh battery system with a nominal voltage of 48V.
- Nominal energy capacity: 20kWh (20,000Wh)
- Nominal battery voltage: 48V
- Equivalent battery capacity: 20,000Wh ÷ 48V ≈ 416.7Ah
The 416.7Ah figure represents battery capacity, not the instantaneous discharge current.
For example, if a compatible inverter delivers 5,000W and operates at an assumed 90% efficiency, the approximate DC battery current at 48V is:
DC Current = 5,000W ÷ (48V × 0.90) ≈ 115.7A
Actual current changes with battery voltage, inverter efficiency, and load demand. The maximum permitted discharge current must remain within the battery, BMS, inverter, and wiring limits.

823V High-Voltage Energy Storage System Case Study
Avepower 522.5 kWh high-voltage energy storage system. Using MB31 cells evolved into fully integrated packs, the 832 V DC, 628 Ah system features smart BMS with multi-level protections and IP20 cabinets, providing reliable.
Safety Considerations with Voltage
Voltage, especially high voltage, can be dangerous. Here are some key safety tips:
- Never touch live wires – even household voltage can cause serious injury.
- Use proper insulation – protect against accidental contact.
- Follow manufacturer guidelines – especially with batteries and inverters.
- Install circuit protection – fuses and breakers prevent accidents.
For energy storage systems, manufacturers like Avepower implement multiple layers of protection, including voltage cut-off, thermal monitoring, and smart BMS to ensure safe operation.
Conclusion
Voltage is a fundamental aspect of electricity, acting as the driving force behind current flow. From household appliances to large-scale energy storage systems, understanding voltage helps optimize performance, safety, and efficiency. By bridging classical physics concepts with modern energy storage applications, voltage remains a key player in powering our homes, businesses, and the renewable energy revolution.
FAQ
The term voltage honors Italian physicist Alessandro Volta, inventor of the voltaic pile, the precursor to modern batteries.
Potential difference is another term for voltage. It represents the energy difference per unit charge between two points in a circuit, driving the flow of electricity.
Residential batteries often operate around 48V DC, while commercial rack-mounted systems may range from 400–600V DC to efficiently handle larger energy loads.
No. Electricity is a broad term that can refer to electric energy, current flow, or power systems. Voltage is only one part of electricity—it describes the potential difference that can drive current.
Voltage is the potential difference (the push). Current is the flow rate of charge (how much charge moves per second). Voltage can exist even when current is zero (for example, a battery not connected to anything).
Because power is roughly P = V × I. If power stays the same and voltage increases, the required current decreases. This is one reason power grids transmit electricity at high voltage to reduce losses.
In many standards, extra-low voltage systems are often treated as safer (for example, around ≤50V AC or ≤120V ripple-free DC). However, “safer” does not mean “risk-free,” especially in wet environments.
Yes. Potential difference is the formal physics term for voltage. It describes the energy change per unit charge between two points.
Set the meter to AC or DC voltage, connect the leads to COM and V, and place the probes in parallel across the two points you want to measure (for example, across a battery’s terminals).
DC voltage has a constant polarity (positive and negative stay the same direction), like a battery. AC voltage changes polarity back and forth over time, like household mains electricity.
