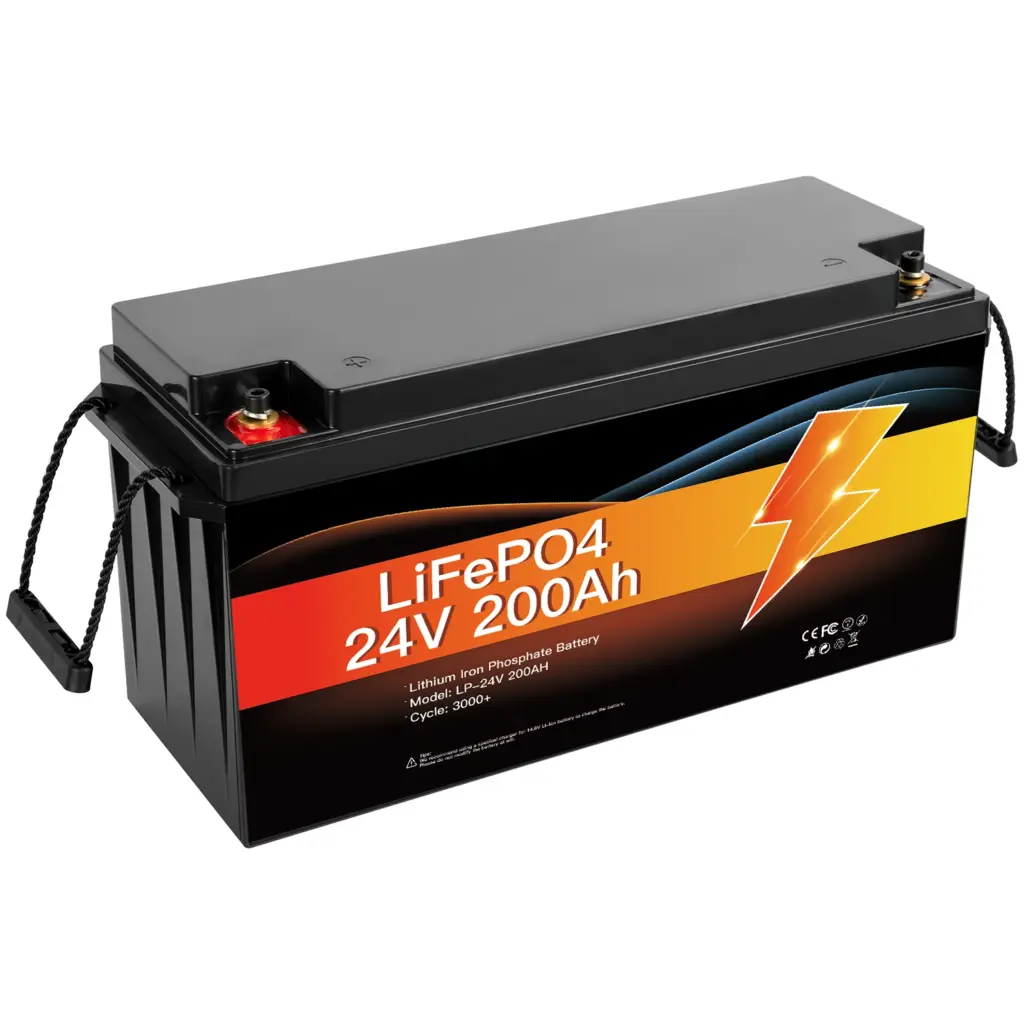

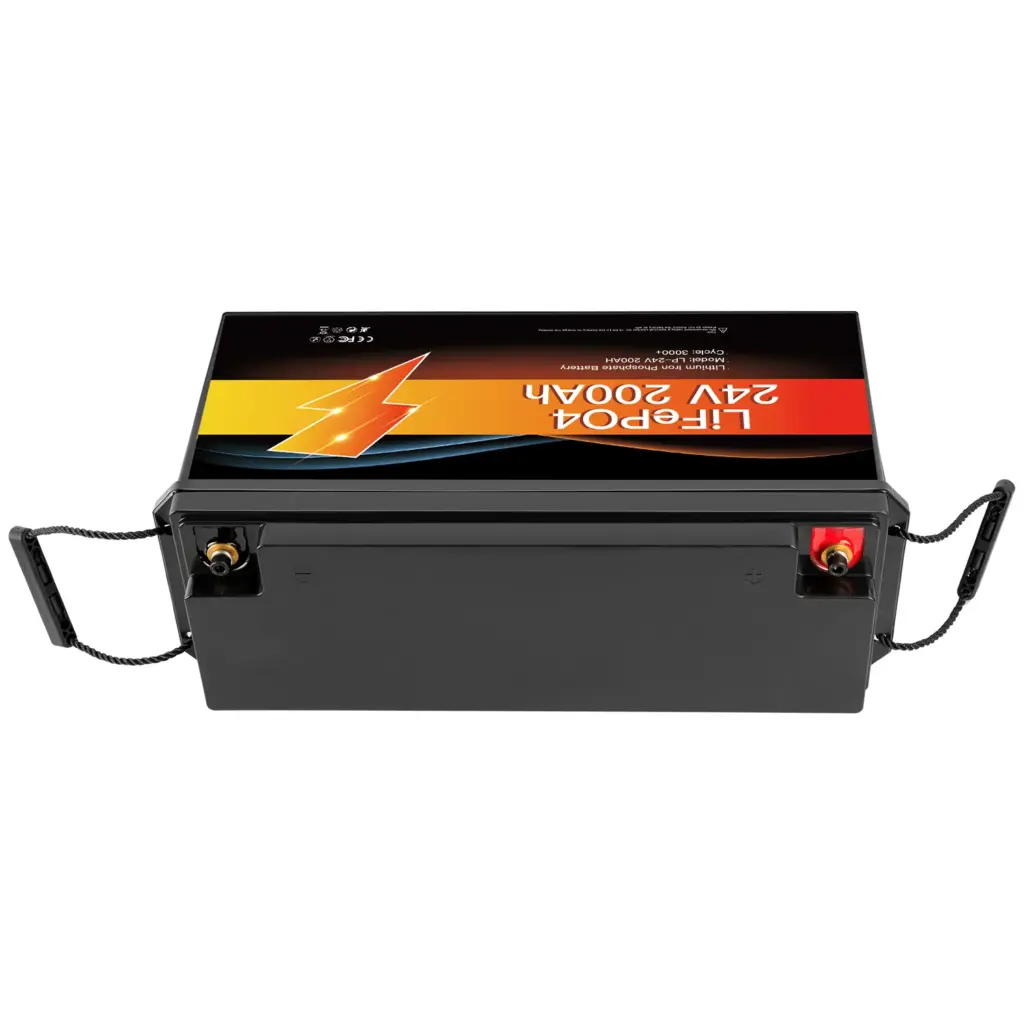

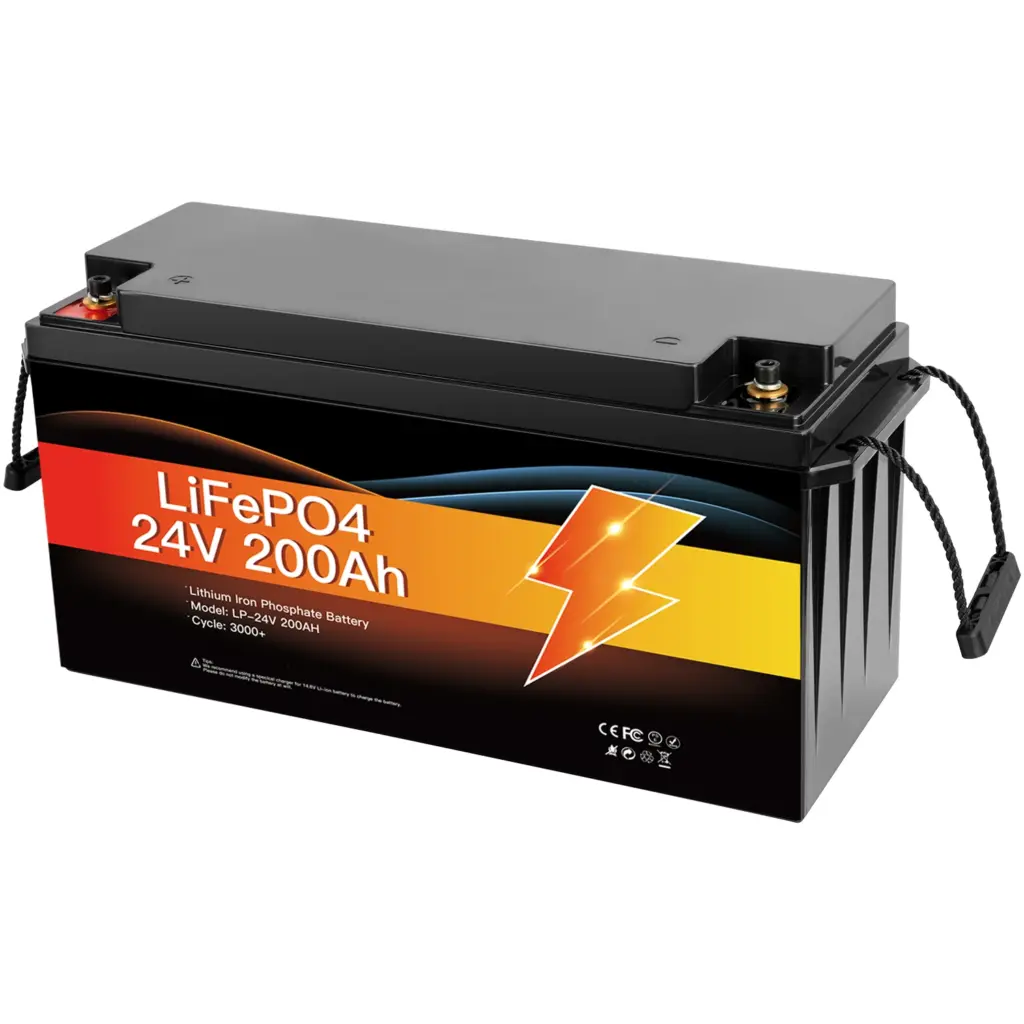

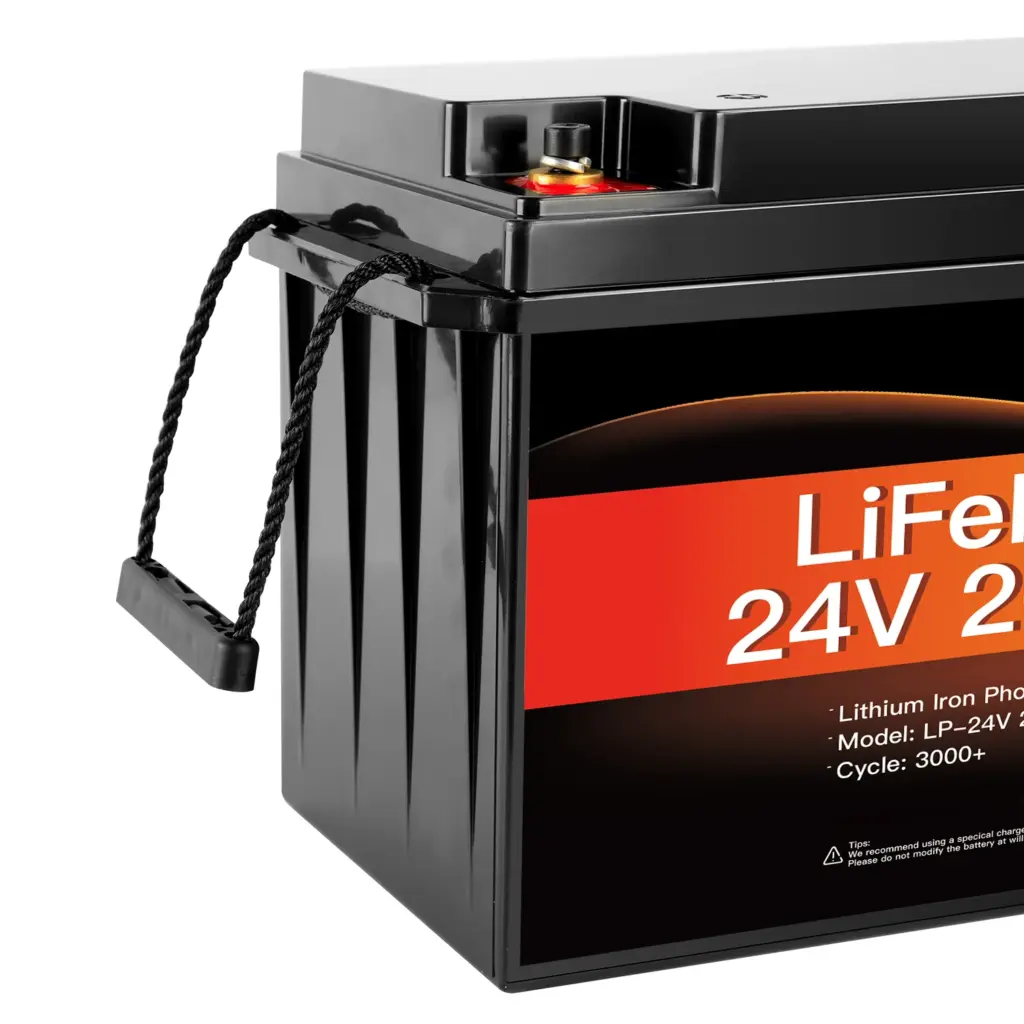

Avepower 24V 200Ah LiFePO4 Battery
The Avepower 24V 200Ah LiFePO4 battery is lightweight—only 1/3 the weight of a comparable lead-acid battery—and features A-grade cells with over 4000 deep cycles, ensuring a lifespan of more than 10 years.
Featuring automatic Bluetooth 5.0 connection, this smart system allows full control and monitoring of your battery. Easily manage discharge and power-off functions while tracking real-time status, including SOC, charge/discharge/idle state, voltage, current, power, remaining capacity, battery temperature, and cycle life.
- Inverter compatible
- RS485 / RS232 / CAN communication
- Supports up to 16 units in parallel
- 5120Wh energy, 5120W output
- 4000+ cycles @100% DOD
- Clean, non-toxic, maintenance-free
- Not for engine starting
Certificate: CE | CB | MSDS | UN38.3
- Bluetooth 5.0
- 10X Charging Efficiency
- IP65 Level Water Proof
- 4000+ cycles@100% DOD
Safe & Reliable 24V 200Ah LiFePO4 Battery
The Avepower 24V 200Ah LiFePO4 battery features premium A-grade cells for outstanding performance and reliability. It replaces four conventional 12V 200Ah batteries, offering 8 times the cycle life and 3 times the overall lifespan, all while taking up significantly less space and weight. UL, CE, RoHS, and UN38.3 certified, this LiFePO4 lithium battery provides high energy density, compact design, lighter weight, powerful output, and exceptional stability.

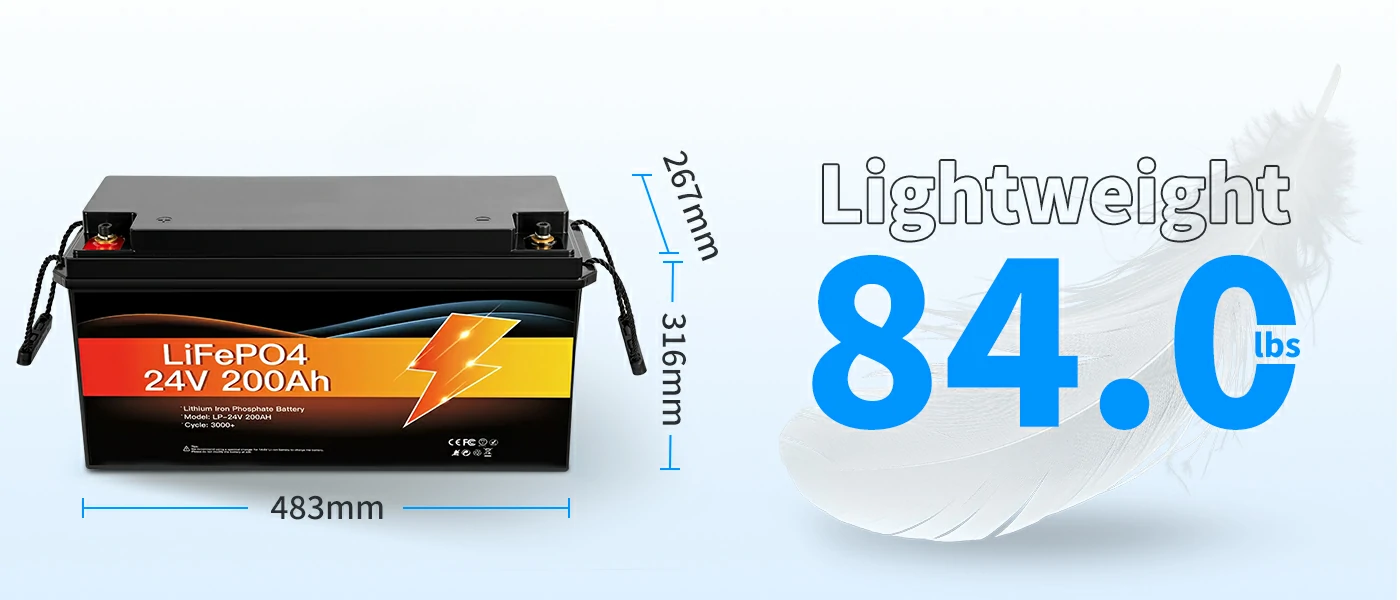

Lightweight
The Avepower 24V 200Ah LiFePO4 battery weighs only 84 Ibs—just one-third the weight of two 12V 200Ah lead-acid batteries. Another key advantage is its simple wiring: there’s no need to connect four 12V 100Ah batteries in series or parallel to achieve a 24V 200Ah system.
Extended Lifespan for Outstanding Value
The Avepower 24V 200Ah lithium battery delivers over 4,000 charge cycles—more than eight times that of traditional lead-acid batteries. Designed for 100% state of charge (SOC) and depth of discharge (DoD), it boasts a lifespan exceeding 10 years, tripling the longevity of lead-acid alternatives. Combining durability with competitive pricing, the Avepower 24V 200Ah LiFePO4 battery offers unmatched value and reliable performance.

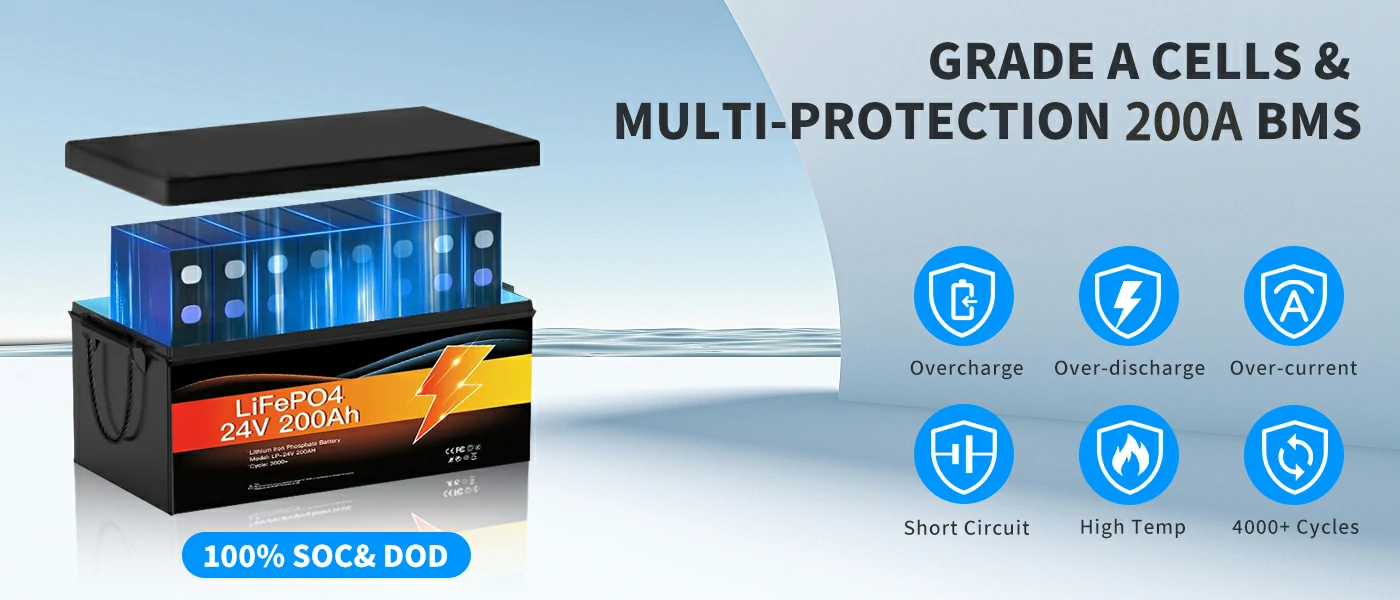

200A BMS Ensures Battery Safety and Longevity
The built-in 200A Battery Management System (BMS) in the 24V 200Ah LiFePO4 battery safeguards it against potential risks during long-term use. This reliable BMS provides protection against overvoltage, undervoltage, overheating, overcurrent, and short circuits. Wherever and whenever you use it, you can have peace of mind knowing your battery is secure.
Seamless Bluetooth Connectivity
Effortlessly connect your battery to your smartphone via Bluetooth to access real-time data on voltage, current, state of charge, temperature, and overall battery health. This smart monitoring capability allows you to stay informed and in control of your power usage anytime, anywhere, enhancing both convenience and peace of mind.

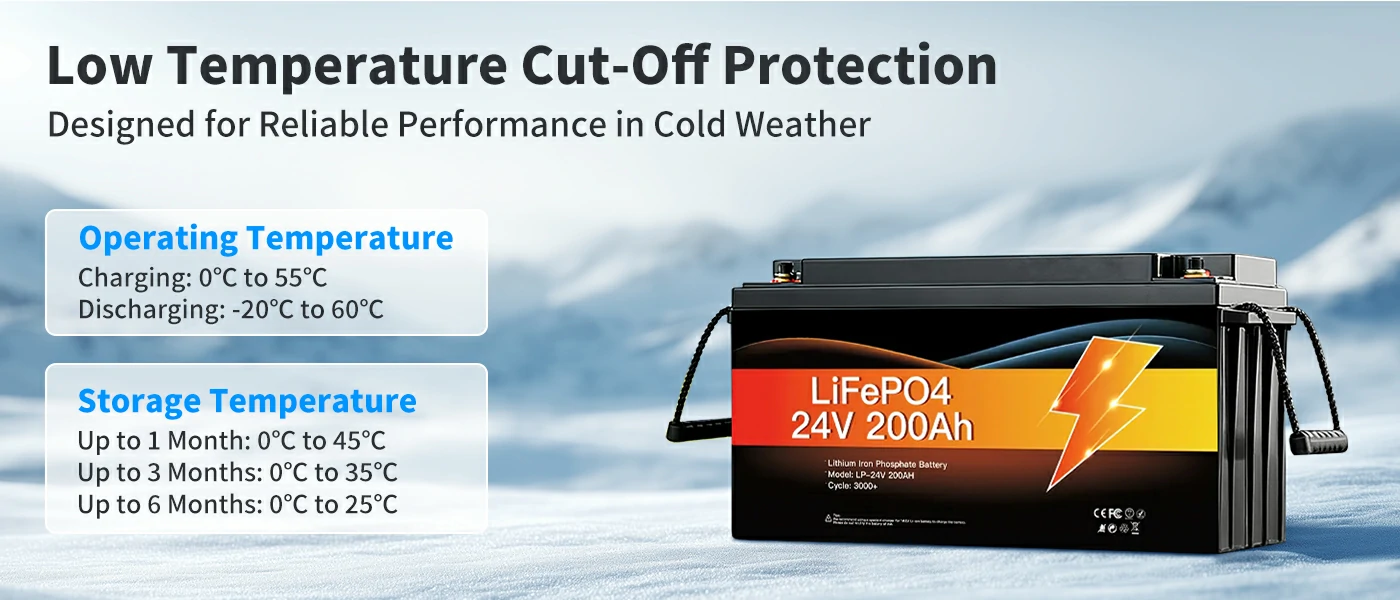

Low-Temperature Charge and Discharge Protection
The Avepower 24V 200Ah smart lithium battery features intelligent low-temperature protection to safeguard your investment. Charging is enabled within 0°C to 55°C, while discharging operates safely between -20°C and 60°C. This ensures optimal battery performance and longevity even in harsh temperature conditions.
Versatile 24V 200Ah LiFePO4 Battery
The Avepower 24V 200Ah LiFePO4 battery provides reliable power for off-grid systems, solar setups, and marine use.
Product Specifications – Avepower 24V 200Ah LiFePO4 Battery
| Items | Value |
|---|---|
|
Pack Style |
8S2P |
|
Nominal Voltage |
24V |
|
Nominal Capacity |
200Ah |
|
Min Capacity |
200Ah |
|
Rated Power |
5120Wh |
|
Charging Voltage |
29.2V |
|
Working Voltage |
20V～29.2V |
|
Charging Mode |
CC-CV |
|
Internal Resistance |
≤100mΩ |
|
Dimension L*W*H/mm |
316*483*267 mm |
|
Approx. Weight |
84 Ibs |
FAQs About 24V 200Ah LiFePO4 Battery
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
Avepower 24V 200Ah LiFePO4 batteries offer over 4000 cycles at 100% DOD, which translates to more than 10 years of typical use. Proper charging and storage can further extend battery life.
Yes. LiFePO4 (Lithium Iron Phosphate) chemistry is inherently stable and non-toxic. Each battery includes a built-in 200A BMS that protects against overcharge, over-discharge, overcurrent, overheating, and short circuits, ensuring safe operation even in demanding environments.
No. The 24V 200Ah LiFePO4 battery is designed strictly for energy storage applications such as solar, RV, marine, and backup systems. It is not suitable for starting engines or other high current-start applications.
Using a 24V 10A charger, the battery takes around 10 hours to fully charge. With a 24V 20A charger, charging time reduces to approximately 5 hours. Actual times may vary depending on environmental conditions.
Yes. The battery supports multiple charging methods including LiFePO4 smart chargers, solar panels, AC generators, or standard generators. Recommended charge voltage is 29.2V, and current should be set according to the battery’s capacity.
