Avepower 48V 100Ah 5kWh Wall Mounted LiFePO4 Battery Pack
The Avepower 48V 100Ah wall mounted LiFePO4 battery is designed for residential solar storage, backup power and off-grid energy systems. With a compact wall-mounted structure, 5kWh energy capacity, it helps homeowners, installers and energy storage partners build cleaner, safer and more space-saving battery systems.
Built with a 16S1P battery pack structure and intelligent BMS protection, this battery supports stable charging and discharging, RS485/RS232 communication and practical bottom wiring design. It is suitable for home solar systems, essential-load backup, small energy storage projects and OEM/ODM battery applications.
- Compact wall mounted battery design
- Built with 100Ah LiFePO4 cells
- 16S1P battery pack configuration
- Up to 100A continuous charge current
- Up to 100A continuous discharge current
- Smart BMS protection system
- RS485 and RS232 communication
- Bottom input/output wiring design
- OEM and ODM customization support
Certificate: CE | CB |RoHS | UN38.3 | FCC
- Support Bluetooth & WIFI
- 100% Customized
- Up to 16 Units in Parallel
- 8000+ cycles@80% DOD
Engineered for Home Solar Storage and Backup Power
The Avepower 48v 100ah lifepo4 battery pack is built for homes that need stable solar energy storage and reliable backup power. It can store energy from solar panels during the day and supply power to essential loads during evening use, peak tariff periods or grid outages.
For residential installers, the 5kWh capacity makes this battery suitable for single-battery backup systems or multi-battery storage projects. For end users, the wall-mounted design helps save floor space while keeping the battery system clean, organized and easy to manage.
Stable Home Power for Everyday Life
Maximize your renewable energy usage with the Avepower 48V 100ah 5kwh home wall-mounted battery. With WiFi-enabled monitoring via a dedicated app, users can track and manage energy usage easily. Supporting DC or AC coupling in grid-tied or off-grid systems, it delivers high energy density of 260Wh/kg with reliable, long-lasting performance. Supports up to 16 batteries in parallel for scalable storage, while the advanced BMS ensures safety and reliability in all applications.

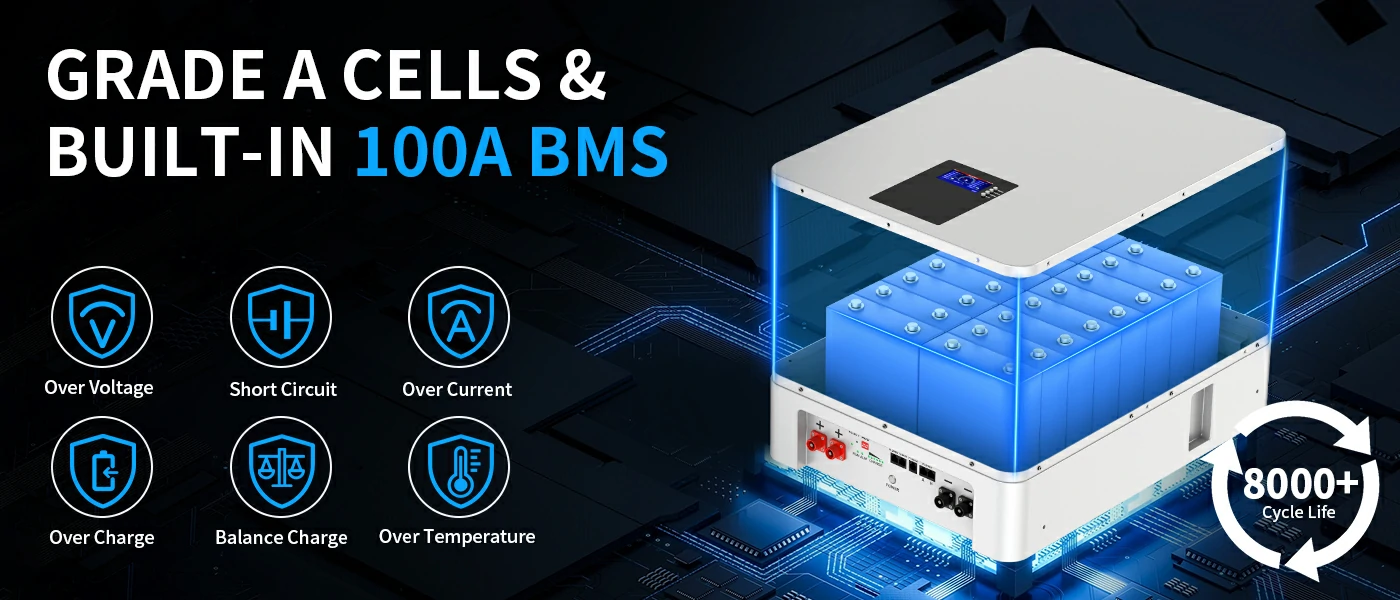

Smart BMS Protection System
The built-in BMS helps protect the battery during daily charging, discharging and standby operation. It supports key protection functions such as over-charge protection, over-discharge protection, charge over-current protection, discharge over-current protection, short-circuit protection, MOS temperature protection, cell temperature protection and environment temperature protection.
The BMS also supports balancing, low-power sleep mode and abnormal cell voltage protection. These protection functions help improve system safety and reduce risks caused by incorrect settings, abnormal loads or harsh operating conditions.

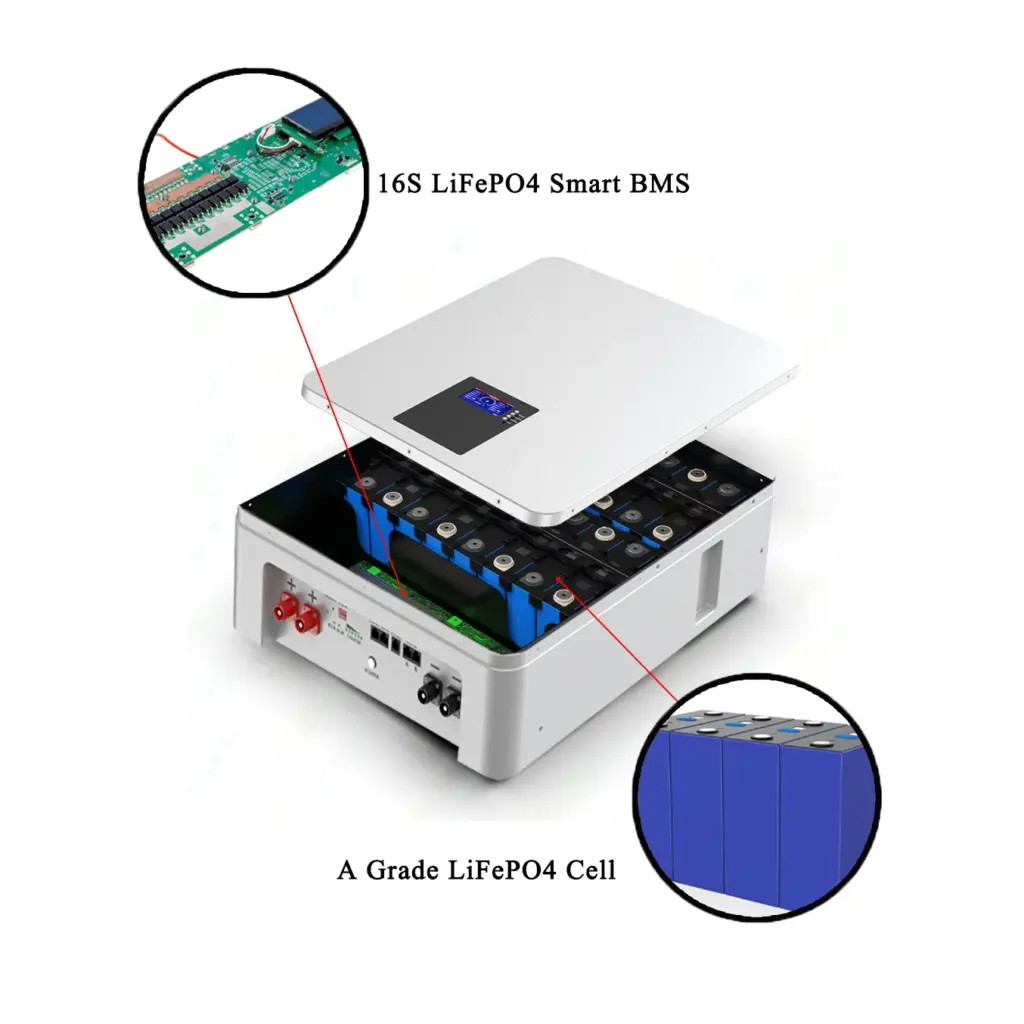

Built with 100Ah LiFePO4 Cells
The 5kwh battery pack is built with 100Ah LiFePO4 cells and uses a 16S1P configuration. LiFePO4 chemistry is widely used in solar energy storage because of its thermal stability, safety performance and suitability for repeated charge and discharge operation.
With a 48V/51.2V nominal voltage and 100Ah rated capacity, the battery provides 5kWh of nominal energy for residential solar systems, backup power systems and low-voltage energy storage projects.

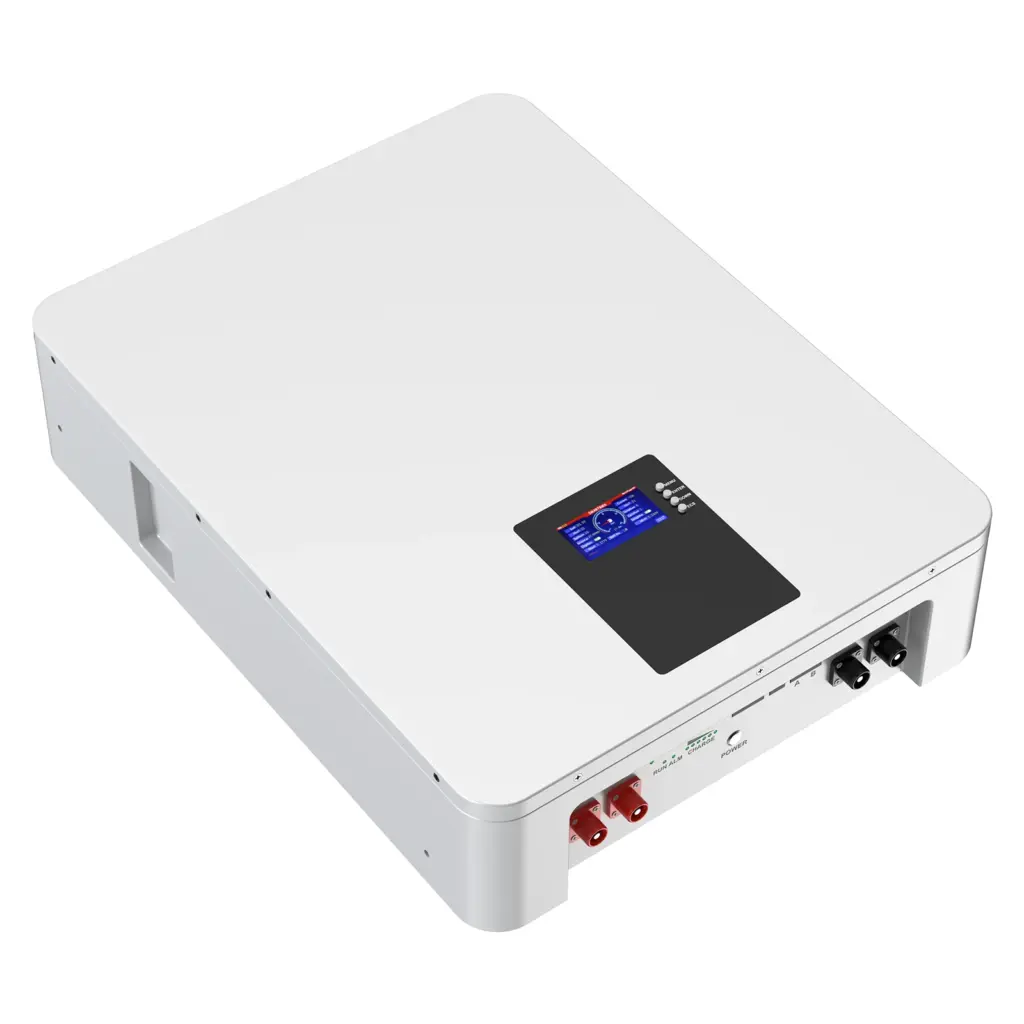

Compact Wall Mounted Battery for Clean Installation
This battery uses a compact wall-mounted cabinet design with a size of W460 × H600 × D140 mm. The slim structure helps reduce floor space usage, making it suitable for garages, indoor utility rooms, equipment rooms and residential energy storage installations.

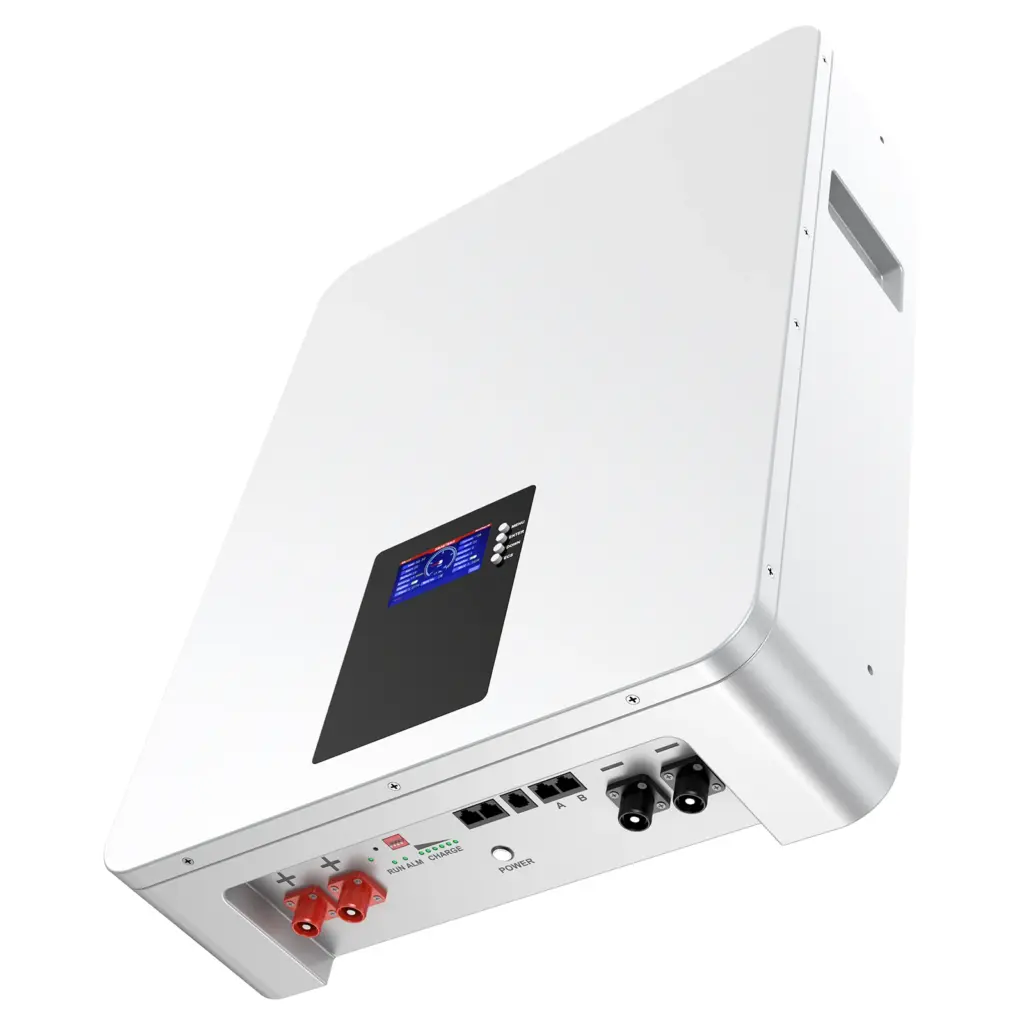

The input/output and wiring ports are arranged at the bottom of the battery, helping installers create a cleaner cable layout during system installation. This design is especially useful for projects that require neat wiring, limited installation space and easy access for inspection or maintenance.
100A Charge and Discharge Performance
The battery supports CC/CV charging mode with a charge limit voltage of 57.6V. It supports up to 100A continuous charge current and up to 100A continuous discharge current, helping the system work with properly matched low-voltage inverters and chargers.
For real project use, inverter power, cable size, breaker selection and charge/discharge current settings should be configured according to the final system design. This helps improve battery safety, system stability and long-term operating performance.
RS485 and RS232 Communication for System Integration
The 5kwh battery supports RS485 and RS232 communication interfaces for battery monitoring, system integration and inverter communication. The RS232 interface uses a 6P6C RJ11 socket, while the RS485 interface uses a 6P6C RJ45 socket.

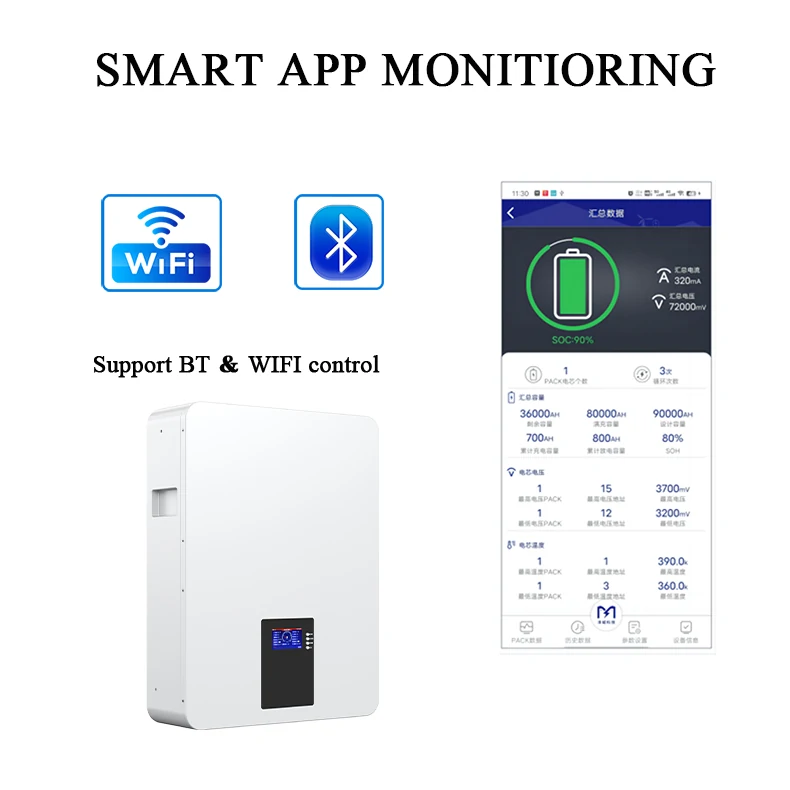

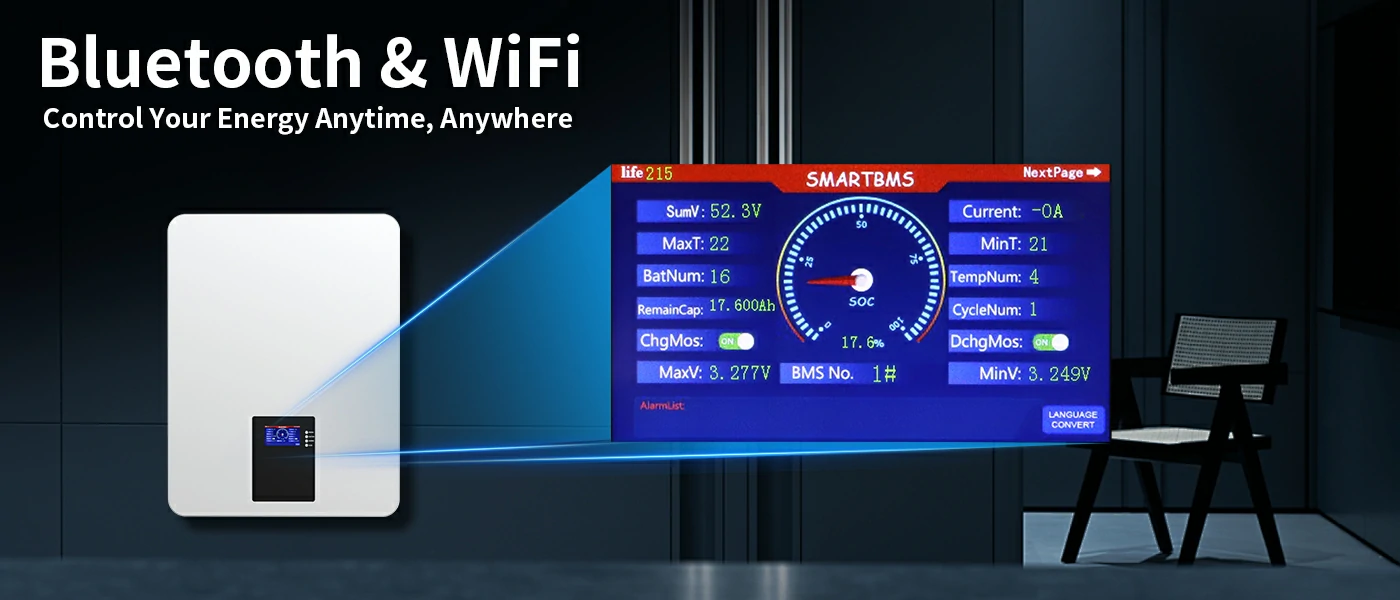

Real-Time Remote Monitoring via Bluetooth & Wi-Fi
With built-in Bluetooth and Wi-Fi, you stay in control of your energy wherever you are. Whether you’re relaxing on the sofa or away from home, you can use your phone to view live battery status, solar production, and household power usage. Switch operating modes, set charge and discharge schedules, and receive instant alerts if anything needs your attention. Simple app pairing and over-the-air updates keep your system smart, efficient, and always ready for the next outage.
3.2-Inch Button Blue Screen for Easy Battery Status Checking
This wall mounted LiFePO4 battery is equipped with a 3.2-inch button blue screen, allowing users and installers to check key battery information directly on the product. The screen can display important operating data such as SOC, voltage, current, cell status, temperature information, cycle data and basic BMS status.
Max 16 Parallel for Scalable Home Energy Storage
The Avepower wall mounted LiFePO4 battery supports flexible parallel expansion for home solar storage and backup power systems. A single battery can be used for basic residential energy storage, while multiple units can be connected in parallel to build a larger capacity system for homes, villas, off-grid projects and small energy storage applications.
With up to 16 units in parallel, the system can be expanded according to the user’s backup time, load demand and solar storage requirements.

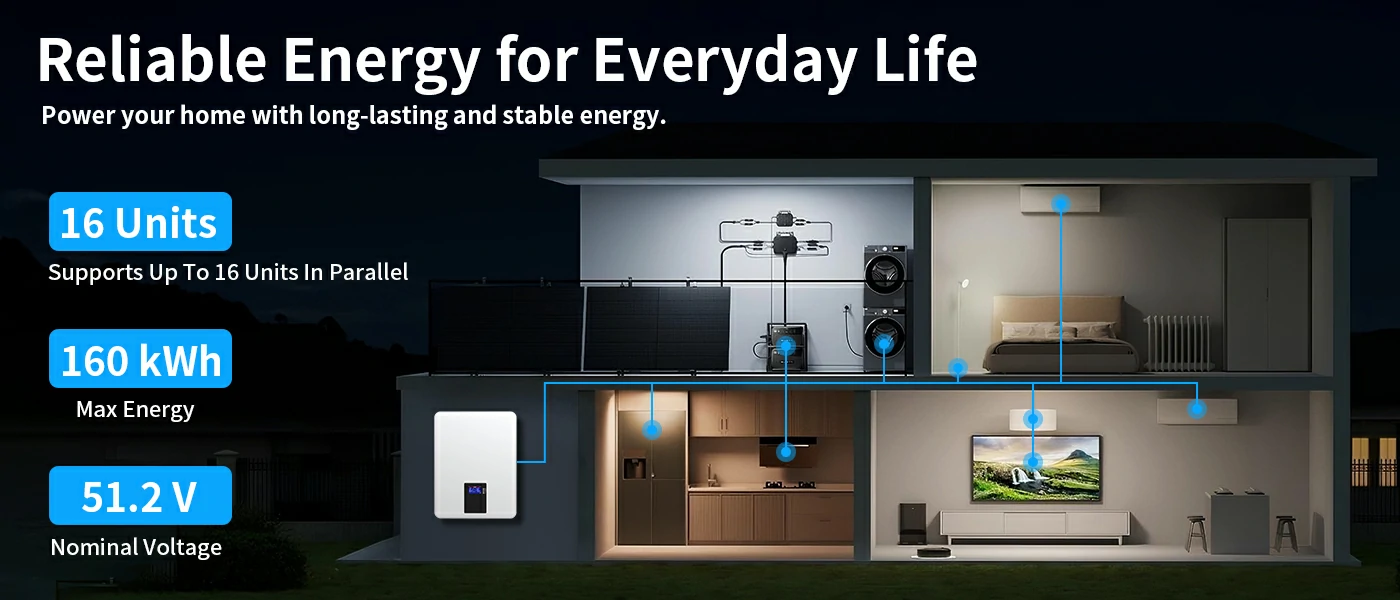

Smart Energy for Modern Homes
The Avepower 5kWh 48V 100Ah wall mounted LiFePO4 battery is designed to support practical home solar storage and backup power needs. It can store solar energy during the day and help supply power to essential household loads during evening use, peak electricity periods or grid outages.
Designed for Stable Operation in Different Conditions
The battery is designed to charge within 0°C to +45°C and discharge within -20°C to +60°C. This allows the battery to support daily residential energy storage use in different climate conditions when installed in a suitable indoor environment.
For storage and transportation, the battery should be kept in a dry, ventilated and protected environment. Long-term storage should avoid direct sunlight, heat sources, mechanical impact and heavy pressure.
Customize Your Wall Mounted Solar Battery
Avepower supports OEM and ODM customization for distributors, installers and energy storage project customers. Customization can include battery appearance, capacity, communication protocol, label design, packaging and project-based energy storage solutions.
Whether you need a standard 5kWh wall mounted battery or a customized low-voltage battery solution for your local market, Avepower can support product development, technical matching and long-term supply cooperation.
Suitable for Homes, Villas and Small Energy Storage Projects
The Avepower 48V 100Ah 5kWh wall mounted battery is suitable for residential solar storage, backup power, off-grid solar systems, villas, apartments, equipment rooms and small energy storage projects. It can help store solar energy, support essential backup loads and improve energy independence for everyday home use.
For distributors, installers and OEM customers, this battery can also be used as a flexible low-voltage battery platform for customized energy storage projects.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
100Ah |
|
Nominal Energy |
5kWh |
|
Charge Current |
100A |
|
Discharge Current |
100A |
|
Charge Mode |
CC-CV |
|
Internal Resistance |
≤120mΩ |
|
Standard Charge Current |
0.2C |
|
Communication |
CAN/ RS485/ RS232 |
|
Cycle Life |
＞ 8000（ @25℃， 80% DOD） |
|
Maximum Paralleling |
16 unit |
|
Designed Life |
10+Years |
Inverter Compatibility
Only some common compatible inverter models are listed here. For the full list or to check a specific model, please visit the Avepower Inverter Compatibility List.
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
For optimal performance during storage:
1 month: 0–45°C
3 months: 0–35°C
6 months: 0–25°C
Proper storage prevents capacity loss and degradation, especially in off-season or seasonal applications where the battery may remain unused for extended periods.
During discharge, it operates safely between -20°C and 55°C, allowing consistent power delivery even in cold or hot environments.
With high-quality LiFePO4 cells, the battery can achieve over 6,000–10,000 cycles at 80% depth of discharge (DOD).
The battery can safely charge at temperatures between 0°C and 55°C. Charging outside this range can affect efficiency or trigger safety protections.
This battery supports CAN, RS485, and RS232, enabling seamless communication with most inverters, BMS monitoring platforms, and smart energy management systems.
