Avepower 48V 314Ah 16kWh Vertical LiFePO4 Battery for Solar Storage
This battery is designed for residential solar, backup and off-grid projects. With a movable vertical design and OEM/ODM support for installers, distributors and project buyers.
- For Solar Storage & Backup
- OEM / ODM Available
- CE | CB | RoHS | UN38.3 | FCC | Test Report
Compatible with supported inverter platforms.
Send us your inverter model for verification.
Need help sizing?
Inverter Model + Required kWh + Country → Free Configuration
- Support Bluetooth & WIFI
- 100% Customized
- Up to 16 Units in Parallel
- 8000+ cycles@80% DOD
Why Partner with Avepower
OEM & ODM Customization
Customized battery designed for your brand, market, and project requirements.
Long Cycle Life
Premium LiFePO4 chemistry with 8,000+ cycles for safe and reliable performance.
Global Certifications
Certified with UN38.3, MSDS, CE, CB, FCC, RoHS, IEC, and UL standards.
Reliable Delivery
20,000㎡ factory with 15 production lines for fast, reliable delivery.
Free Consultation
Professional energy solutions and customized quotations for every project.
High Compatibility
Compatible with leading inverters including Growatt, GoodWe, SMA, Solis, and Deye.
16kWh Solar Battery Built for Real Home Energy Storage
Avepower 16kWh solar battery provides approximately 16.08kWh nominal energy for home solar storage, backup power, off-grid, and small commercial projects. Multiple units can be connected in parallel to build a scalable 48V-class battery bank.

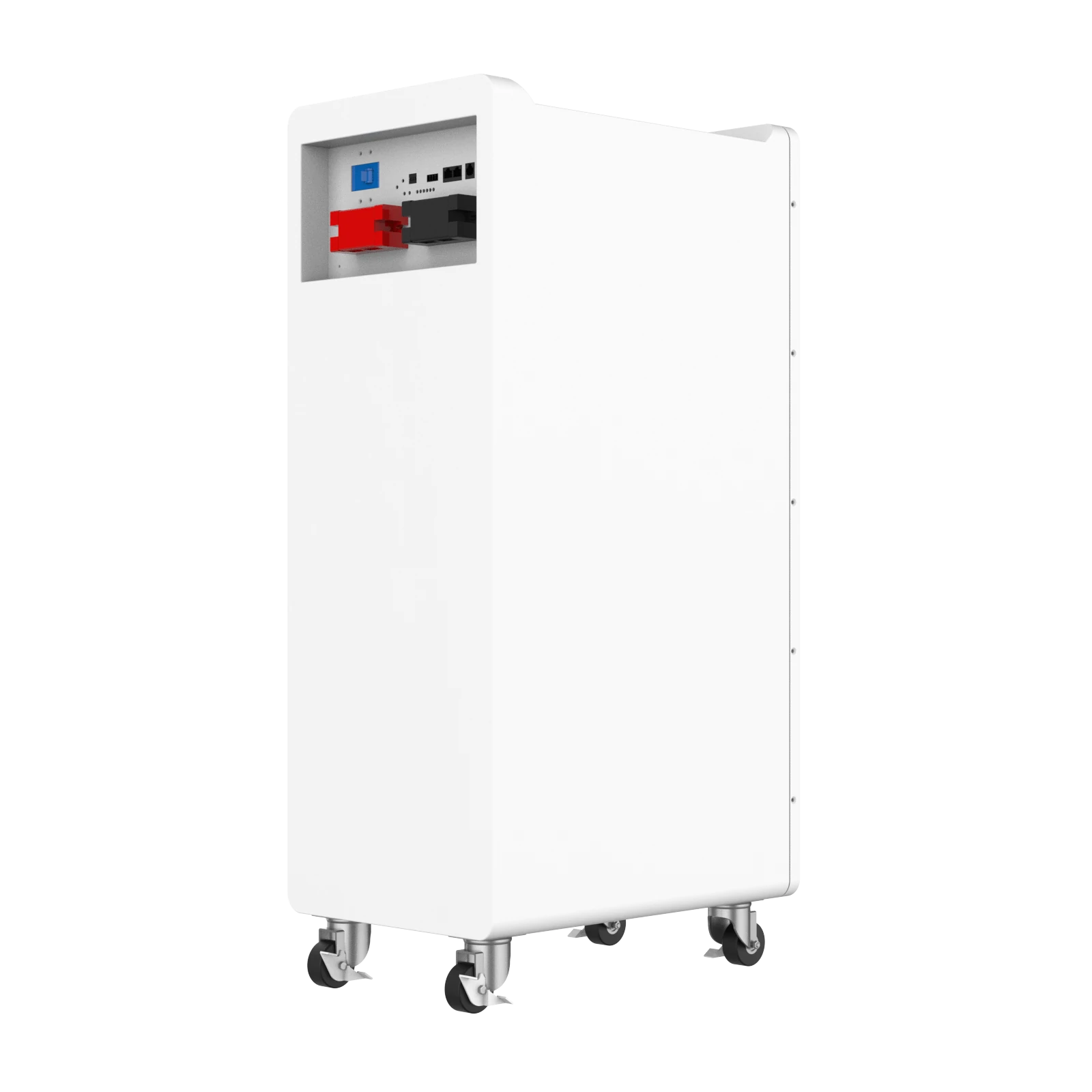

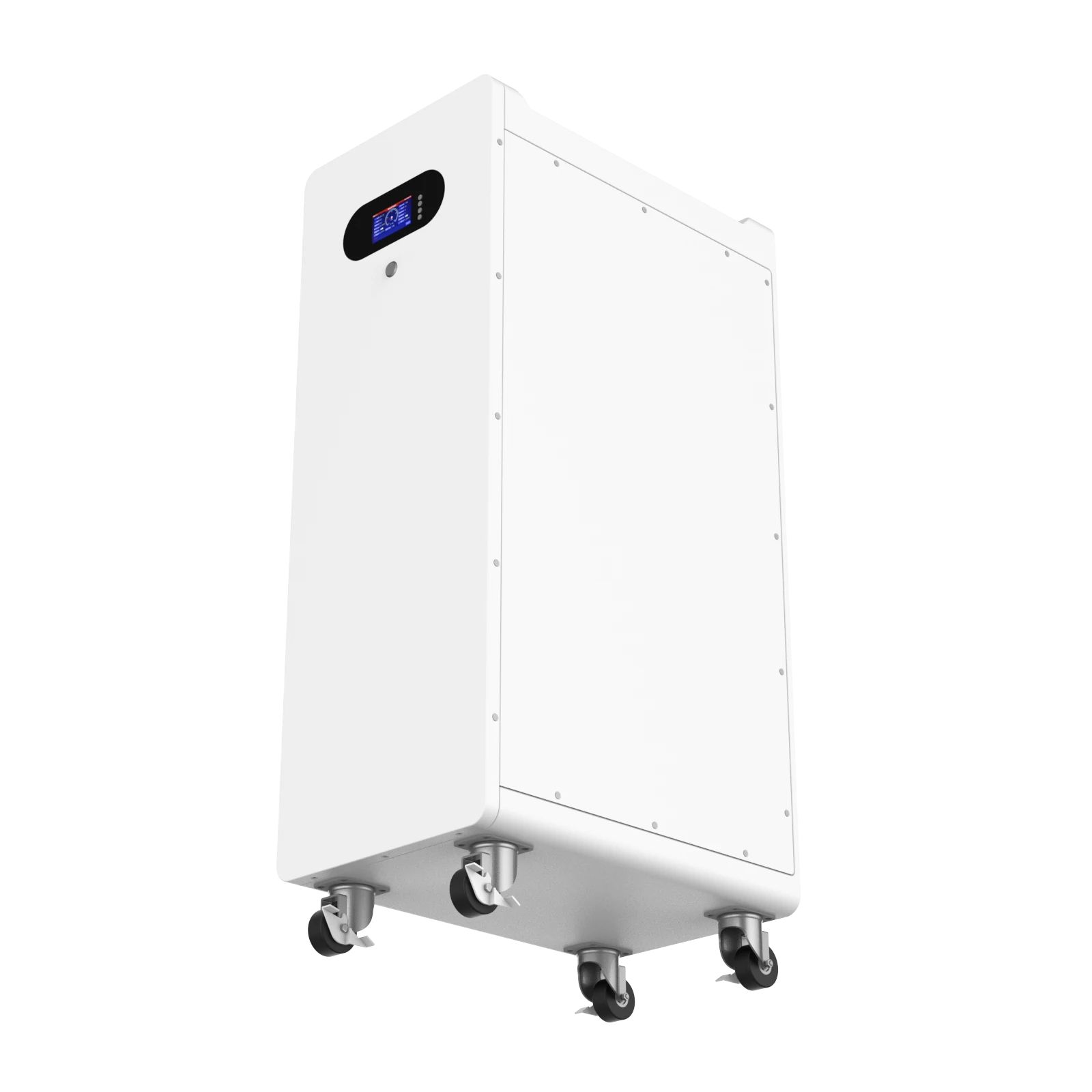

Vertical Design with Wheels for Easier Installation
The cabinet is designed for floor-standing indoor placement, with mobility features that simplify handling on site. The enclosure includes wheels for movement, a 200A 1P air switch, and a 200A fence through-type terminal structure for practical wiring and service access. The unit also includes a φ16mm round soft switch (without light) plus a light panel board for clear status indication.
200A BMS with Multi-Layer Protection
The built-in JBD 16S 200A BMS provides overcharge, over-discharge, overcurrent, and temperature protection. RS485, RS232, and CAN communication supports inverter integration and system monitoring.
314Ah LiFePO4 Cells for Stable Energy Storage
This 48V-class 16kWh LiFePO4 battery uses 314Ah LFP cells in a 16S1P configuration, providing stable energy storage for hybrid inverters, off-grid systems, and low-voltage solar applications.

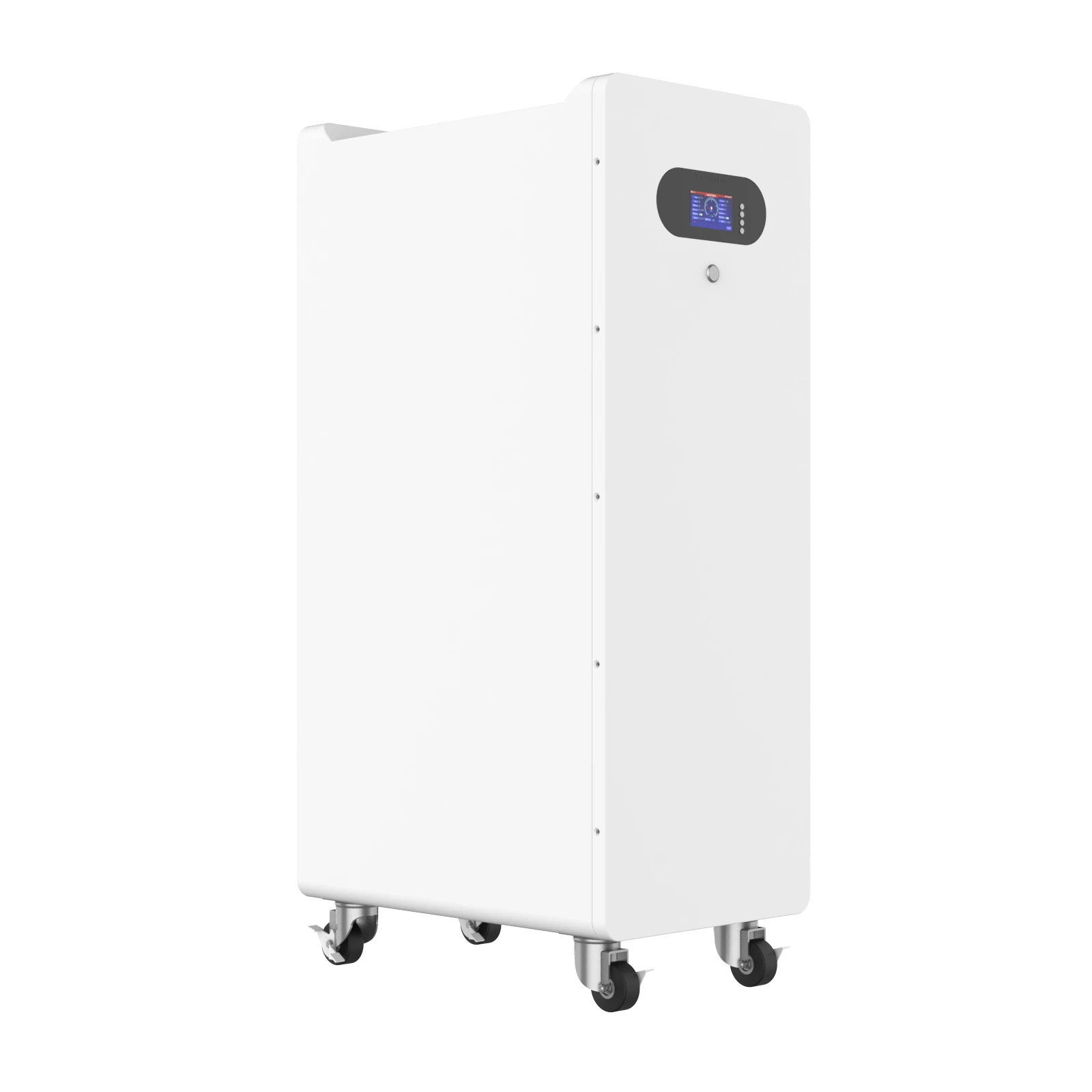

3.2-Inch Button Blue Screen
The front 3.2-inch button blue screen gives users a clear way to check key battery information on site. The battery indicator light board also provides a quick visual reference for battery status during daily operation, maintenance checks or outage backup use.
Bluetooth and WiFi Monitoring for Easier Battery Management
Built-in Bluetooth and Wi-Fi enable easier battery monitoring, helping installers with commissioning and troubleshooting while reducing unnecessary site visits. Homeowners can also check battery status and stored energy conveniently.
CC-CV Charging with up to 140A Max Charge Current
The 16kWh solar battery supports CC-CV charging, with a 56A standard charge current and 140A maximum charge current for compatible solar inverters and chargers.
140A Continuous Discharge and 200A Peak Discharge
The 16kWh solar battery supports 140A continuous discharge and up to 200A for 300 seconds, suitable for home backup, off-grid, and light commercial storage.

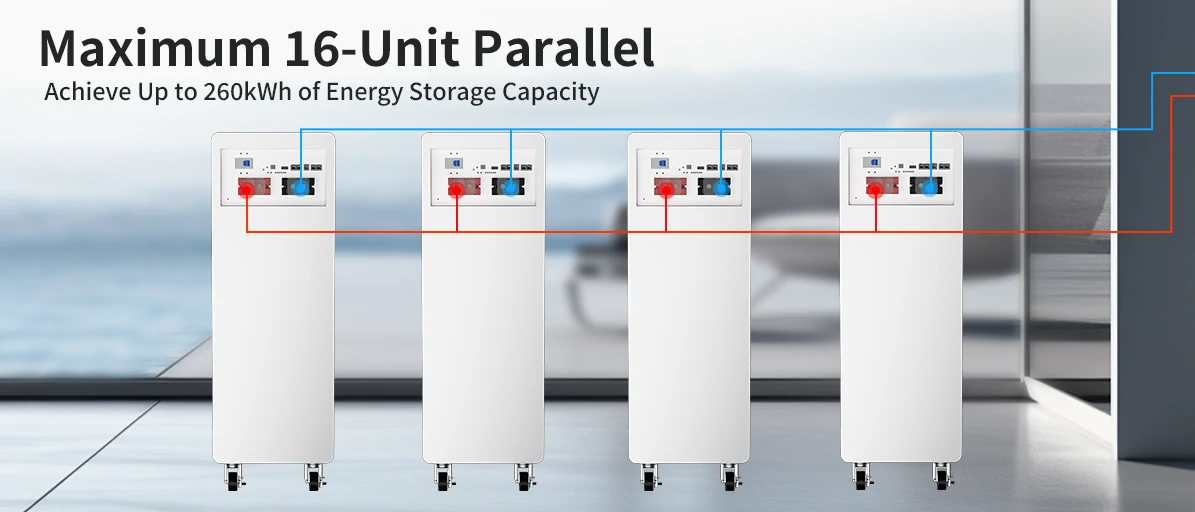

Expandable Battery Bank up to 16 Units in Parallel
The 48V 314Ah battery delivers approximately 16kWh per unit and supports up to 16 units in parallel, scaling to approximately 260kWh for larger residential, off-grid, telecom, farm, and commercial projects.
Built for Practical Installation and Maintenance
The vertical cabinet saves floor space and includes wheels for easier installation and maintenance. It features 200A through terminals, 200A air switch, soft switch, and battery indicator lights.
High Charge/Discharge Capability for Real Home Loads
This vertical battery follows a CC-CV charging mode, with a standard charge current of 100A and maximum charge current up to 200A, supporting faster recharge when PV or grid charging is available. On discharge, it supports 200A continuous output for daily loads and 200A peak discharge for 300 seconds, which is useful for starting loads and short power surges.
Wide Operating Temperature Range
The 48V 314Ah 16kWh LiFePO4 battery supports 0°C–55°C charging and -20°C–60°C discharge, suitable for residential and light commercial energy storage. Store in a clean, dry, and well-ventilated area.
OEM/ODM Customization and Project Support
Avepower supports OEM/ODM delivery for this platform, including branding, UI/label adjustments, functional configuration matching, and system-level integration support. If you want pricing for installer/distributor volume, inverter protocol confirmation, or a recommended system configuration, contact Avepower and share your target market, inverter brand/model, and required total kWh.
Designed for Solar Storage and Backup Power Applications
This 48V 314Ah 16kwh solar battery is suitable for home solar storage, backup power, off-grid systems and small energy storage projects. It can store solar energy during the day and supply power during the evening, peak tariff periods or grid outages.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
314Ah |
|
Nominal Energy |
16kWh |
|
Charge Mode |
CC-CV |
|
Communication |
CAN/ RS485/ RS232 |
|
Charge Current |
100A (Max.140A) |
|
Charge Current |
200A, lasts 300 seconds |
|
Charge Temperature |
0-55 °C |
|
Discharge Temperature |
-20-55 °C |
|
Cycle Life |
＞ 8000（ @25℃， 80% DOD） |
|
Maximum Paralleling |
16 unit |
|
Designed Life |
10+Years |
Inverter Compatibility
Only some common compatible inverter models are listed here. For the full list or to check a specific model, please visit the Avepower Inverter Compatibility List.
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
Yes. It includes a Lipeng 16S 2A active balancing board. Active balancing helps reduce cell-to-cell drift over time, supporting more consistent performance and longevity—especially useful when multiple units are used in parallel.
The cabinet size is 438 × 260 × 825 mm (excluding wheels) and up to 438 × 260 × 902.5 mm (including wheels). Approx. weight is ~120kg. It includes wheels for easier positioning, but installers should plan safe handling, solid flooring, adequate ventilation, and proper cable sizing for high-current operation.
Yes. This model includes Bluetooth & WiFi monitoring. It also has a 3.2-inch button blue screen and SOC indicator lights for quick on-site status checks.
Yes. The BMS supports RS485 / RS232 / CAN communication and can be configured to interface with compatible inverters for monitoring and control (depending on inverter protocol requirements).
