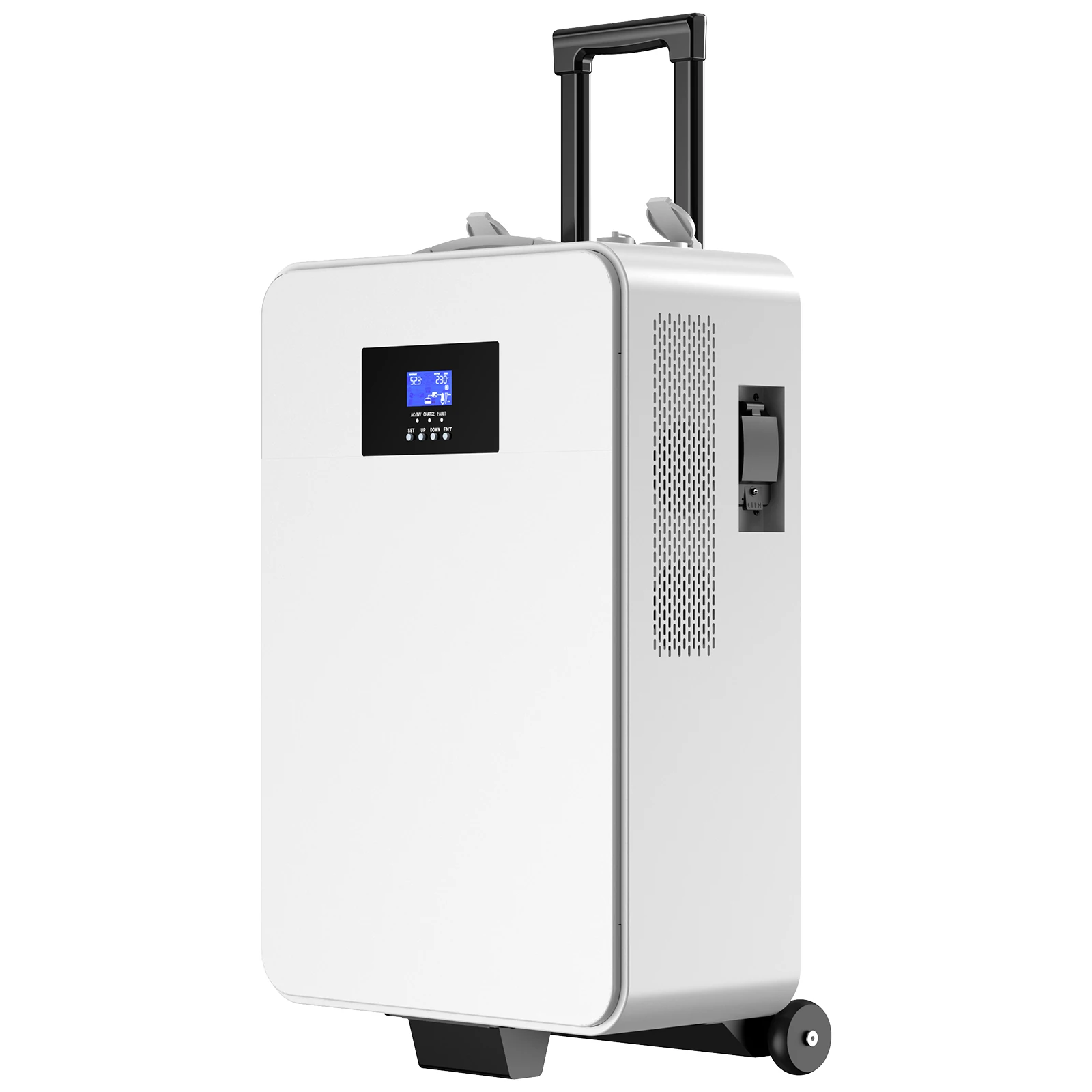

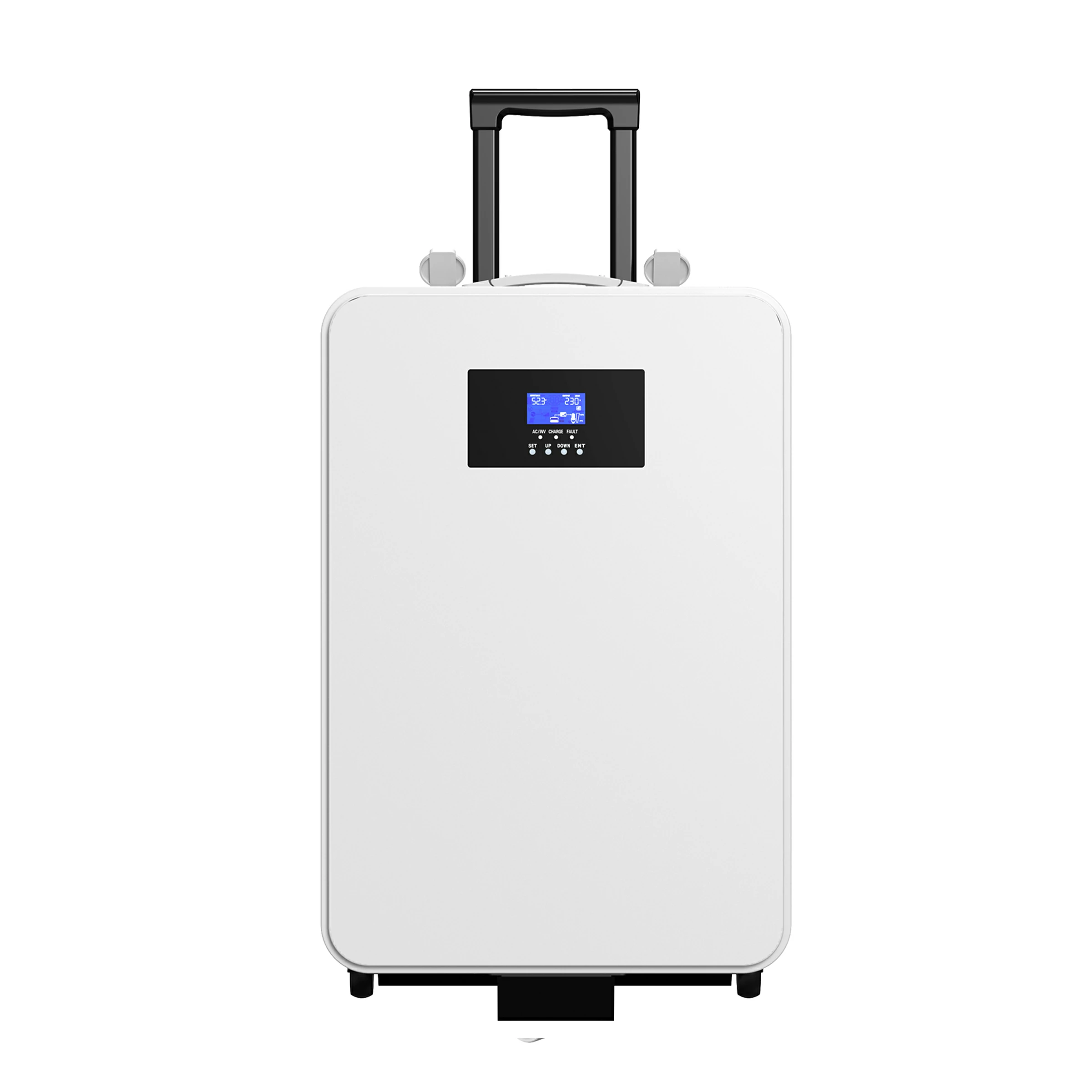

Avepower 5kWh 48V 100Ah Portable Lithium Battery with Solar Inverte
This is an all-in-one portable power solution that combines a 5kWh LiFePO4 (LFP) battery, pure sine wave inverter, and MPPT solar charge controller in one compact cabinet with wheels.
Designed for home backup, mobile work sites, outdoor operations, and emergency power, it delivers stable 230Vac output with flexible charging from solar (PV) or AC grid/generator.
5kWh LiFePO4 battery (48V nominal), safe chemistry and stable output
Two power options: 3000W or 5000W
Pure sine wave 230Vac for sensitive electronics and appliances
PV + AC dual charging: MPPT solar charging and adjustable AC charge current
Multi-purpose sockets ×2 for quick plug-and-play power distribution
Moveable cabinet design: wheels, compact footprint, easy deployment
Monitoring & communication: WiFi standard, RS485 optional
Forced air cooling (fan) for reliable operation in tough environments
- Built in Solar Inverte
- 100% Customized
- Plug-in Terminal Design
- 8000+ cycles@80% DOD

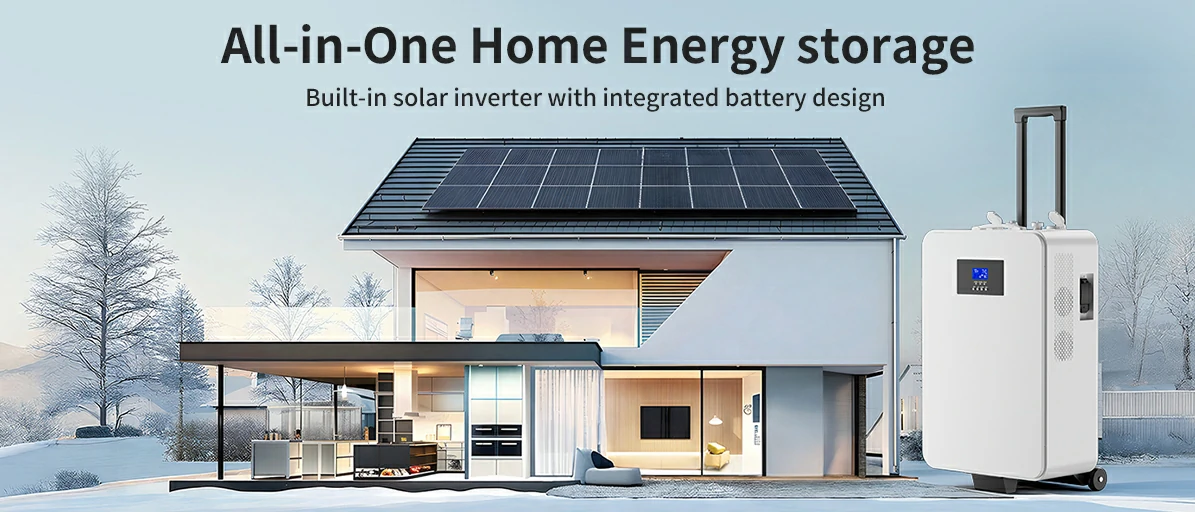

5kWh Moveable Energy System for Backup and Mobile Power
Integrates 5kwh battery + inverter + MPPT into one unit, reducing installation complexity and wiring time. Compared with traditional “battery + inverter + controller” setups, it delivers a cleaner, faster deployment experience—ideal for installers, distributors, and project customers who need portable, reliable power.
Flexible Backup Power
The Avepower 5kWh portable battery system uses lithium-ion (LiFePO4) chemistry for improved thermal stability and longer service life. It provides stable charging and discharging performance and delivers pure sine wave AC output (230Vac, 50/60Hz) to ensure safe and reliable operation for sensitive electronics such as computers, networking equipment, home medical devices, and modern appliances. The system includes two multi-purpose AC outlets, with low voltage harmonic distortion (VTHD < 3%) for clean and stable power output.

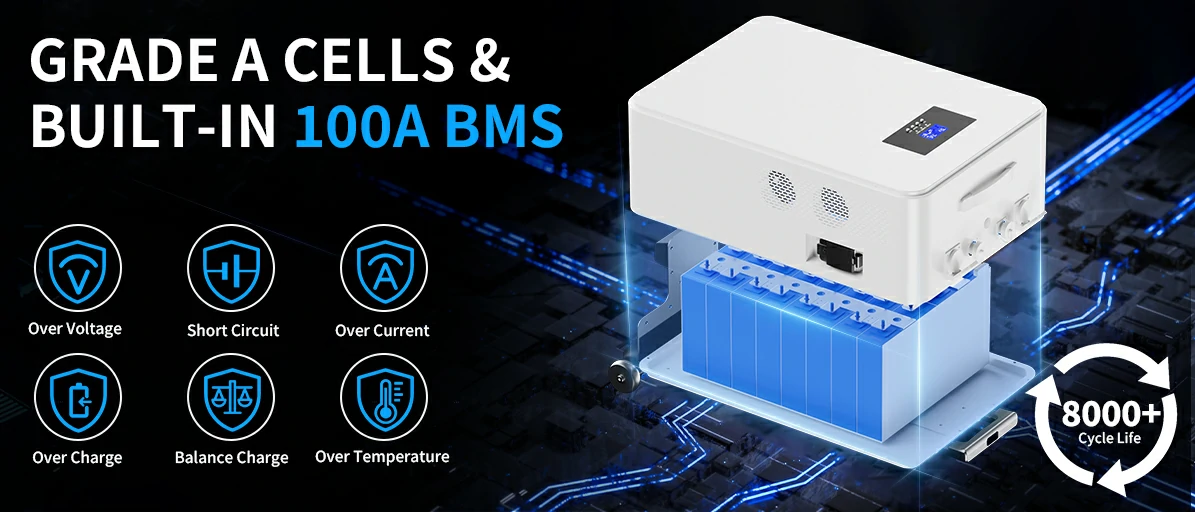

Grade A LiFePO4 Cells with 100A Smart BMS
Built with Grade A LiFePO4 cells and a built in 100A smart BMS, the system is designed for long term reliability and daily cycling. With up to 8000 cycles depending on operating conditions, it delivers stable performance while the BMS provides multi layer protection against overcharge overdischarge overcurrent and short circuits for safer energy storage.

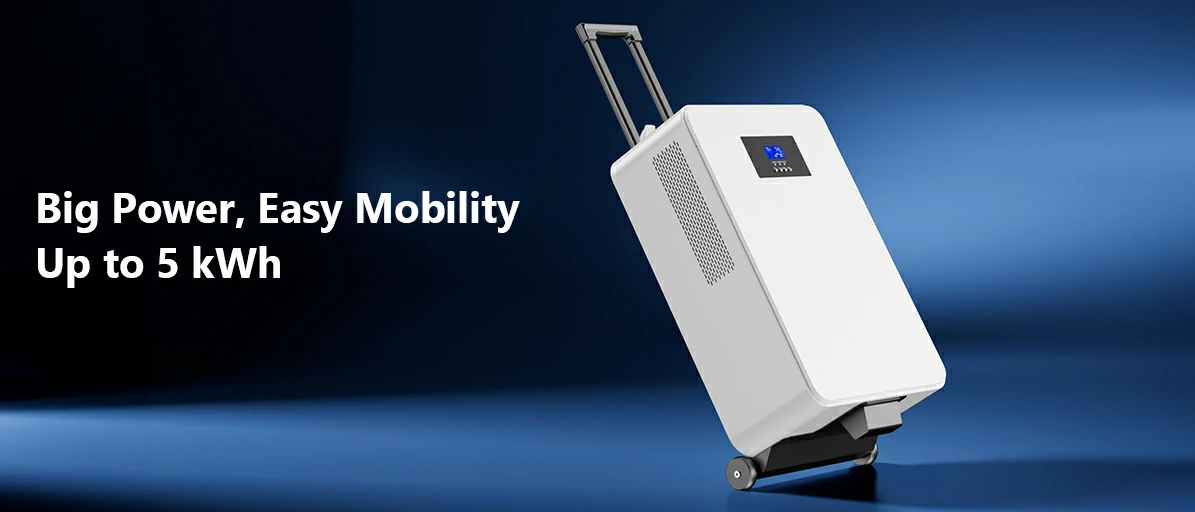

5kWh Storage 5kW Output Built for Mobility
Store up to 5kWh, charge from solar PV or the grid, and power your loads with stable pure sine wave output. When your needs change, just move it to another room, site, or event without complex installation.

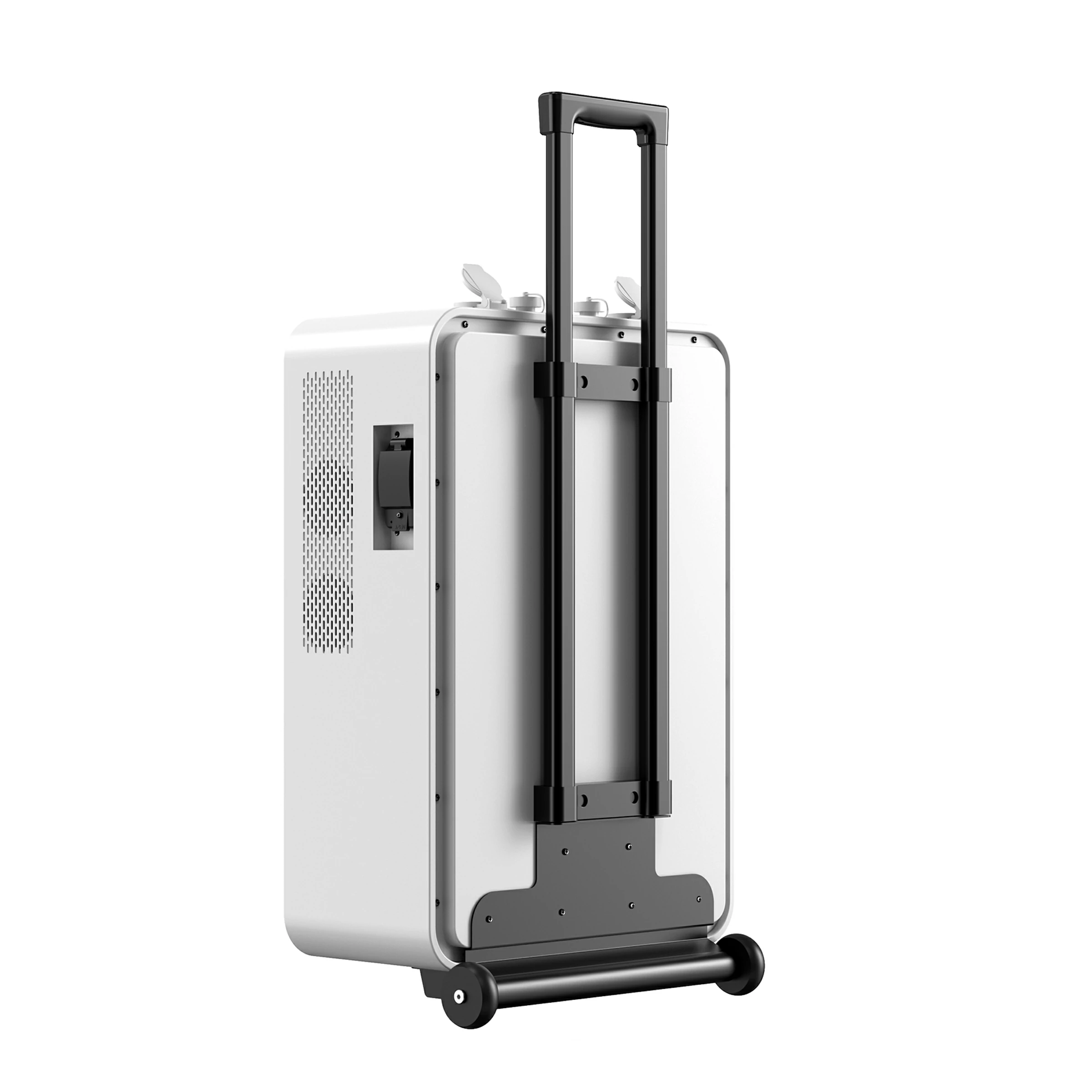

Easy to Move with Wheels and Pull Handle
Need power where the grid is unreliable or where you cannot install a fixed system? The wheeled cabinet and pull handle design make transport effortless, while the integrated battery and inverter deliver stable pure sine wave output on demand. From home backup to mobile work and outdoor use, you can deploy energy storage in minutes.

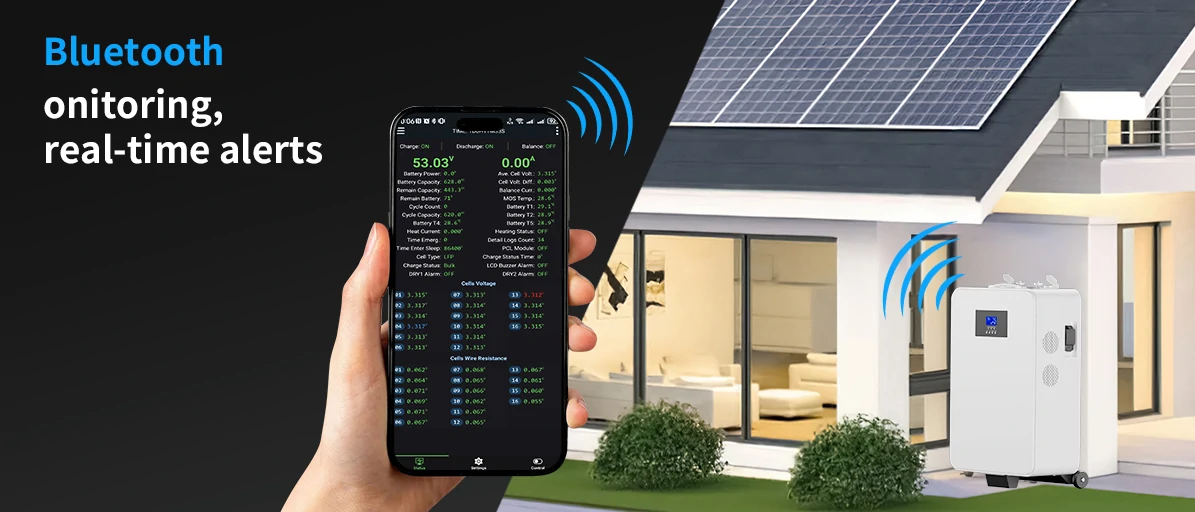

Monitoring and Communication
For monitoring and integration, the system comes with Bluetooth for basic monitoring (standard) and RS485 optional for system integration and project-level communication. Installers benefit from easier commissioning and simplified after-sales diagnostics.

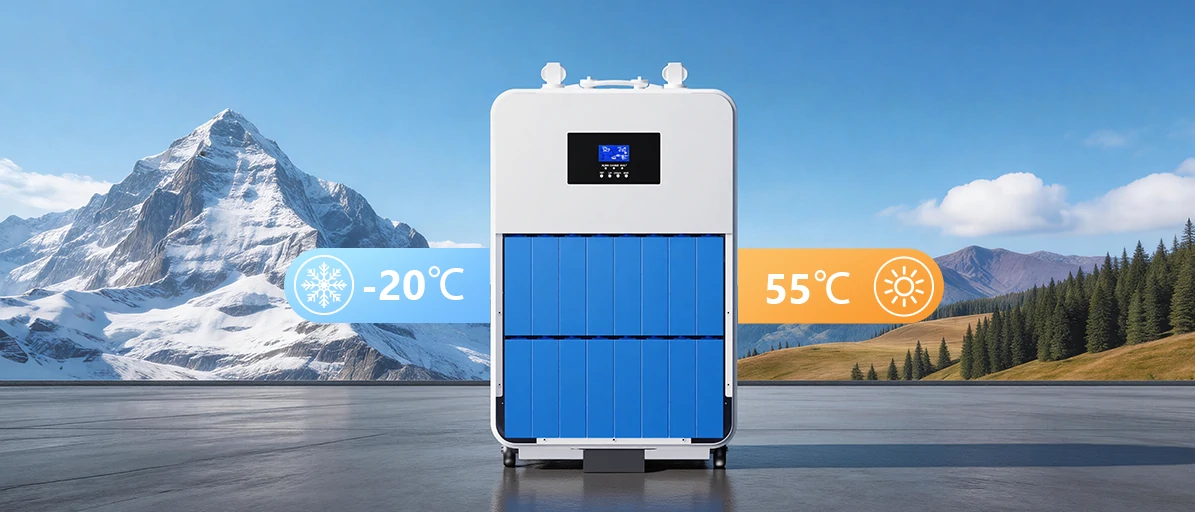

Reliable Operation in Real-world Environments
Built for daily use in mixed indoor scenarios, the system operates at 0–55°C and can be stored at -15–60°C with 5%–95% humidity. It uses forced air cooling (fan) and has an IP20 protection rating, making it suitable for indoor use.
Fast Charging from Grid and Solar PV
The built-in MPPT supports solar charging with a wide MPPT window, making the system highly suitable for portable PV setups and small solar arrays. The MPPT range is 60–115V, and the maximum PV open-circuit voltage is 145V. For optimal performance, the recommended PV maximum power is 3400W for the 3kW model and 4400W for the 5kW model. The system can handle a maximum PV charge current of 60A for the 3kW model and 80A for the 5kW model.
When solar is unavailable, the system can charge from AC input (grid or generator) with a voltage range of 170–280Vac and a frequency of 50/60Hz. The max AC charge current is 30A (adjustable 0–60A) for the 3kW model and 50A (adjustable 0–60A) for the 5kW model.
Wide Range of Applications
This 5kwh battery is suitable for home emergency backup and daily energy support, off-grid power for camping and mobile living, temporary power for construction and maintenance teams, backup for small shops and kiosks, and reliable energy supply in remote locations with unstable grids.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
100Ah |
|
Nominal Energy |
5kWh |
|
Max Discharge Rate |
1C |
|
AC Input Voltage Range |
170–280Vac |
|
Frequency |
50/60Hz |
|
VTHD |
<3% |
|
Max Charge Rate |
1C |
|
Rated AC Output Power |
3000W/5000W |
|
Max PV Voltage (Voc) |
145V |
|
Cycle Life |
＞ 8000（ @25℃， 80% DOD） |
|
Output Type |
Multi-purpose Socket ×2 |
|
MPPT Range |
60–115V |
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
Yes. It supports MPPT charging with a 60–115V MPPT range and up to 145V PV open-circuit voltage.
Yes. It accepts 170–280Vac input and supports adjustable AC charge current for better compatibility with weak grids or generator limits.
It is rated IP20, so it’s recommended for indoor or sheltered use (garage, utility room, site office). For outdoor use, protect it from rain and dust.
Yes. Avepower supports branding, appearance, function options, and project configuration customization for distributors and partners.
