Avepower All In One Solar Battery 15kWh with 6kW Inverter
This all-in-one solar battery system integrates a 15kWh battery pack, 6kW pure sine wave inverter and MPPT solar charger in one compact floor-standing cabinet. It is designed for home solar storage, backup power, off-grid applications and small energy storage projects that need easier installation, stable output and practical monitoring.
The system uses 314Ah LiFePO4 cells and a 200A protection board with RS485/CAN communication, Bluetooth and WiFi monitoring. With 6200W rated AC output, 6200W max PV input and fast transfer performance, it helps users store solar energy during the day and supply clean backup power when the grid is unstable or unavailable.
- Integrated 6kW pure sine wave inverter
- Built-in MPPT solar charging with up to 6200W PV input
- 200A protection board with RS485/CAN communication
- Bluetooth and WiFi monitoring for easier system checking
- 3.2-inch battery blue screen and 3-inch inverter LCD screen
- Fast transfer time for computers and household appliances
- Support Bluetooth & WIFI
- 100% Customized
- Up to 16 Units in Parallel
- 8000+ cycles@80% DOD

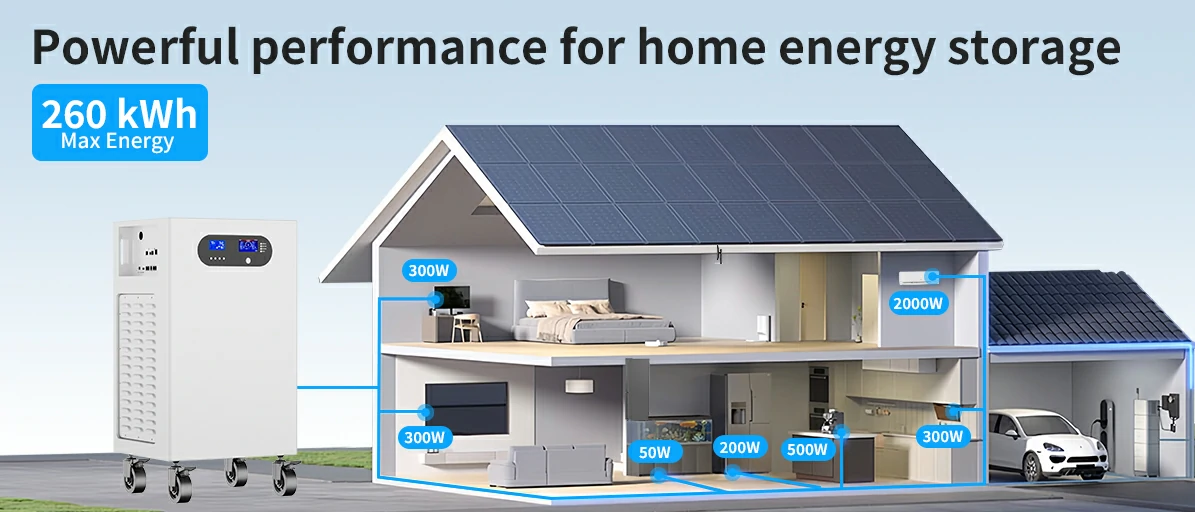

Home Solar Storage and Backup Power
The Avepower 15kWh all-in-one battery system is built for residential solar storage, backup power and small energy storage projects. It combines the battery pack, inverter and MPPT solar charger in one cabinet, helping reduce external wiring, installation complexity and system matching work. For installers and distributors, this integrated design can make project deployment easier because the key components are already combined inside one machine.
15kWh All-in-One Battery for Whole-Home Backup
The 51.2V LiFePO4 battery pack provides 15kWh of rated energy, making it suitable for daily solar self-consumption, evening power use, peak tariff management and emergency backup during grid outages. For homes, villas, off-grid houses and small energy storage rooms, this all-in-one design can help simplify the overall system architecture.
Integrated 6.2kW Pure Sine Wave Inverter
The built-in inverter provides 6200W rated AC output and pure sine wave power, making it suitable for common household appliances, lighting, routers, refrigerators, security systems, pumps and other essential loads. The system supports 220/230/240VAC output and 50/60Hz frequency, helping it adapt to different residential power environments.
With 12400VA peak power and adjustable transfer time, the system can support backup operation when the grid fails. The transfer time can be set to 10ms for computer equipment and 20ms for household appliances, helping maintain stable power for sensitive electronics and daily-use devices.
MPPT Solar Charging for PV Energy Storage
The integrated MPPT solar charger helps the system make better use of solar panel input. It supports up to 6200W PV input, with an MPPT tracking range of 120–500VDC and a best Vmp working range of 300–400VDC. This makes the system suitable for properly designed rooftop solar arrays and off-grid PV storage projects.
The maximum PV input voltage is 500VDC, and the maximum PV input current is 18A. The system supports up to 100A PV charging current, 80A AC charging current and 120A maximum total charging current, giving installers flexibility when configuring solar charging and grid charging according to the project design.
314Ah LiFePO4 Cells for Stable Energy Storage
This system uses 314Ah LiFePO4 cells with a 16S1P battery configuration. The battery pack has a nominal voltage of 51.2V, nominal capacity of 314Ah, making it a practical 15kWh-class home energy storage solution.
LiFePO4 chemistry is widely used in solar battery systems because of its thermal stability, safety performance and long service potential. For residential and installer-led projects, this helps provide a safer and more reliable foundation for daily charging and discharging.
200A BMS Protection for Safer Operation
The 15kwh battery pack uses a 200A software protection board to monitor and protect the battery during charging and discharging. The BMS helps protect against overcharge, over-discharge, overcurrent, short circuit and temperature-related risks, improving system safety and long-term stability.
The battery pack also supports RS485 and CAN communication, making it easier for installers to integrate the system with compatible inverter communication protocols and monitor battery operating status during commissioning and maintenance.

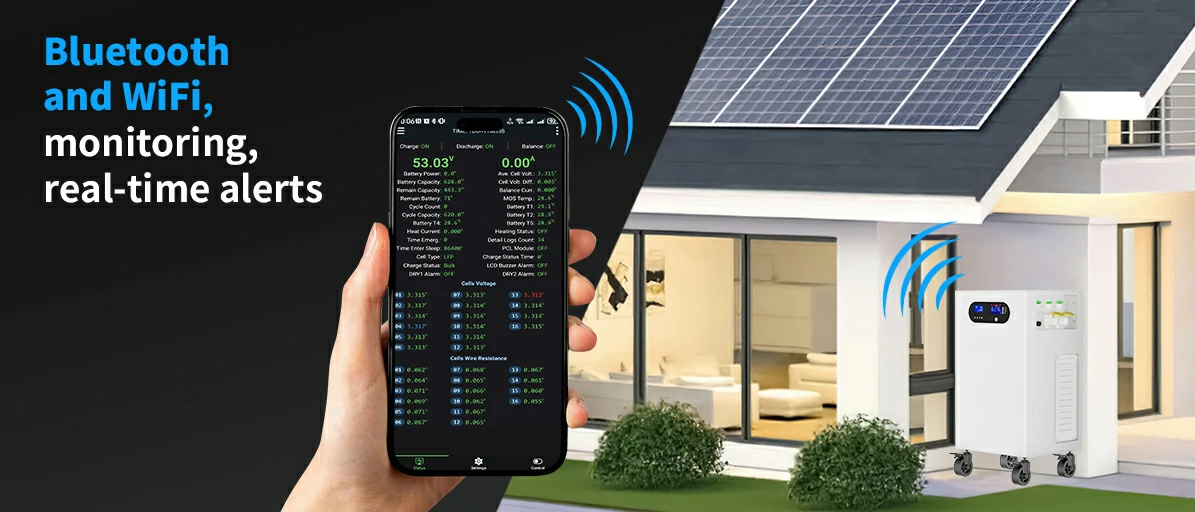

Bluetooth and WiFi Monitoring
The 15kwh solar battery supports Bluetooth and WiFi modules, allowing users and installers to monitor battery status more conveniently. Through wireless monitoring, users can check key information such as state of charge, voltage, current, operating status, warning information and basic system data.
For installers, Bluetooth and WiFi monitoring can help simplify on-site inspection and reduce the need to open the cabinet for basic status checks. For end users, wireless monitoring makes daily operation easier and more user-friendly.
Dual Display Screens for Battery and Inverter Monitoring
This all-in-one system includes a 3.2-inch button blue screen for battery pack information and a 3-inch LCD screen for inverter information. Users and installers can check battery status, inverter working mode, input and output information, fault status and basic operating data directly from the front panel.
The dual-screen design makes on-site commissioning and daily inspection more convenient, especially for residential battery rooms, garages, utility rooms and installer-led solar storage projects.
Fast Backup Power for Grid Outages
When the grid becomes unstable or unavailable, the system can switch to battery power quickly to support essential loads. The transfer time can be configured for different load types, with 10ms for computer equipment and 20ms for household appliances.
This makes the system suitable for homes, villas, shops, equipment rooms and small offices that need cleaner and quieter backup power compared with fuel generators.

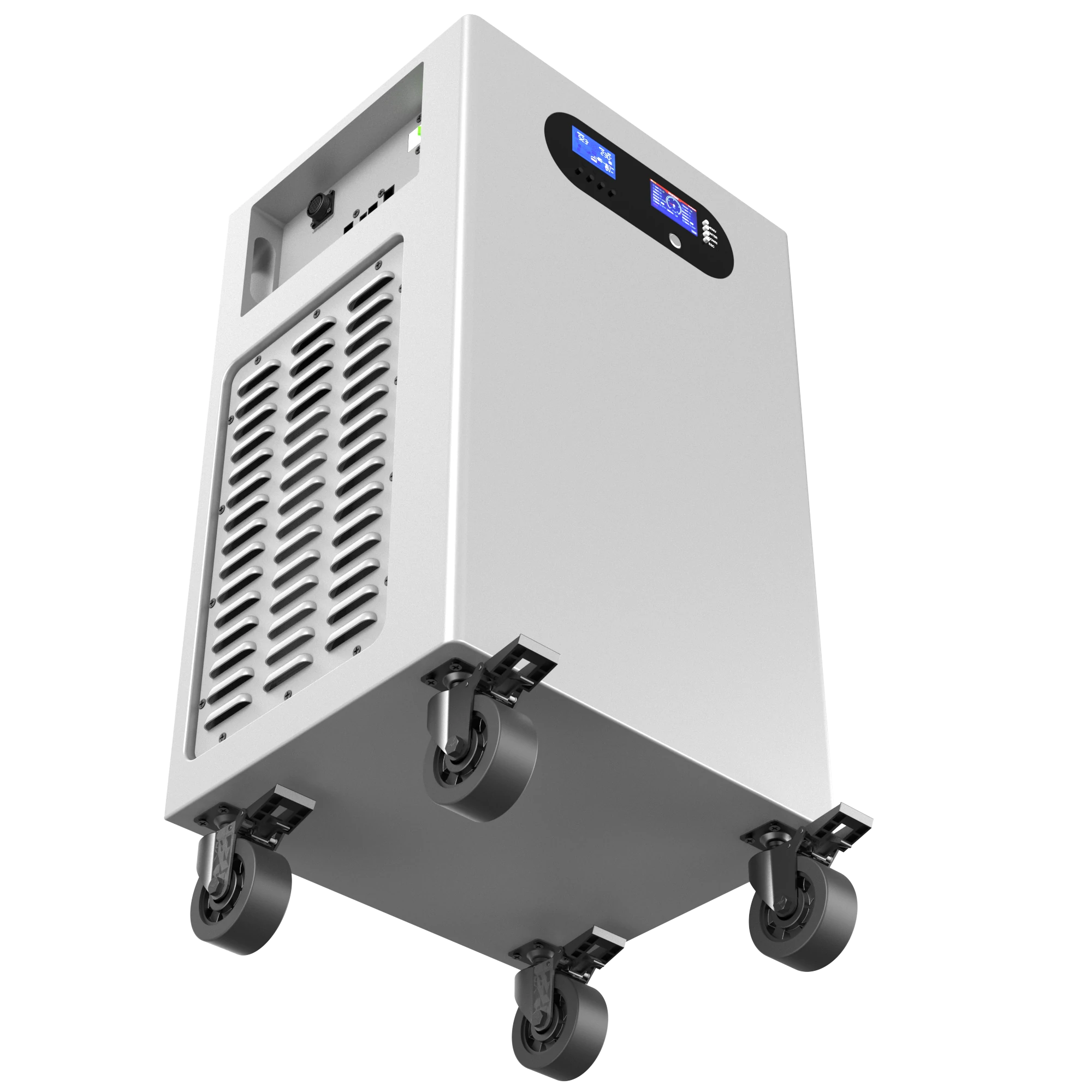

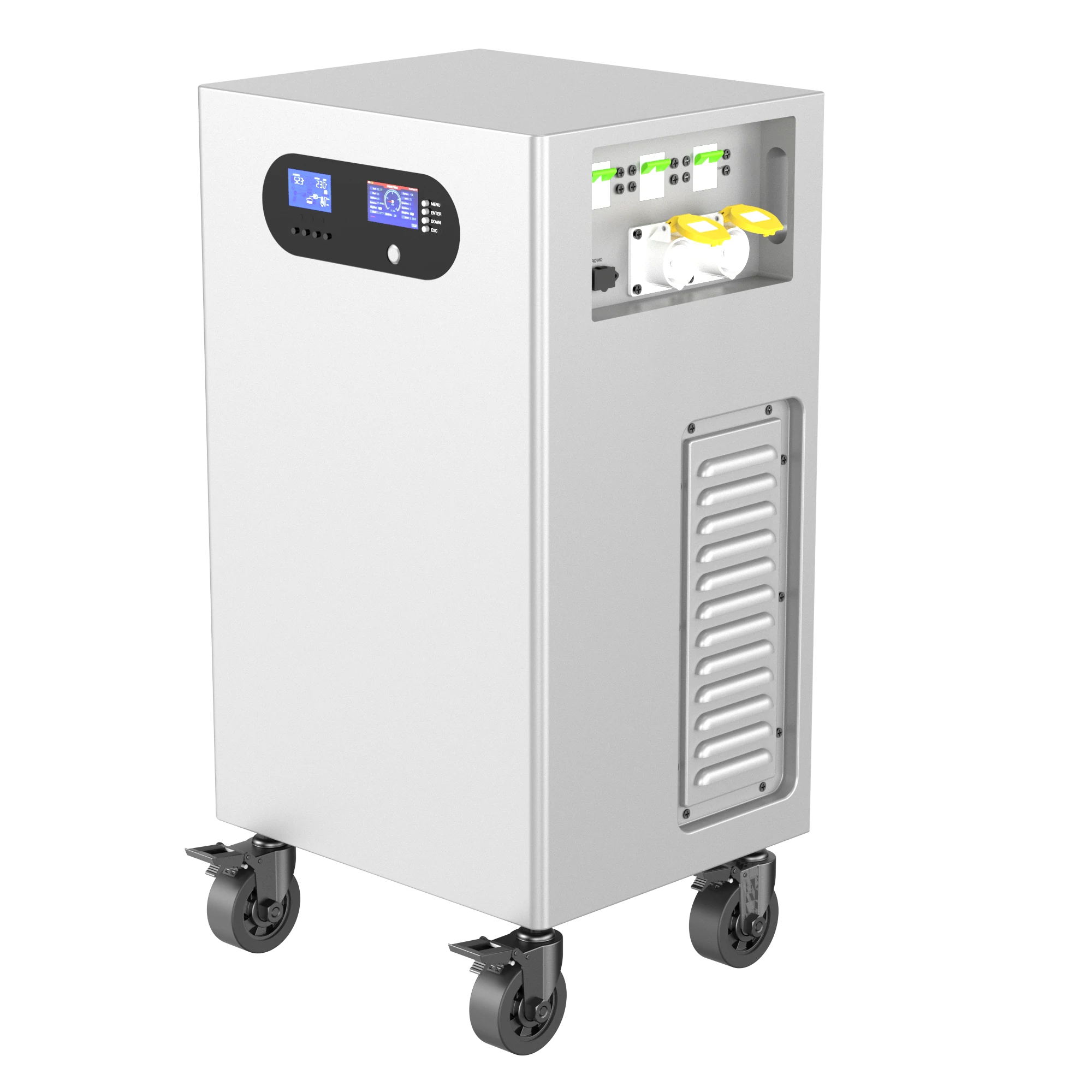

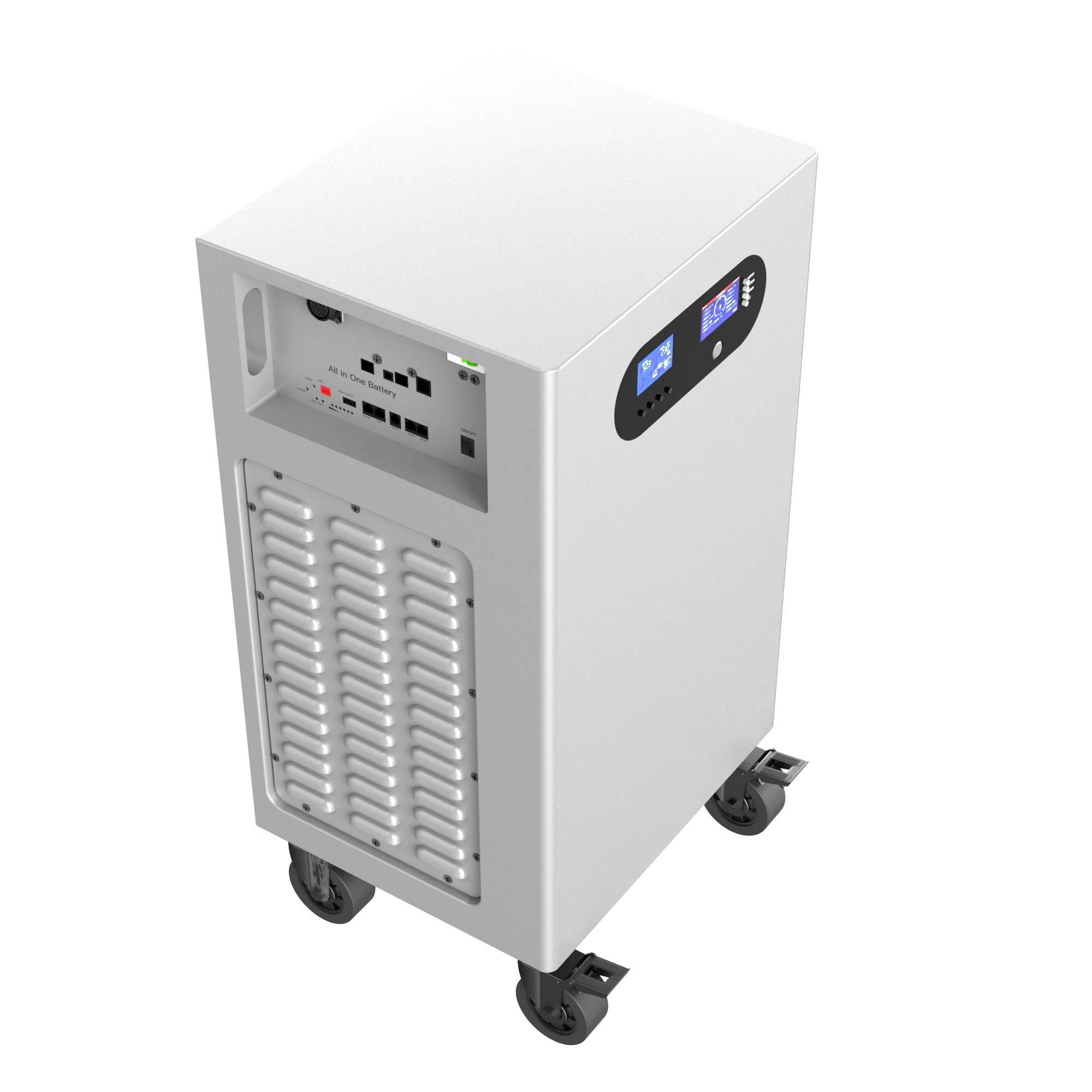

Compact Cabinet with Rollers for Easier Placement
The whole machine is equipped with PV air switch 63A/2P, AC INPUT air switch 63A/2P, AC OUTPUT air switch 63A/2P and battery air switch 200A/1P. These hardware designs help improve installation practicality, safety isolation and maintenance convenience.
The cabinet size is 483 × 393 × 800 mm excluding rollers and 483 × 393 × 871 mm including rollers. With a weight of about 150kg, the system is designed as a compact integrated cabinet for residential solar storage, backup power rooms, garages and small energy storage spaces.

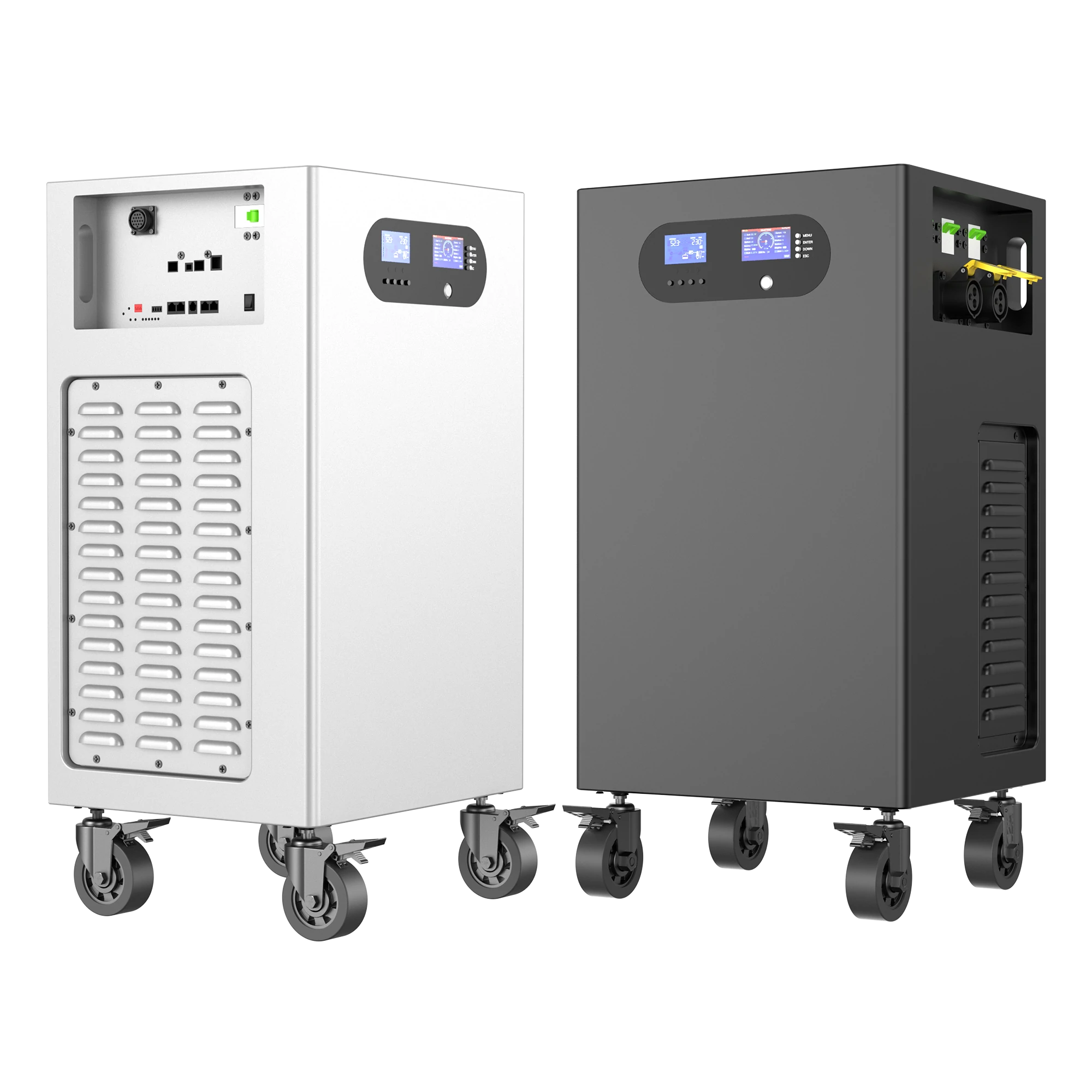

Flexible Customization for Your Market
Avepower supports flexible OEM and ODM customization for this all-in-one battery system. Depending on your project and market requirements, the system can be customized in cabinet appearance, color, branding, packaging, communication options and functional configuration.
This makes it suitable for installers, wholesalers, distributors and energy storage brands that need a practical home battery solution with factory support, technical communication and project-based configuration.
Suitable Applications
This 15kWh all-in-one solar battery is suitable for projects that need integrated energy storage, solar charging and backup power in one cabinet. It can be used in residential solar systems, backup power projects, off-grid homes, villas, small offices, equipment rooms and installer-led energy storage projects.
For distributors, installers and OEM/ODM customers, the system can also be adapted to different markets through customized appearance, branding, communication settings and functional configuration.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
51.2V |
|
Battery Type |
LiFePO4 |
|
Nominal Energy |
15kWh |
|
Inverter Output Power |
6Kw |
|
AC Input |
220/230/240VAC |
|
Input Voltage Range |
90-280VAC+3V(Normal Mode) 185-264VAC+3V(UPS Mode) |
|
Output Wave |
Pure Sine Wave |
|
Output Frequency |
50/60Hz+0.1% |
|
Cycle Life |
＞ 8000（@25℃ ，80% DOD） |
|
Charge Current |
56A |
|
Discharge Current |
140A |
|
Charge Mode |
CC-CV |
|
Communication |
CAN/ RS485/ RS232 |
|
Weight |
145kg |
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
The built-in MPPT charger supports up to 6200W PV input, with an MPPT tracking range of 120–500VDC and a best Vmp working range of 300–400VDC. The maximum PV input voltage is 500VDC and the maximum PV input current is 18A.
It is suitable for garages, utility rooms, home energy storage areas, equipment rooms, off-grid houses, villas and small commercial backup power projects. Installation should be completed by qualified professionals according to local electrical and safety requirements.
The built-in protection circuit module and PACE 200A BMS support overcharge protection, over-discharge protection, temperature protection and overcurrent protection. The system also includes multiple air switches for PV, AC input, AC output and battery protection.
When the grid fails, the system can switch to battery backup mode. The transfer time can be set to 10ms for computer equipment and 20ms for household appliances, helping keep essential loads running during power outages.
This system integrates a 51.2V 314Ah LiFePO4 battery pack, 6kW pure sine wave inverter, MPPT solar charger, 200A protection board, display screens, air switches and terminal blocks in one cabinet. It is designed to reduce external equipment matching and simplify installation.
