Avepower 5kWh 10kWh 15kWh Stackable Solar Batteries for Home Energy
The Avepower solar battery stackable is designed for residential solar storage, backup power, off-grid energy systems and installer-led energy storage projects.
Each module provides 5kWh nominal energy. For different project requirements, installers can configure the system as 5kWh, 10kWh or 15kWh by stacking multiple modules, making it a flexible low-voltage battery solution for homes, villas, small energy rooms and light commercial backup applications.
- Nominal energy: 5kWh per module
- Pack style: 16S1P
- Charging voltage: 58.4V
- Working voltage: 36.8V–58.4V
- Max continuous discharge current: 100A
- Communication: RS485 / RS232 / CAN
- Display: 4.3-inch touch screen
- Stackable design: 5kWh / 10kWh / 15kWh configurations
- Compact size: 530 × 460 × 190 mm
- Approx. weight: 50kg per module
- Support Bluetooth & WIFI
- 100% Customized
- Up to 16 Units in Parallel
- 8000+ cycles@80% DOD
Why Partner with Avepower
Global Certifications
Certified with UN38.3, MSDS, CE, CB, FCC, RoHS, IEC, and UL standards.
High Compatibility
Compatible with leading inverters including Growatt, GoodWe, SMA, Solis, and Deye.

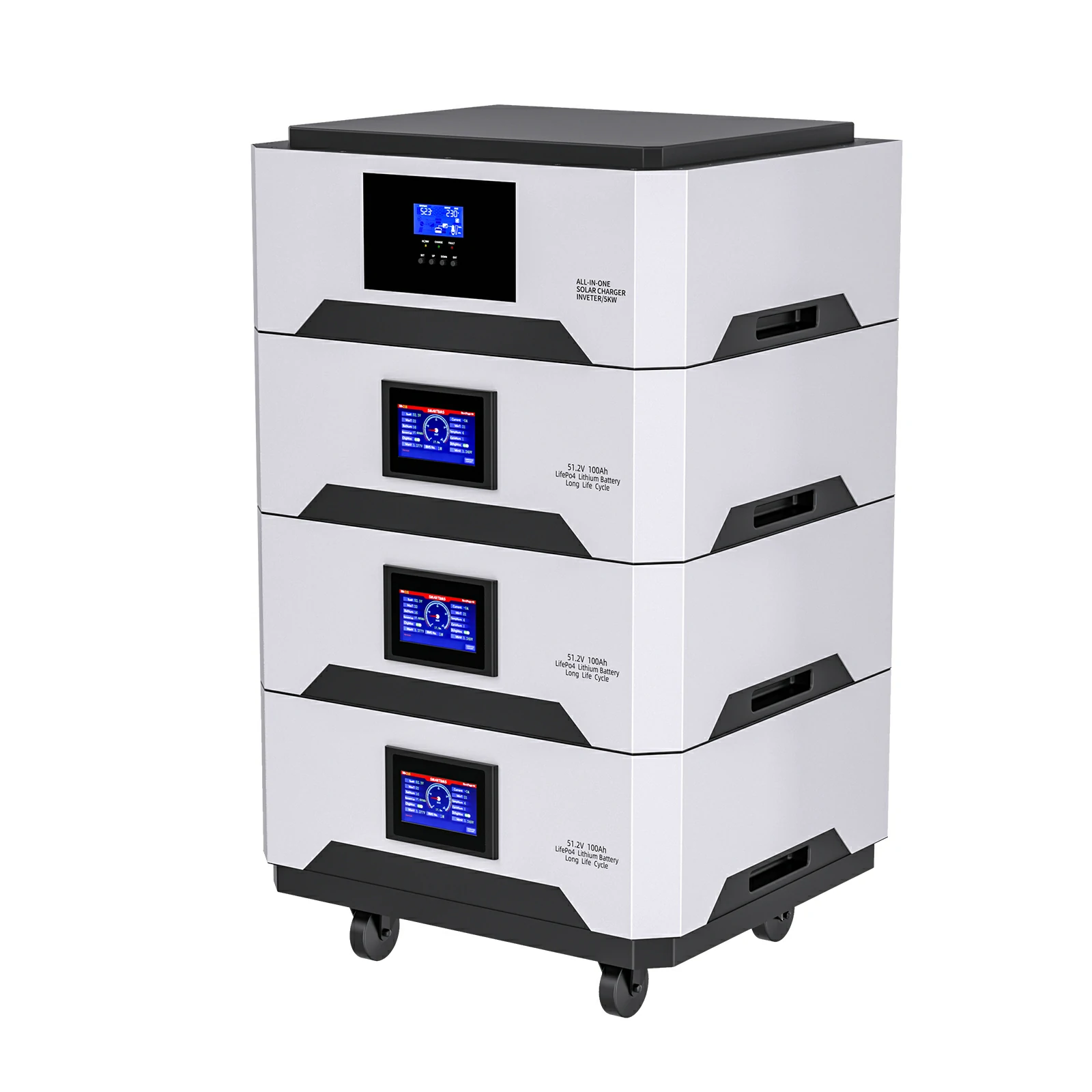

Stackable Battery Module for Flexible Home Energy Storage
The Avepower solar battery stackable is built as a compact stackable energy storage module. One battery can be used as a 5kWh backup unit, while two or three modules can be combined to create 10kWh or 15kWh battery storage systems for larger household energy needs. This makes the battery suitable for customers who want to start with a smaller system and expand later.
Build 5kWh, 10kWh or 15kWh Battery Storage Systems
Each module provides 5kWh nominal energy. According to different backup time, inverter capacity and household load requirements, the battery system can be configured in different sizes. The product can be stacked up to 5 modules for placement.

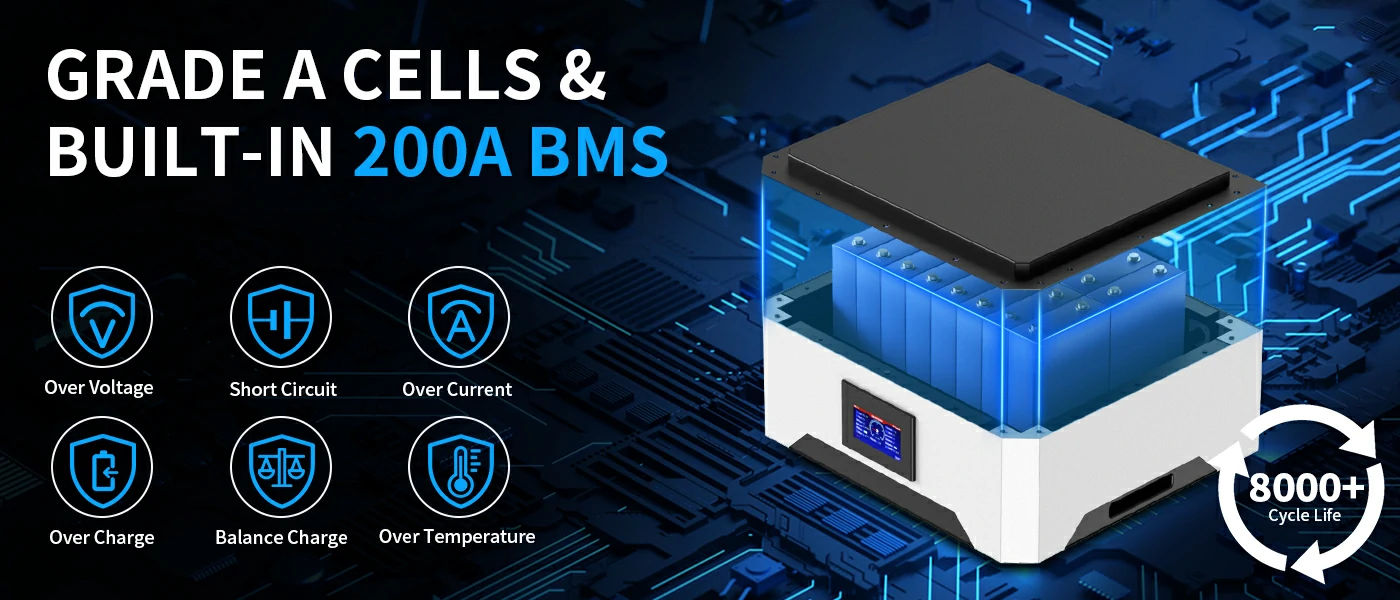

Built-In BMS Protection for Charging and Discharging Safety
The battery is packed with a protection circuit module to support safer charging and discharging. The BMS helps protect the battery from common electrical risks and improves system reliability during daily operation.
LiFePO4 Chemistry for Safer Daily Energy Storage
This solar battery stackable uses LiFePO4 chemistry, which is widely used in residential energy storage because of its stable structure, good thermal performance and low-maintenance operation.
Compared with traditional lead-acid battery systems, LiFePO4 batteries are more suitable for modern solar storage applications where users need higher usable energy, longer service potential and cleaner indoor operation. The battery works quietly without fuel, exhaust or engine noise, making it suitable for garages, utility rooms, equipment rooms and protected indoor installation areas.
100A Max Continuous Discharge for Residential Backup Loads
The solar battery stackable supports a standard discharge current of 50A and a maximum continuous discharge current of 100A under suitable operating conditions. For charging, the battery uses CC-CV charging mode. The standard charge current is 20A from 0℃ to 10℃, and the maximum charge current is 50A from 10℃ to 45℃.
4.3-Inch Touch Screen for Easier Local Monitoring
The solar battery stackable is equipped with a 4.3-inch touch screen display, helping users and installers check key battery information more conveniently during installation, commissioning and daily operation.
The touch screen can improve local operation efficiency because installers can view battery status directly on the module without opening the system. This is useful for on-site inspection, maintenance and troubleshooting.

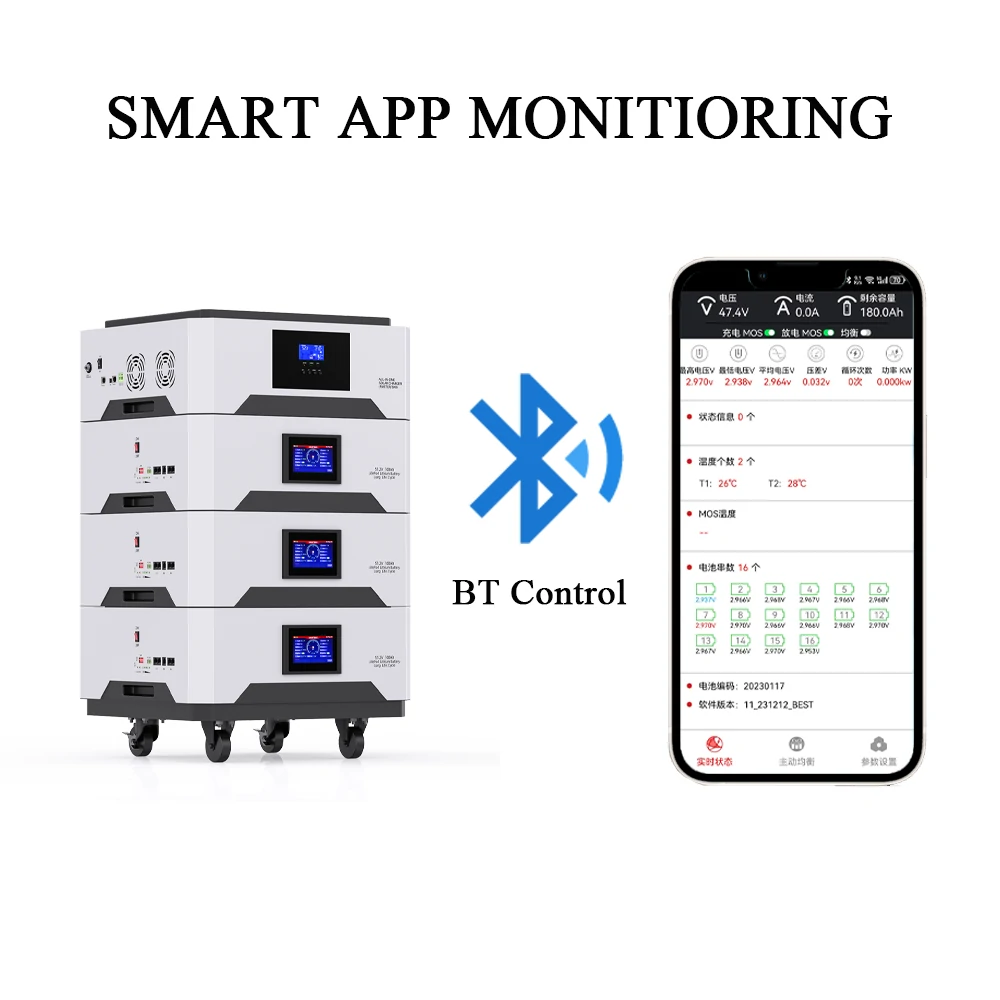

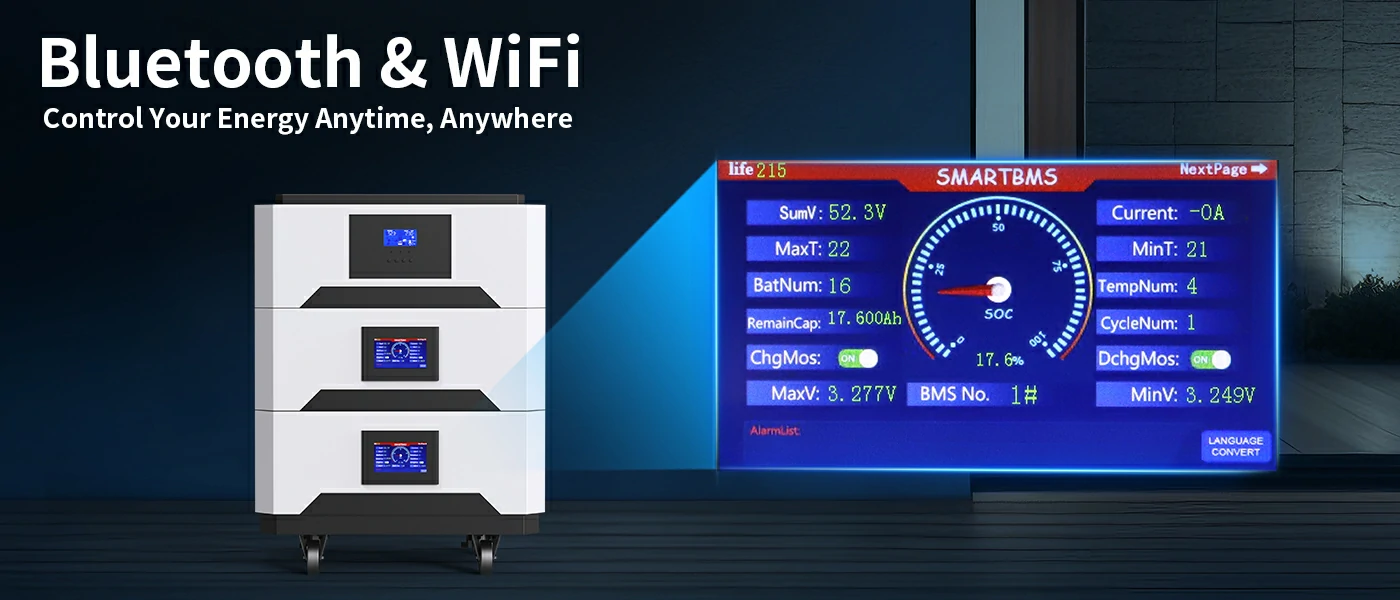

Bluetooth and WiFi Smart Monitoring
You can easily monitor your battery status anytime, anywhere, keeping your energy plan under control day and night. With clear real-time data accessible on your phone or tablet, you can quickly check the state of charge (SOC), voltage, current, temperature, and receive alerts. The system supports multiple communication options—including CAN, RS485, and RS232—for seamless integration with inverters and other energy management systems.
RS485, RS232 and CAN Communication
The battery supports RS485, RS232 and CAN communication. These communication options help the battery connect with compatible inverters, monitoring systems and energy management devices. Before bulk order or project installation, Avepower recommends confirming the inverter brand, model, communication protocol and battery parameter settings to ensure better system matching.

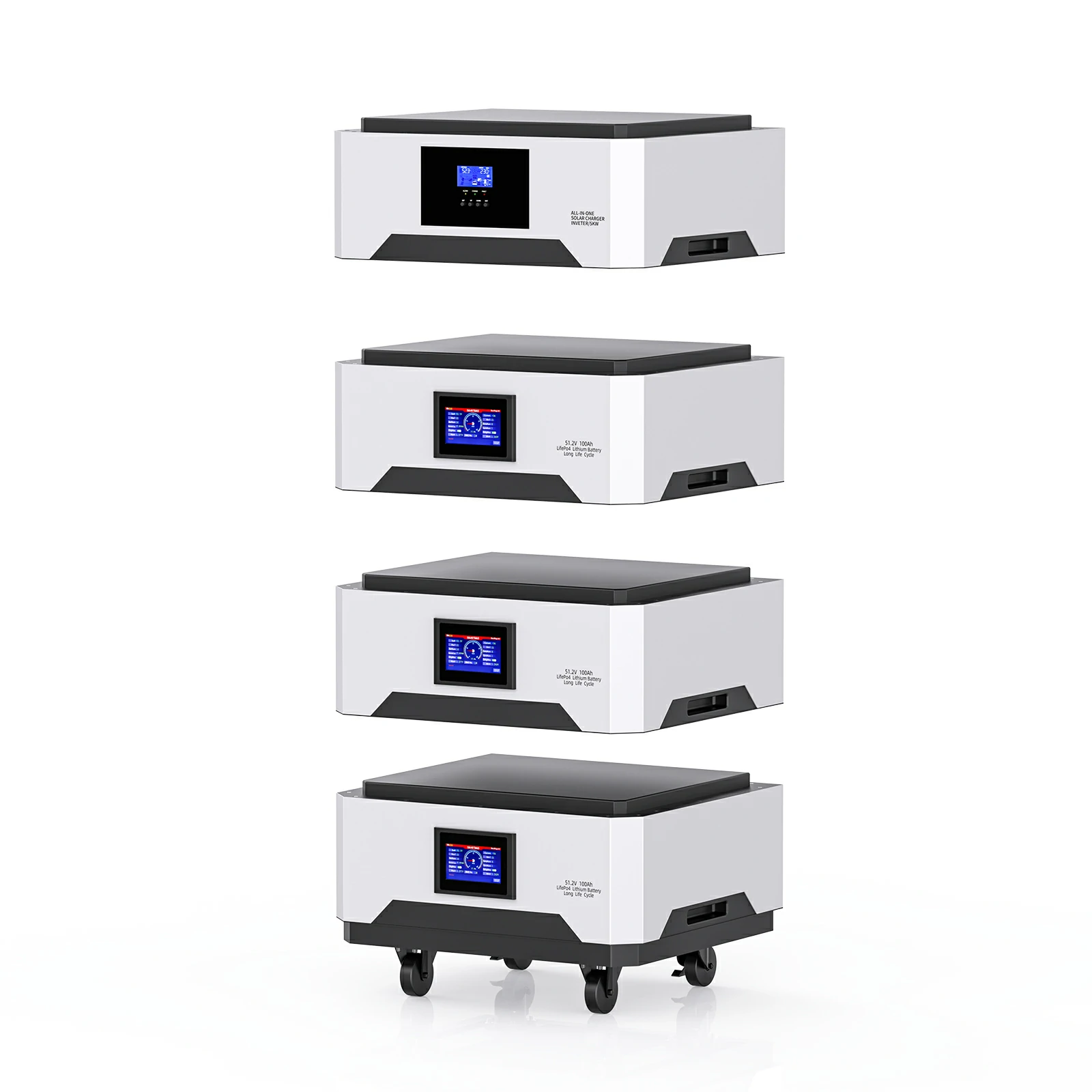

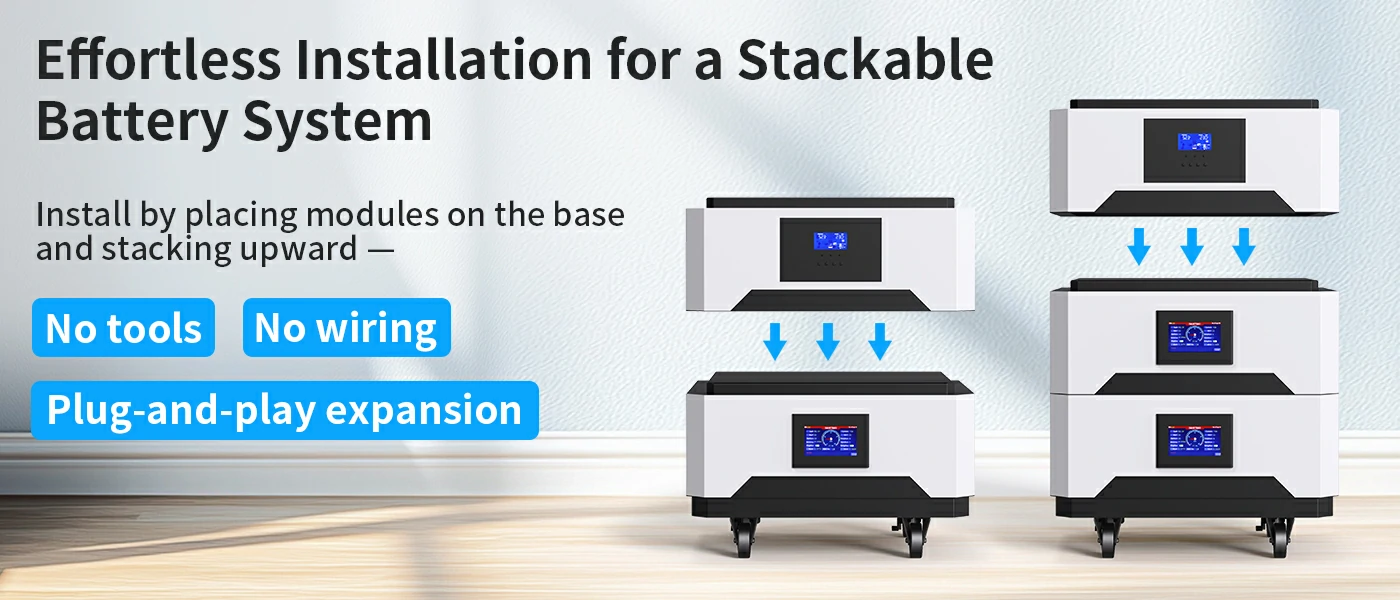

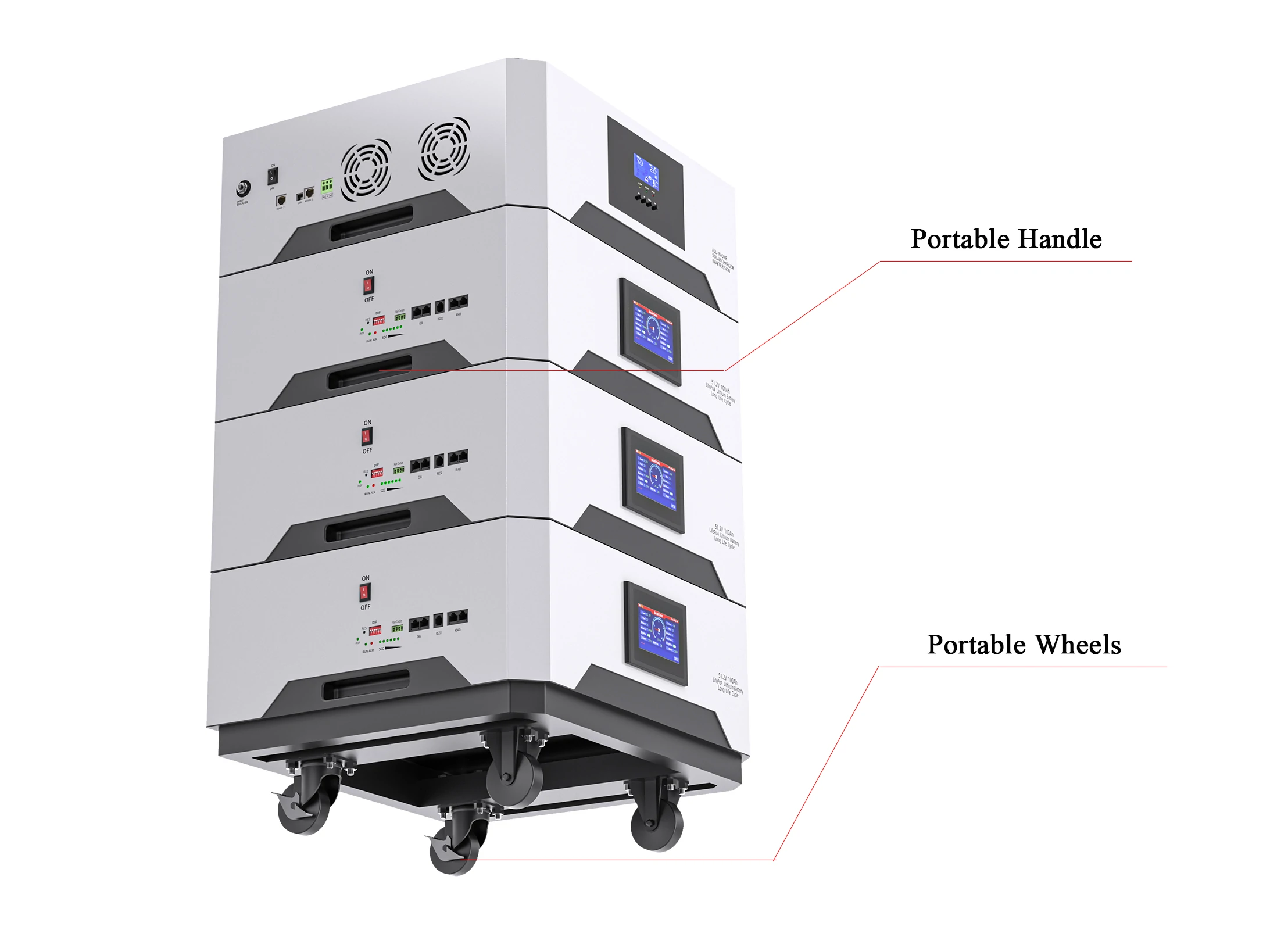

Effortless Installation for a Stackable Battery System
Installation is simple—you place the modules on the base and stack them upward. You can expand your system easily without using tools or making any wiring changes. This plug-and-play design ensures a straightforward installation process, allowing for fast upgrades. The installer-friendly setup helps reduce onsite time, making the whole experience smoother and more efficient.
Practical Stackable Hardware Design
The solar battery stackable is designed with practical hardware details for installation and service work. It includes a weak current switch, 100A through square plug and communication interfaces for system connection.
The compact module size of 530 × 460 × 190 mm helps save installation space. Each module weighs approximately 50kg, making it suitable for stacked placement in residential energy storage rooms, garages, villas and small project sites.

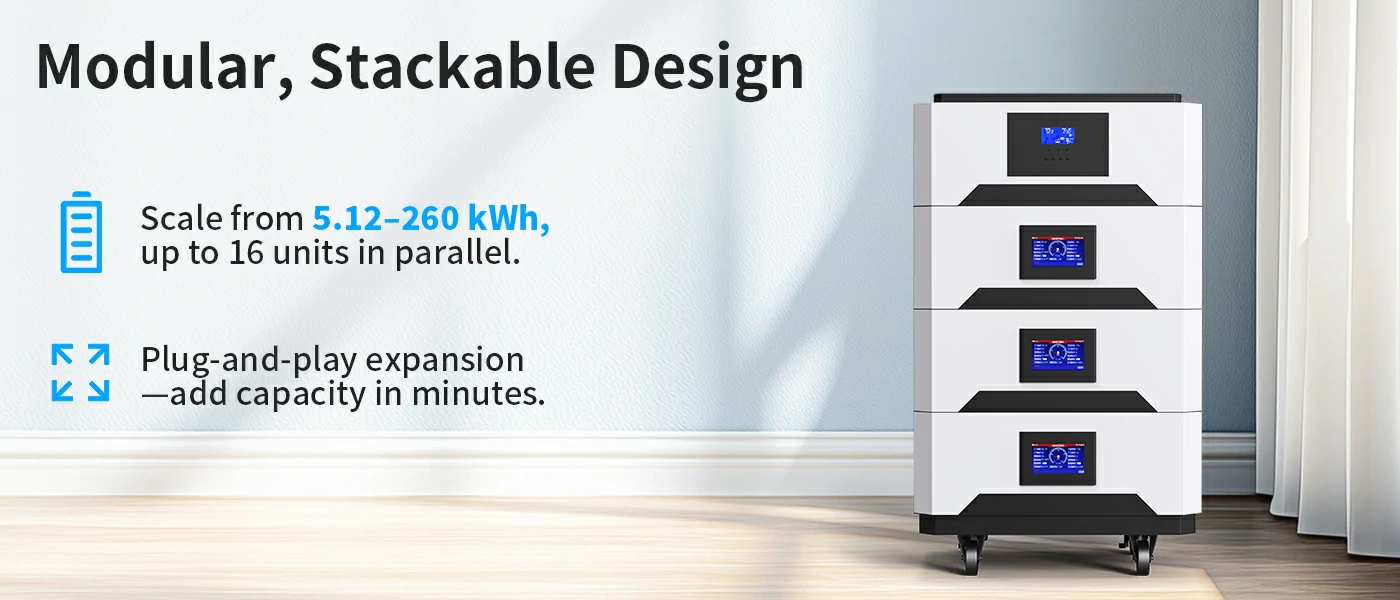

Max 16 Units Parallel for Scalable Energy Storage
The Avepower solar battery stackable supports up to 16 units in parallel, allowing the system capacity to expand according to different project requirements. Users can start with a small-capacity battery setup and scale up later for higher energy storage demand.

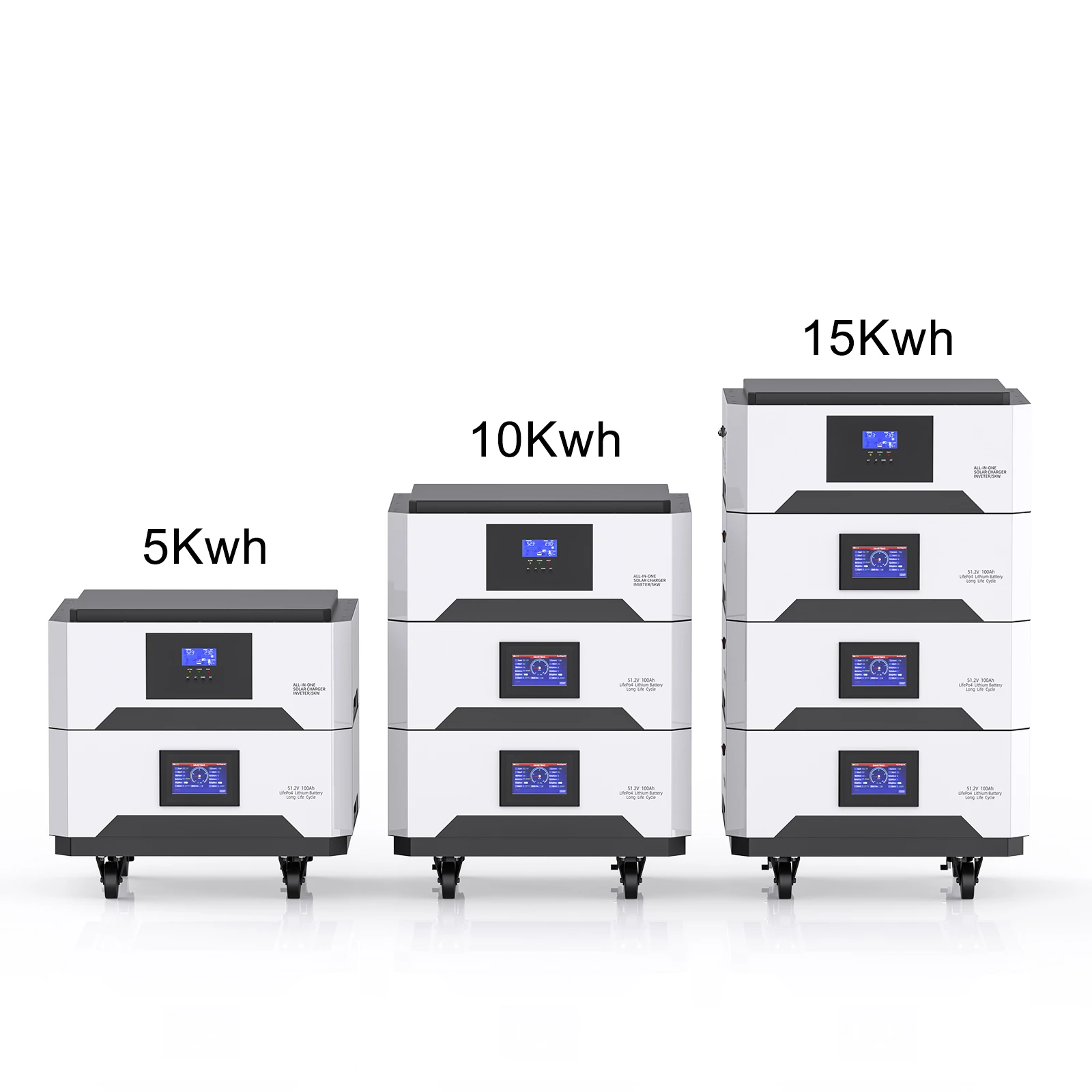

Flexible Stackable Configuration
The Avepower stackable battery is designed with flexible capacity options for different residential and small energy storage projects. Customers can choose a single module starting from 5kWh or 10kWh, depending on the required backup time, installation space and inverter configuration.
The modular stackable design also allows the system to expand later. Installers, distributors and project buyers can configure the battery system according to different project needs, such as 5kWh, 10kWh, 15kWh, 20kWh or larger parallel systems.
Designed for Different Indoor and Protected Installation Conditions
From cold winters as low as -20°C to hot summers reaching 55°C, your battery system continues to operate safely and efficiently thanks to active temperature monitoring by the smart BMS. This ensures stable performance across a wide range of temperatures. The intelligent protection logic reduces stress on the battery, helping maintain reliable operation for daily cycling and backup power readiness.
Custom Battery Support for Installers, Distributors and OEM Projects
Avepower supports battery customization for residential storage, small energy projects, installer-led solar systems and OEM/ODM customers.
For different project requirements, battery appearance, capacity configuration, communication protocol, screen interface, cabinet structure, labeling, packaging and documentation can be discussed before production.
Suitable for Homes, Villas and Small Energy Storage Projects

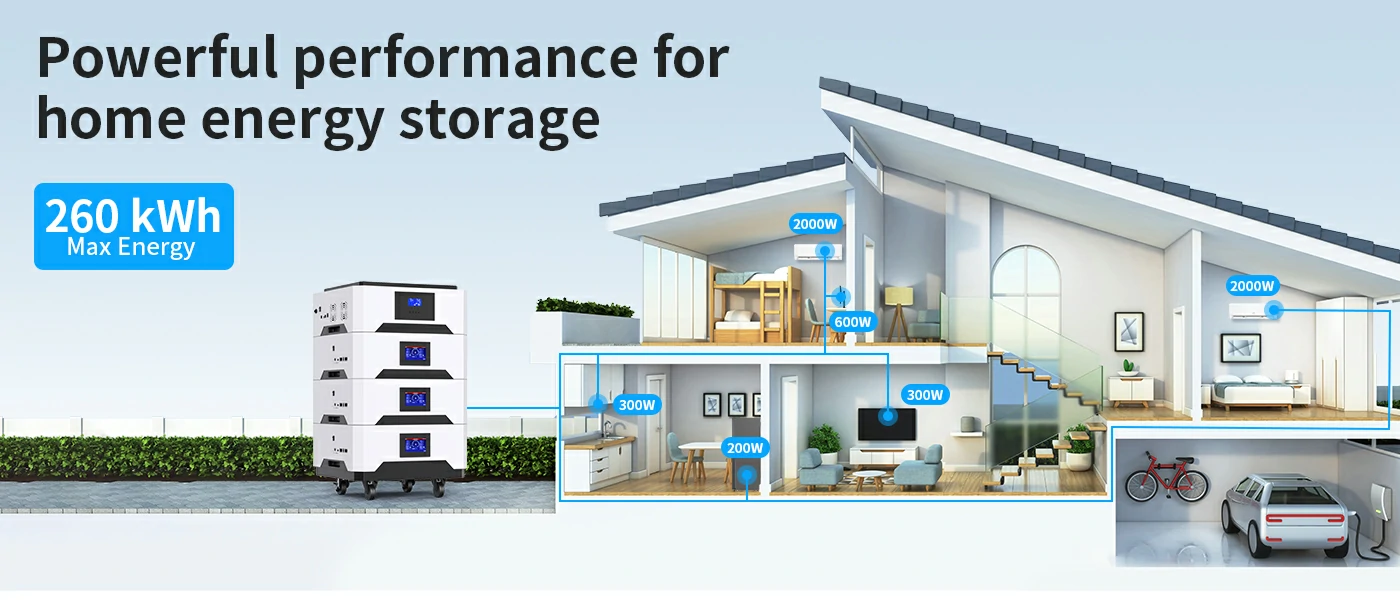

You can build a system tailored to your lifestyle, whether you need daily solar storage, full backup power, or complete off-grid energy independence. This solution is ideal for self-consumption, peak shaving, and outage backup. It supports common household loads such as lighting, refrigeration, internet, and entertainment. With flexible capacity options, you can match your budget now and expand your system as your needs grow.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
100Ah |
|
Nominal Energy |
5kWh/10kWh/15kWh |
|
Charge Mode |
CC-CV |
|
Communication |
CAN/ RS485/ RS232 |
|
Standard Charge Current |
20A, 0℃–10℃ |
|
Max Charge Current |
50A, 10℃–45℃ |
|
Standard Discharge Current |
50A, -20℃–60℃ |
|
Max Continuous Discharge Current |
100A, 10℃–45℃ |
|
Charge Temperature |
0-55 °C |
|
Discharge Temperature |
-20-55 °C |
|
Cycle Life |
＞ 8000（ @25℃， 80% DOD） |
|
Maximum Paralleling |
16 unit |
|
Designed Life |
10+Years |
Inverter Compatibility
Our batteries are designed to work seamlessly with most major inverter brands. You can install them with confidence, knowing they integrate easily with your existing solar or power system for reliable energy storage.
Only some common compatible inverter models are listed here. For the full list or to check a specific model, please visit the Avepower Inverter Compatibility List.
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
You can connect up to 16 units in parallel. The total capacity can scale up to 260kWh, depending on your configuration and project requirements.
The batteries use LiFePO4 (Lithium Iron Phosphate). This chemistry is known for strong safety performance, stable cycling, and long lifespan, with up to 8,000 cycles under proper operating conditions.
The system supports a charge current of 100A and a discharge current of 200A. This helps the battery deliver strong power output for household loads and backup use cases.
Yes. Avepower supports OEM/ODM customization, including appearance, labeling, packaging, capacity configuration, and communication settings. You can also request documentation and integration support for your market.
The battery supports CAN, RS485, and RS232 communication. These interfaces help the system integrate with compatible inverters, EMS, and monitoring devices.
