Avepower 48V 200Ah Powerwall 10kWh Wall Mounted LiFePO4 Battery
The Avepower 48V 200Ah Powerwall battery pack is designed for residential solar storage, home backup power, off-grid energy systems and OEM energy storage projects. With a 10kWh nominal energy capacity, compact wall-mounted structure and intelligent BMS protection, it helps homeowners, installers, distributors and project buyers build safer, cleaner and more space-saving battery storage systems.
Built with 200Ah LiFePO4 cells and a 16S1P battery pack configuration, this battery supports stable charging and discharging, Bluetooth and Wi-Fi monitoring, CAN/RS485/RS232 communication, a 3.2-inch button blue screen and up to 16 units in parallel for scalable home energy storage.
- 16S1P battery pack configuration
- Built with 200Ah 3.2V LiFePO4 cells
- 4V CC-CV charging
- 40A standard charge current
- Up to 100A maximum continuous charge current
- Up to 150A maximum continuous discharge current
- Up to 16 units in parallel
- OEM and ODM customization support
- Support Bluetooth & WIFI
- 100% Customized
- Up to 16 Units in Parallel
- 8000+ cycles@80% DOD
Engineered for Home Solar Storage and Backup Power
The Avepower 48V 200Ah Powerwall battery pack is built for homes and small energy storage projects that need stable solar storage and reliable backup power. It can store solar energy during the day and help supply power to essential loads during evening use, peak tariff periods or grid outages.
For residential installers, the 10kWh capacity makes this battery suitable for single-battery home backup systems or multi-battery solar storage projects. For distributors and OEM customers, the wall mounted format provides a practical low-voltage battery platform for residential energy storage markets.
The compact wall-mounted design helps save floor space, keeps the installation area cleaner and makes the battery more suitable for garages, utility rooms, home energy rooms and small equipment rooms.

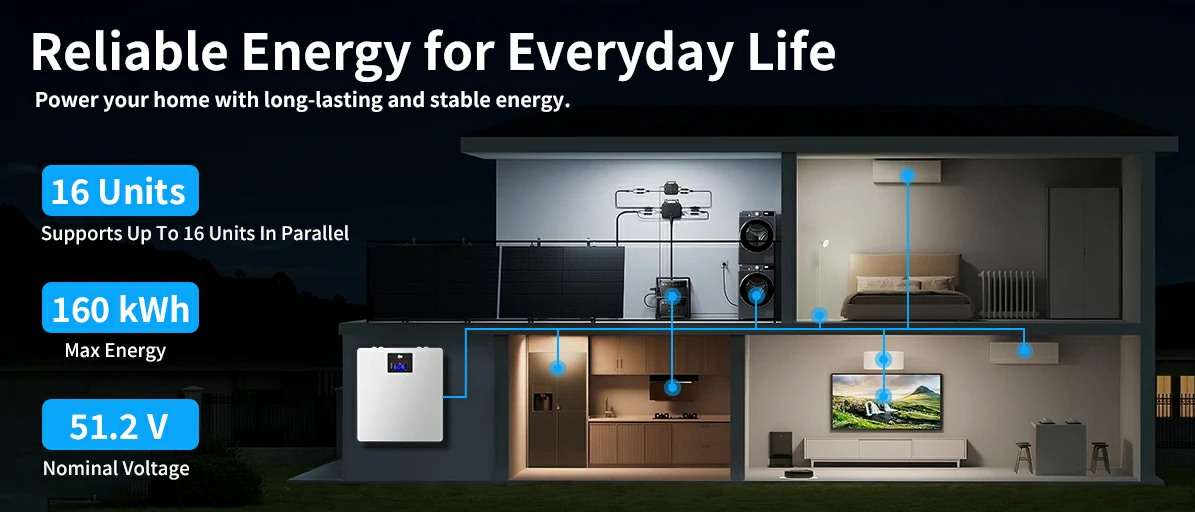

Stable Home Power for Everyday Life
Maximize solar energy usage with the Avepower 48V 200Ah 10kWh Powerwall battery. The battery can help store solar power for later use, reduce dependence on grid power and support selected essential household loads during power outages.
It can be used for lighting, routers, refrigerators, monitoring systems, security systems, small appliances and other essential backup loads when the system is properly designed by installers.
With Bluetooth and Wi-Fi monitoring, users can view battery status through a mobile app. With CAN/RS485/RS232 communication, the battery can also support system integration and inverter communication for different low-voltage energy storage projects.

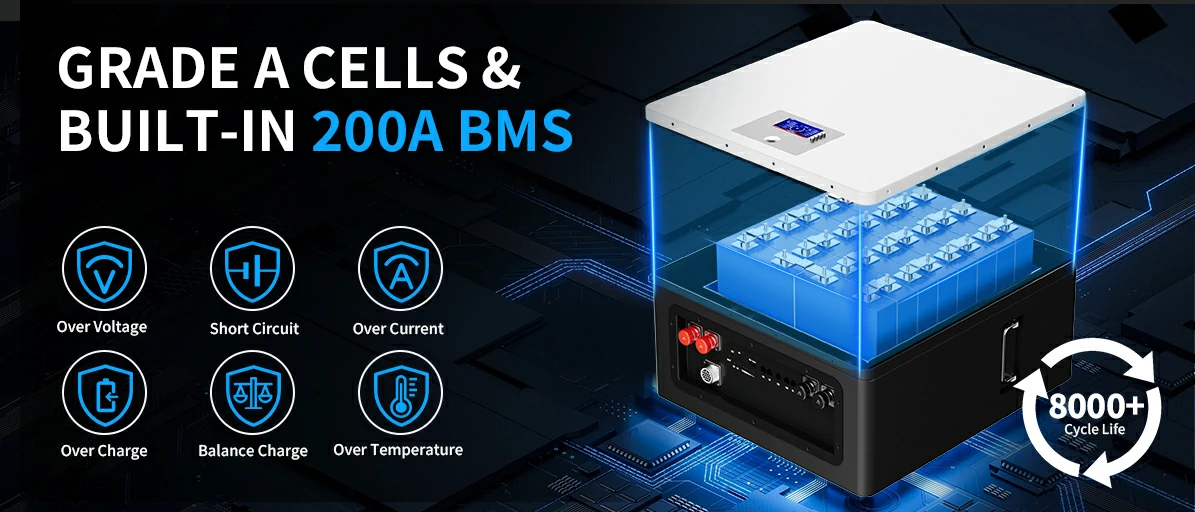

Smart BMS Protection System
Built with Grade A LiFePO4 cells and an integrated 200A smart BMS this battery delivers long cycle life high safety and stable high current output. The BMS protects against overcharge over discharge overload overheating and short circuit so your home energy storage system runs reliably day after day.

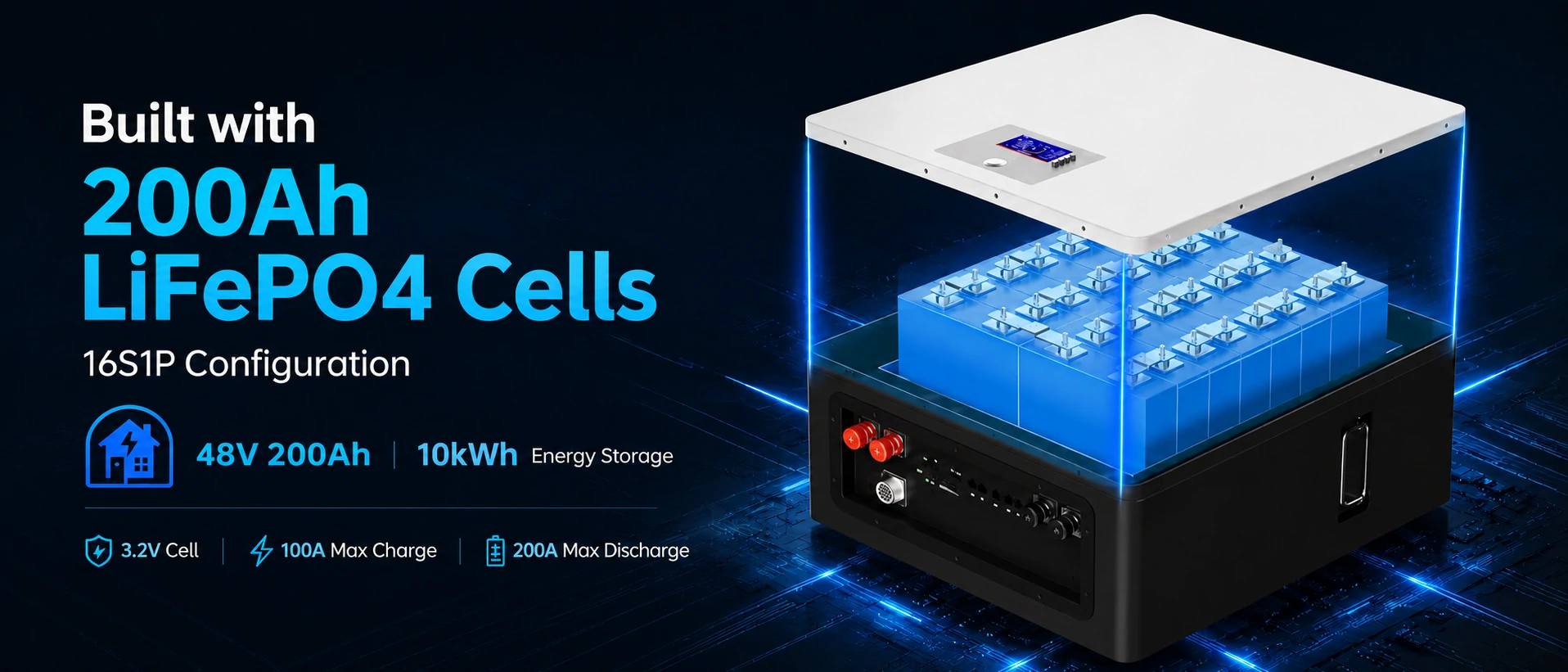

Built with 200Ah LiFePO4 Cells
The 48V 200Ah Powerwall battery is built with 200Ah 3.2V LiFePO4 cells and uses a 16S1P configuration. LiFePO4 chemistry is widely used in solar energy storage because of its thermal stability, safety performance and suitability for repeated charge and discharge applications.
With 48V nominal voltage and 200Ah nominal capacity, the battery provides 10kWh nominal energy for home solar systems, backup power systems and low-voltage energy storage projects.

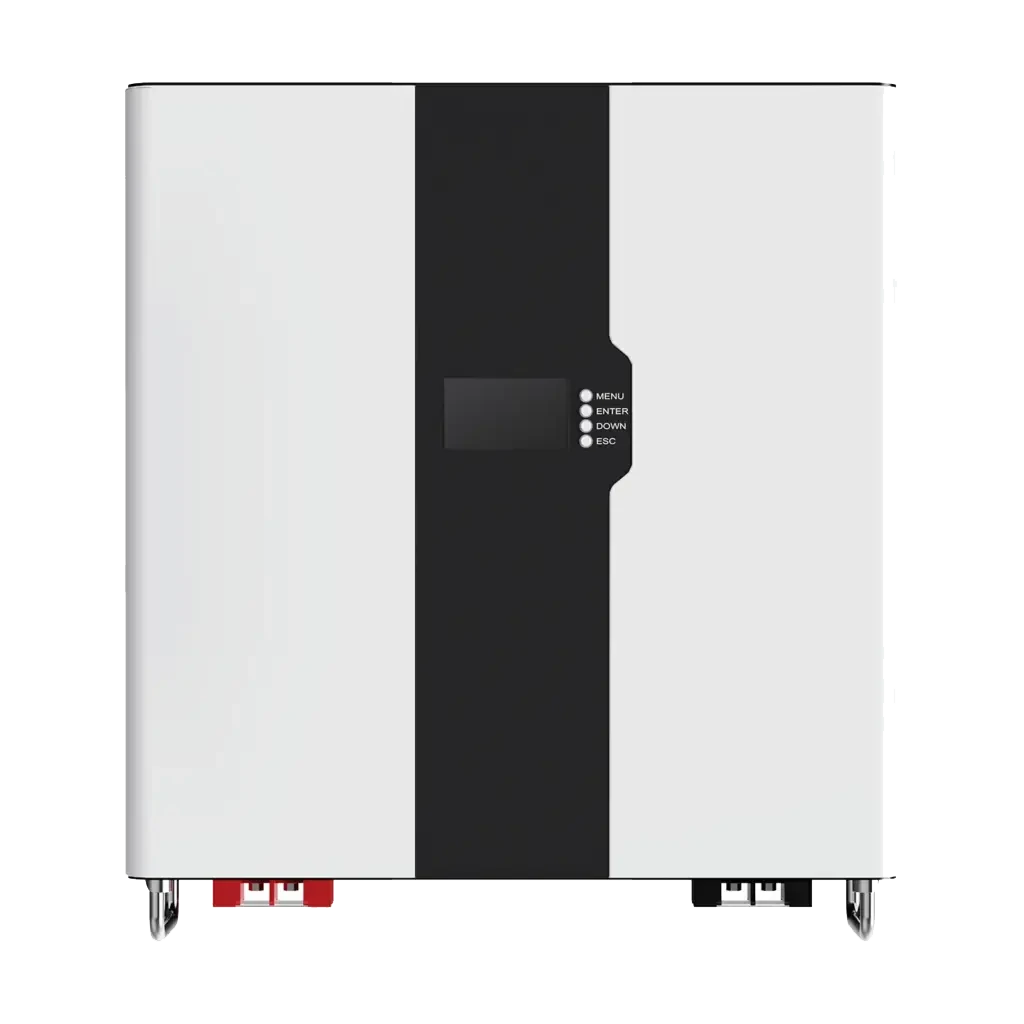

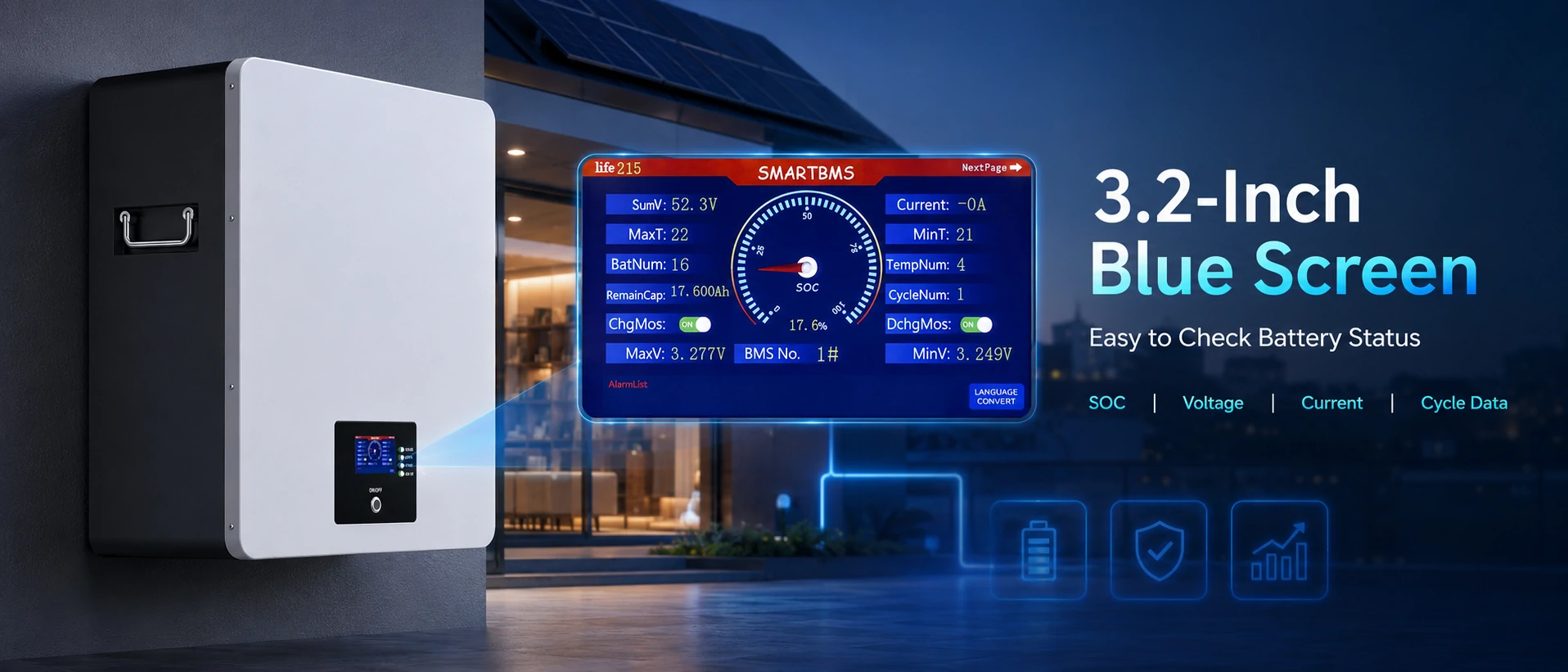

3.2-Inch Button Blue Screen for Easy Battery Status Checking
This wall mounted LiFePO4 battery is equipped with a 3.2-inch button blue screen. It allows users and installers to check key battery information directly from the battery front panel.
The screen can display important operating data such as SOC, voltage, current, battery status, cell information, temperature information, cycle data and basic BMS status. This makes installation, inspection and maintenance more convenient for real home energy storage projects.

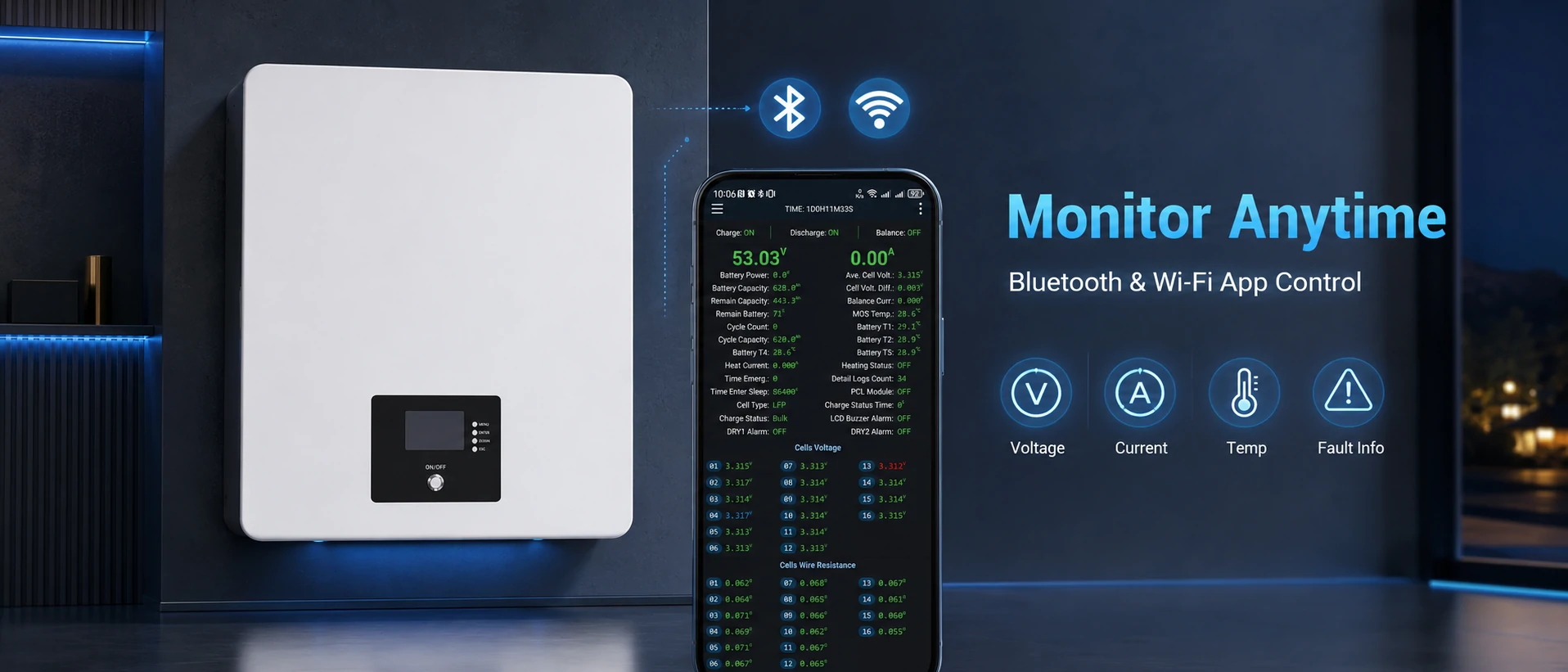

Real-Time Remote Monitoring via Bluetooth & Wi-Fi
With Bluetooth and Wi-Fi support, users can check battery status through a mobile app. This makes the system easier to monitor during daily operation and helps users understand battery performance, remaining power and system status.
For installers and distributors, Bluetooth and Wi-Fi monitoring can also make after-sales checking and basic troubleshooting more convenient. Users can view important battery data without opening the battery cabinet.

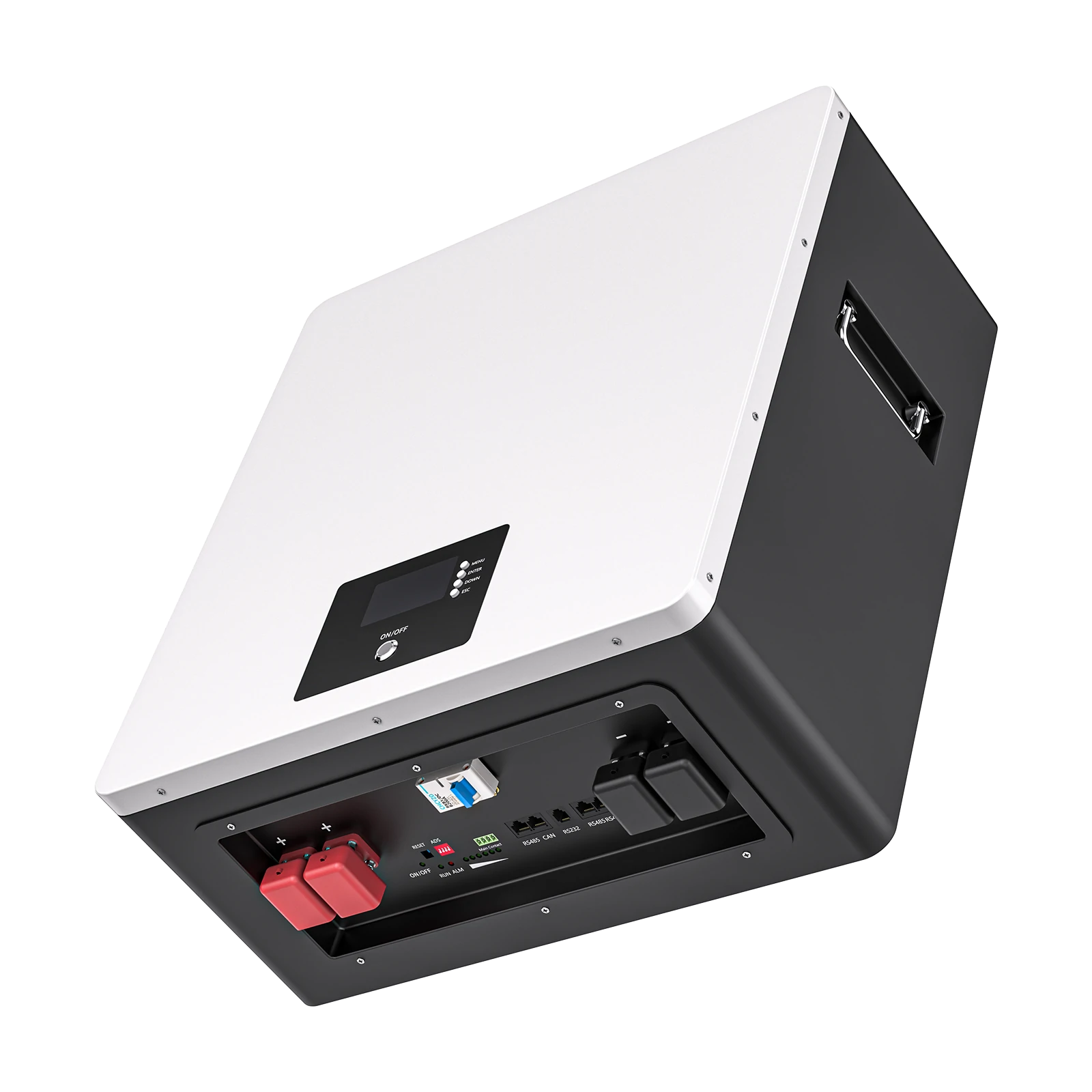

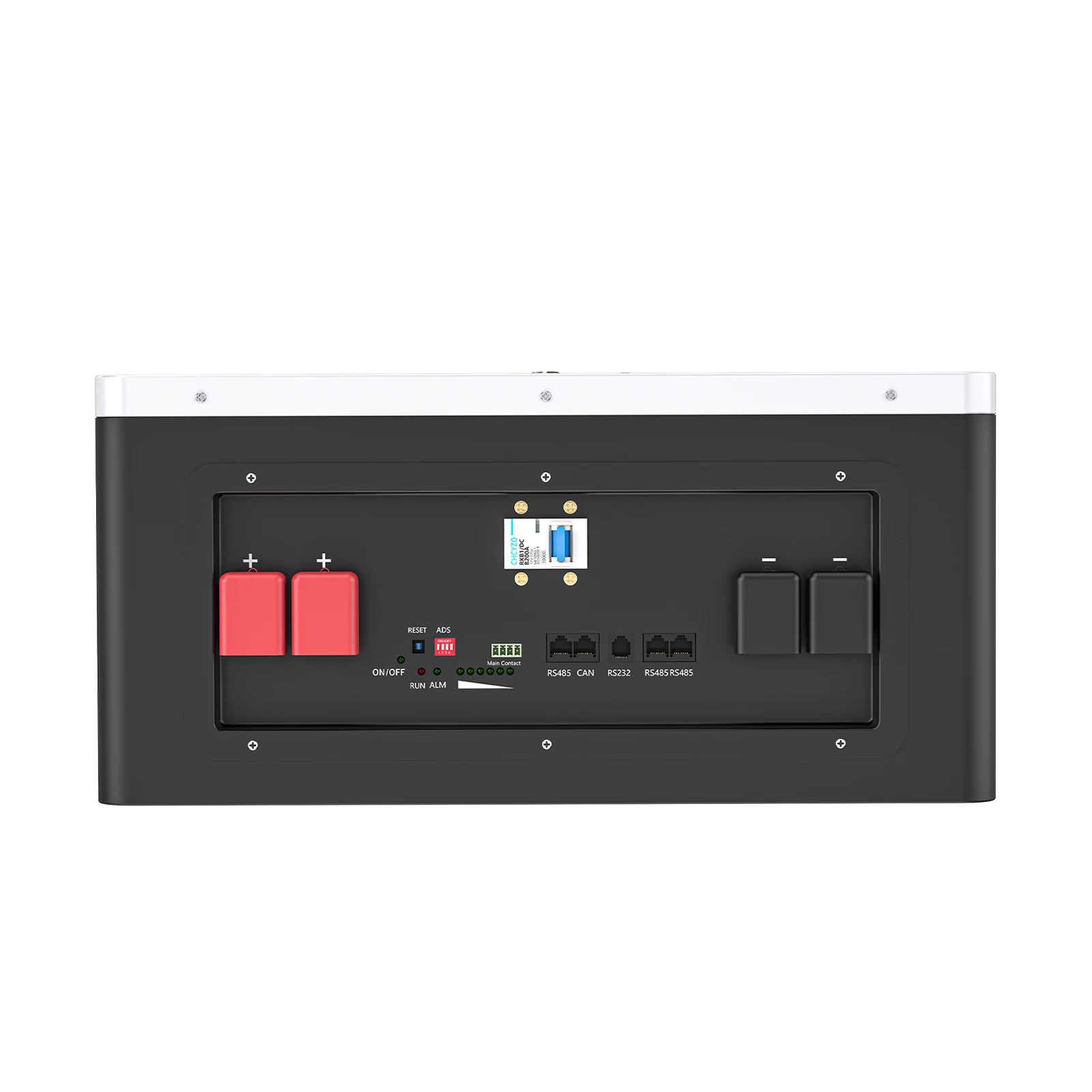

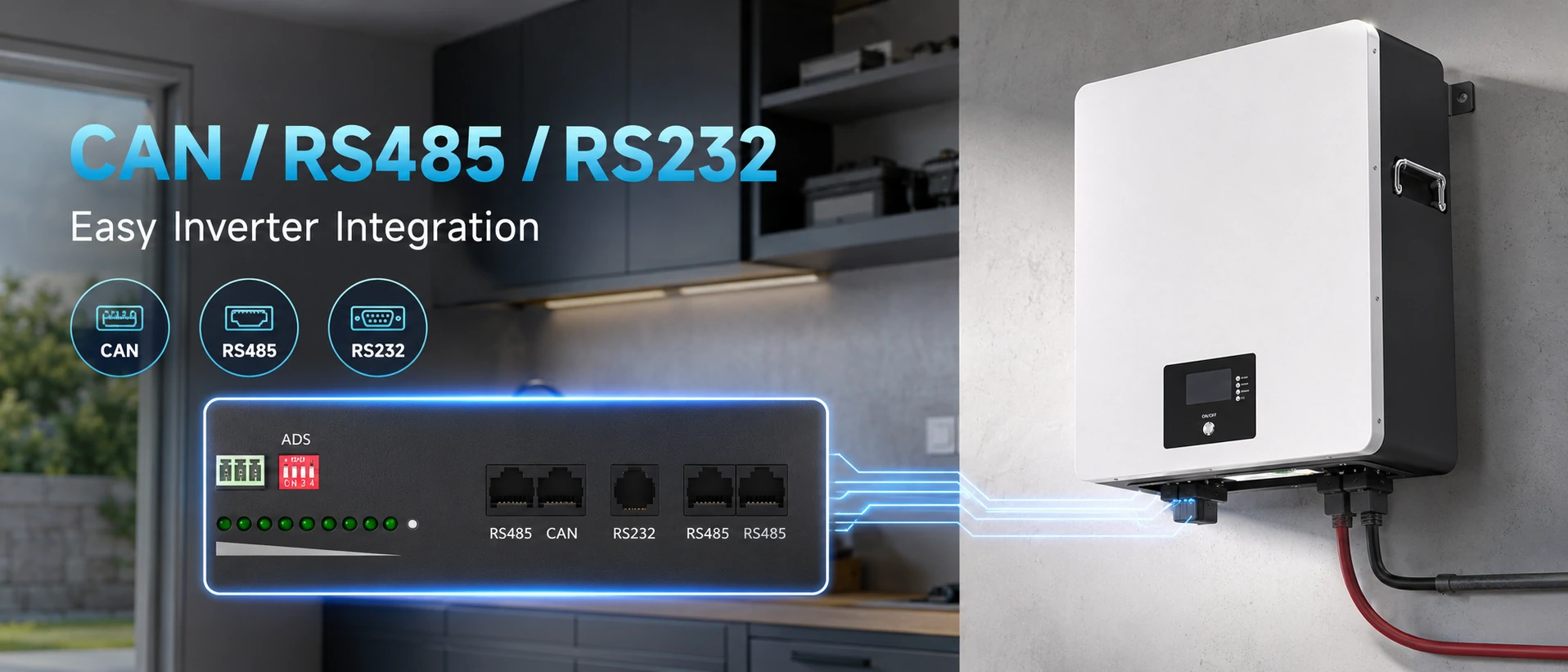

CAN / RS485 / RS232 Communication for System Integration
The Avepower wall mounted battery supports CAN, RS485 and RS232 communication. These communication interfaces help the battery exchange data with compatible inverters, BMS monitoring devices and energy management systems.
For installer-led solar projects, communication protocol matching is important for stable system operation. Before order confirmation, please provide the inverter brand, inverter model and communication protocol requirement so the correct battery communication setting can be confirmed.

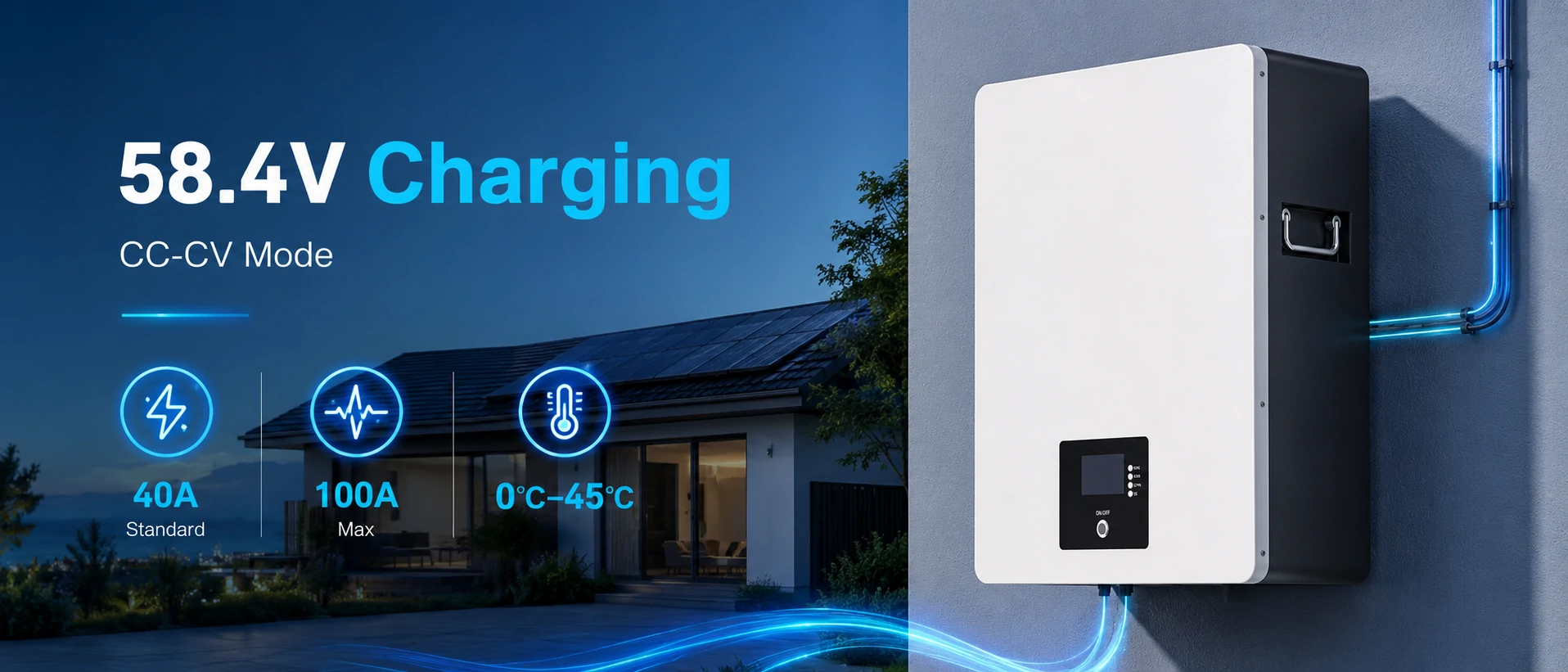

58.4V CC-CV Charging for Stable Battery Operation
The battery pack supports CC-CV charging with 58.4V standard charge voltage. Under standard charging conditions, the battery is charged with 40A constant current and 58.4V constant voltage until the current declines to ≤0.01C.
For faster charging needs, the battery supports up to 100A maximum continuous charge current. The final charge current should be matched with the inverter or charger, cable specification, breaker design and system protection setting.

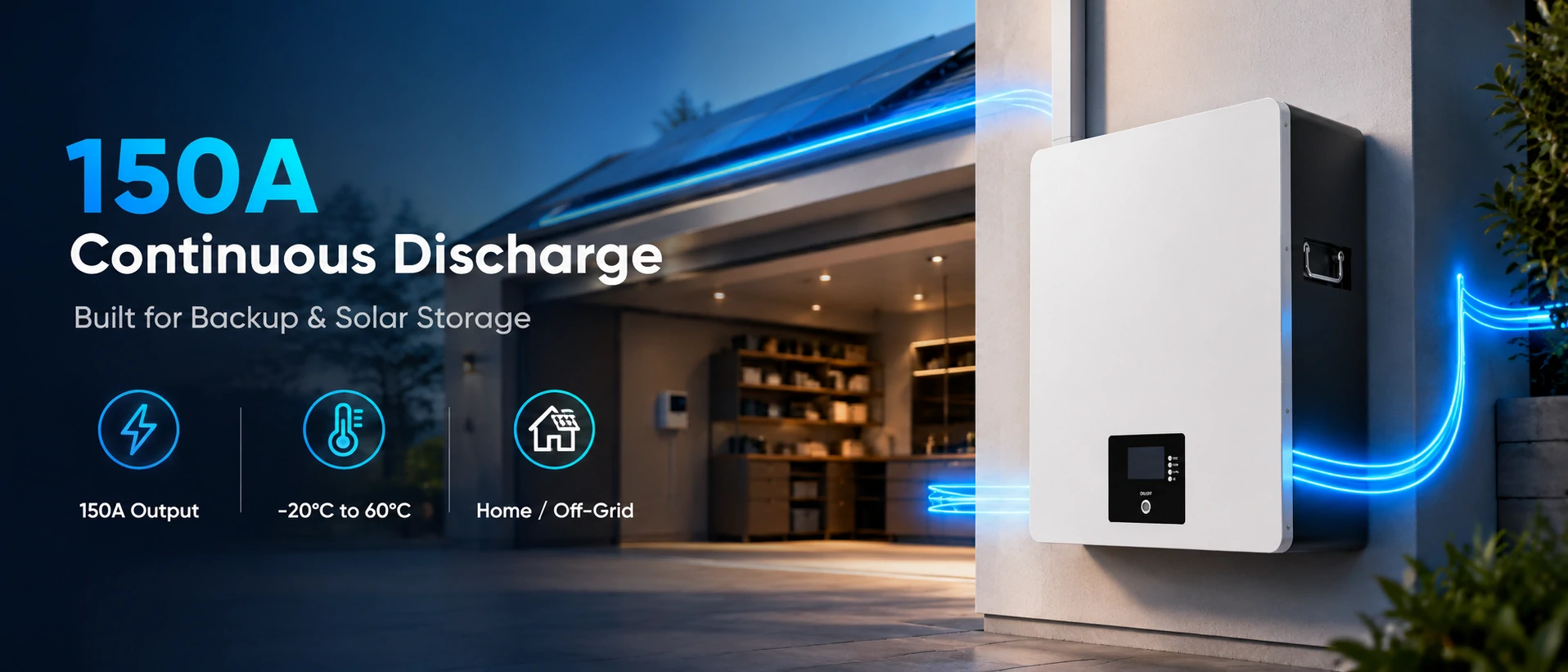

150A Continuous Discharge for Practical Backup Loads
The battery supports up to 150A maximum continuous discharge current. This makes it suitable for residential solar storage systems, home backup power and small energy storage projects that need stable discharge performance.
For real system use, discharge current should be configured according to inverter power, load type, cable size, breaker selection and protection design. Correct system matching helps improve battery safety, system stability and long-term performance.

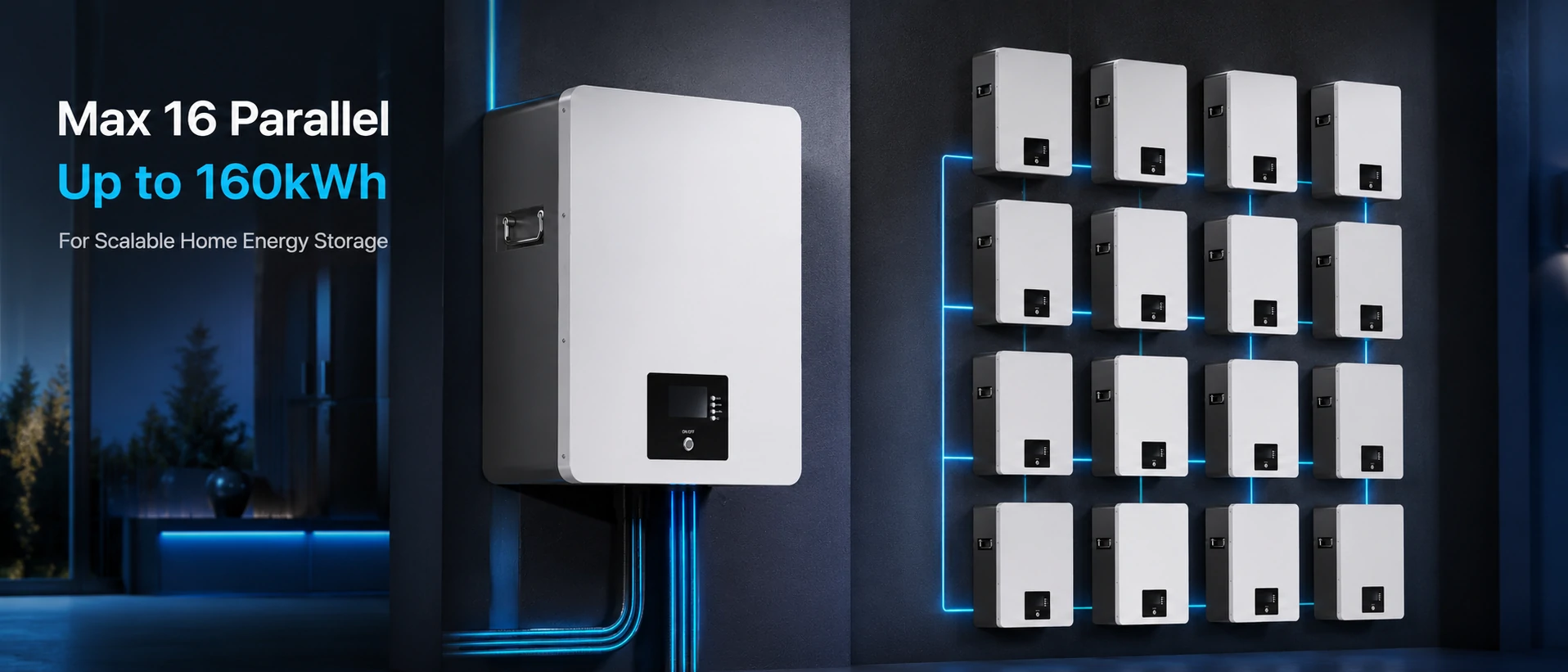

Max 16 Parallel for Scalable Home Energy Storage
The Avepower wall mounted LiFePO4 battery supports flexible parallel expansion. A single battery can be used for basic residential energy storage, while multiple batteries can be connected in parallel to build a larger storage system.
With up to 16 units in parallel, the system can be expanded according to backup time, household load demand, solar storage requirements and project budget.

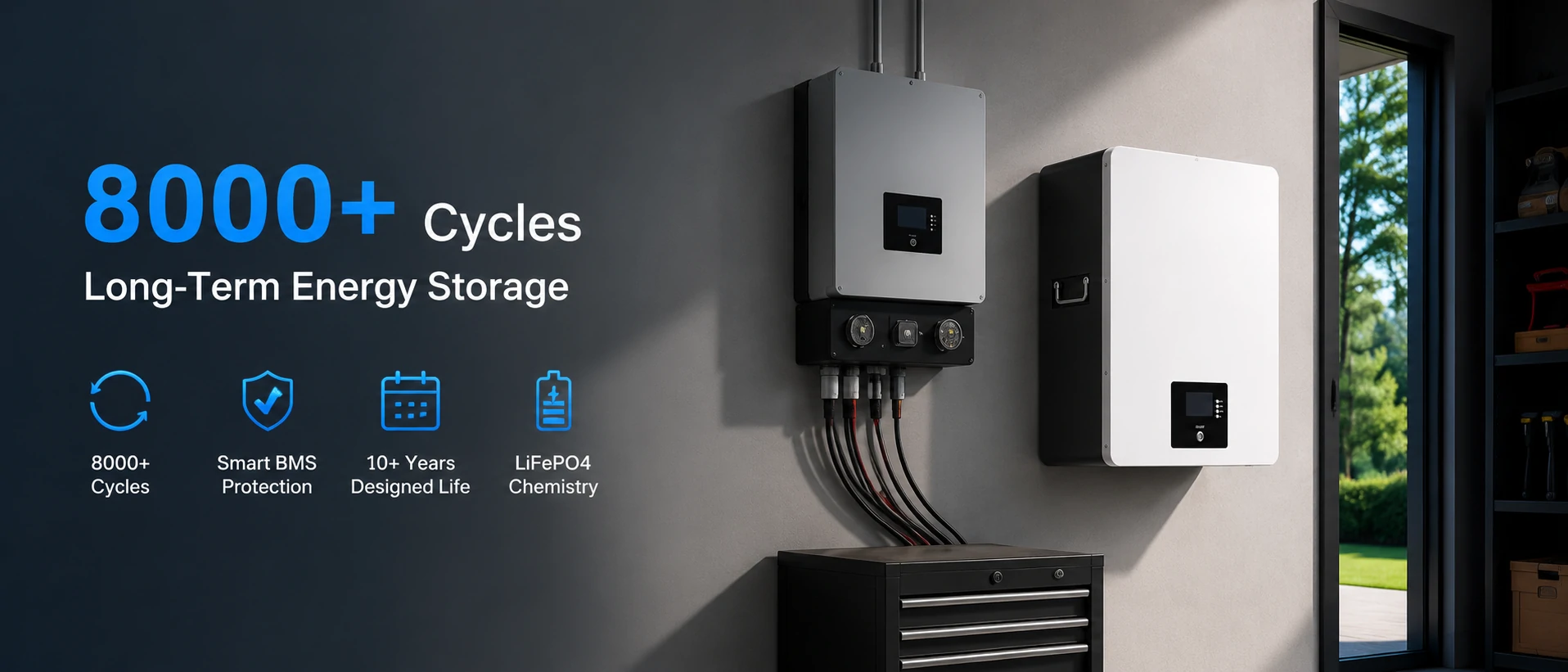

8000+ Cycles for Long-Term Energy Storage Use
This LiFePO4 battery is designed for long-term residential solar storage and backup power applications. With 8000+ cycles at 80% DOD, it can support repeated charging and discharging for daily energy storage use.
LiFePO4 chemistry, smart BMS protection and proper system configuration help improve long-term reliability. For the best performance, the battery should be installed in a suitable environment and used within the recommended voltage, current and temperature range.

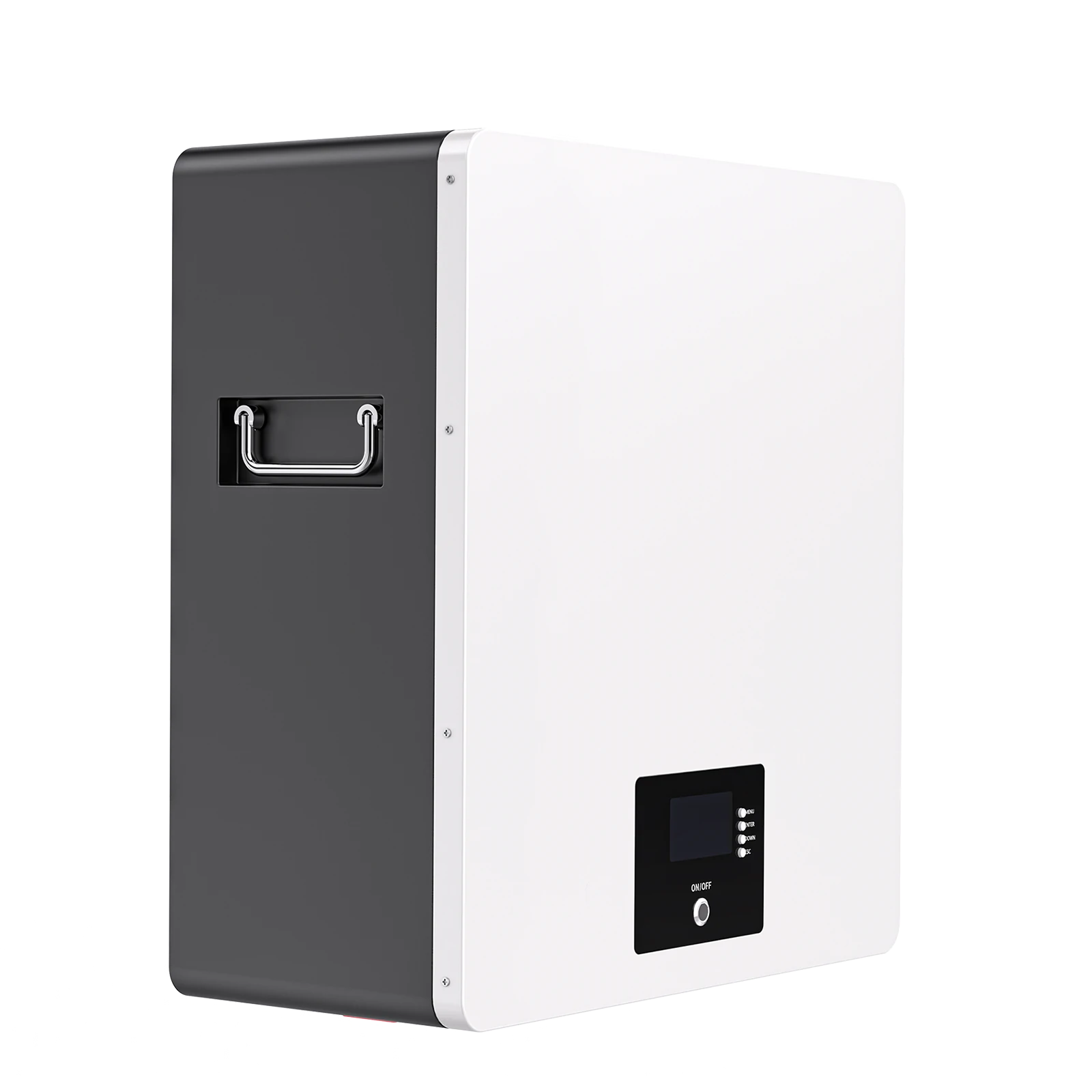

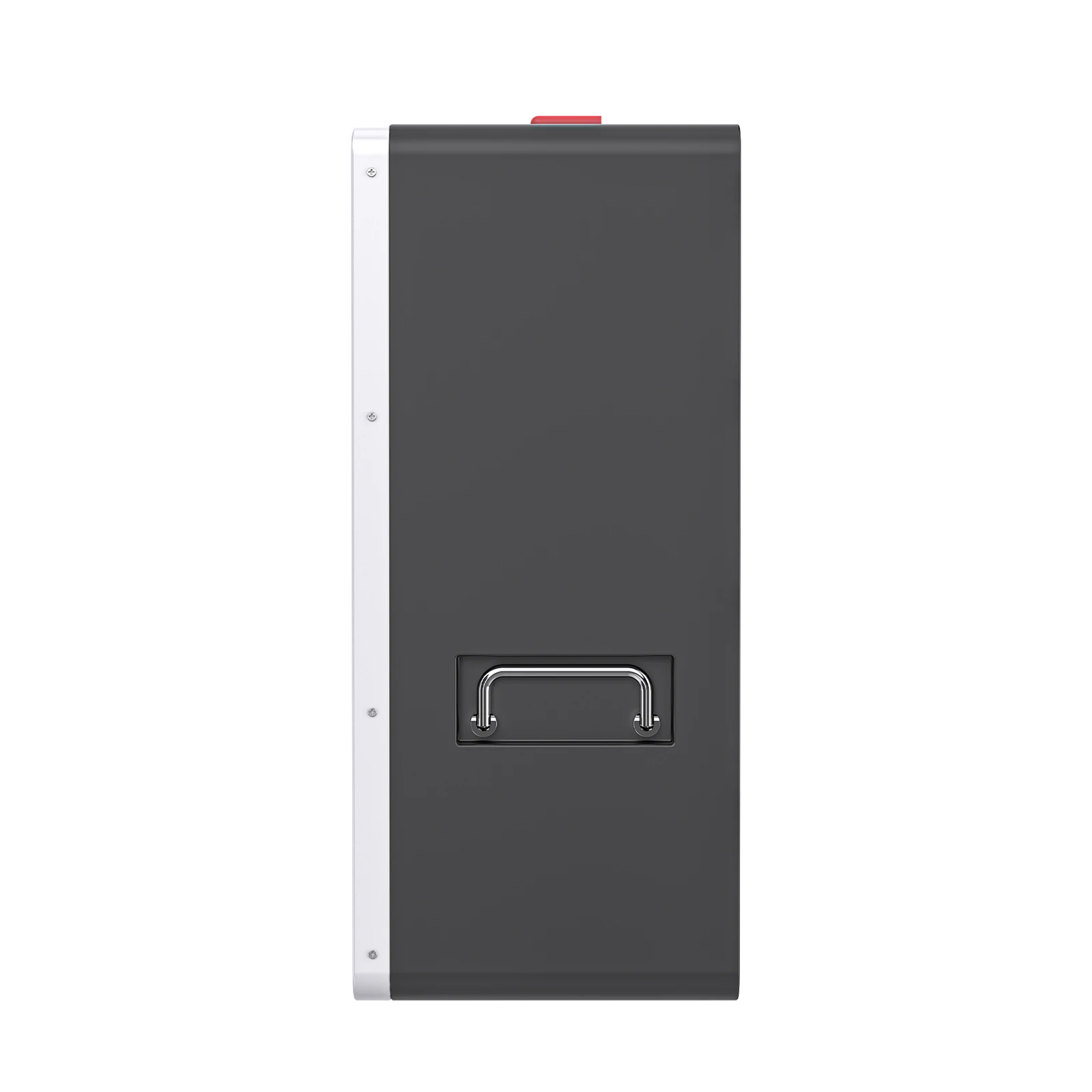

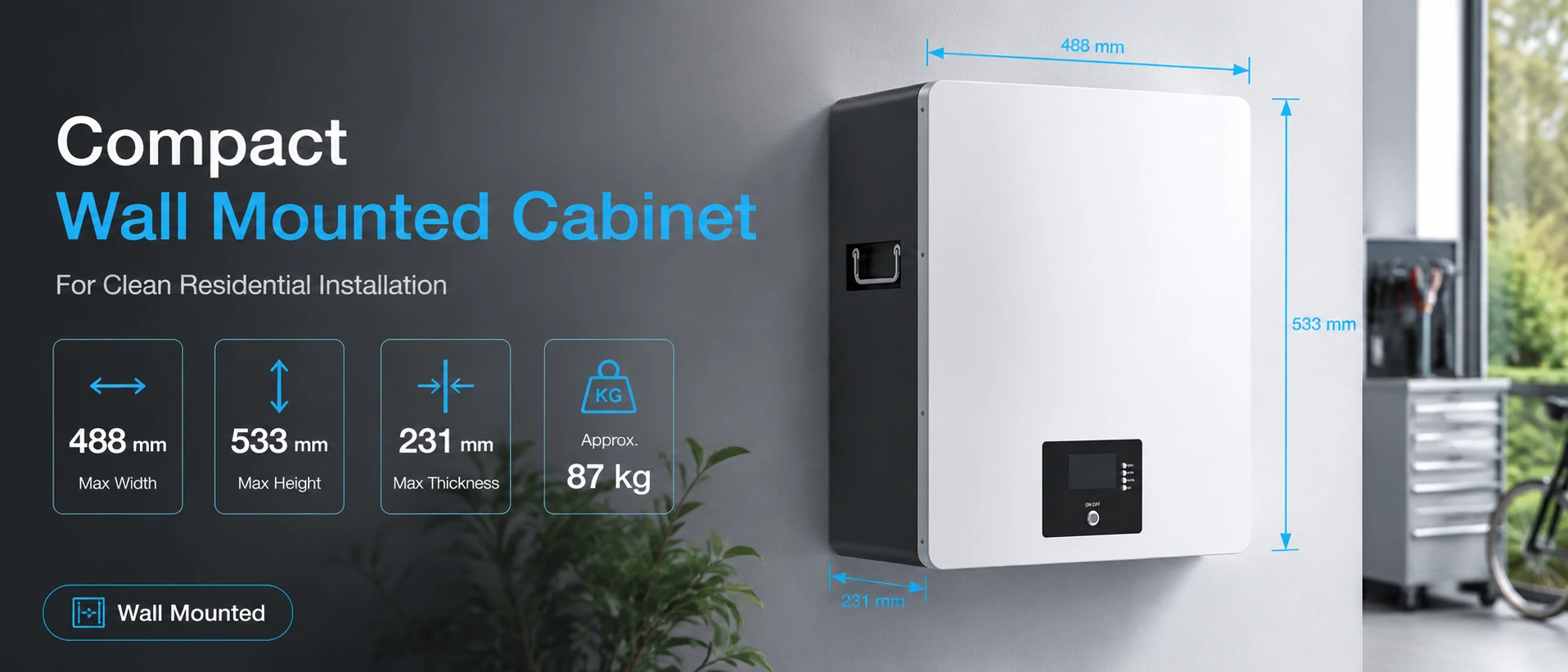

Compact Wall Mounted Cabinet for Clean Installation
The battery uses a compact wall-mounted cabinet structure with a maximum width of 488mm, maximum height of 533mm and maximum thickness of 231mm. The space-saving design is suitable for residential installations where floor space is limited.
It can be installed in suitable indoor or protected locations such as garages, utility rooms, home energy storage rooms, equipment rooms and residential solar system areas. The wall-mounted structure helps keep the battery away from the floor and supports a cleaner cable layout.
Designed for Stable Operation in Different Conditions
The battery is designed to charge within 0°C to 45°C and discharge within -20°C to 60°C. This supports daily residential energy storage use in different environments when the battery is installed in a suitable indoor or protected location.
Low-temperature charging should be carefully managed because charging at very low temperatures may reduce usable capacity and affect battery life. Long-term storage should avoid direct sunlight, water, heavy pressure, mechanical impact and high-temperature environments.
Customize Your Wall Mounted Solar Battery
Avepower wall mounted battery supports OEM and ODM customization for distributors, installers, wholesalers and energy storage project customers. Customization can include battery appearance, capacity, BMS configuration, communication protocol, screen design, Bluetooth/Wi-Fi monitoring, label design, packaging and documentation support.

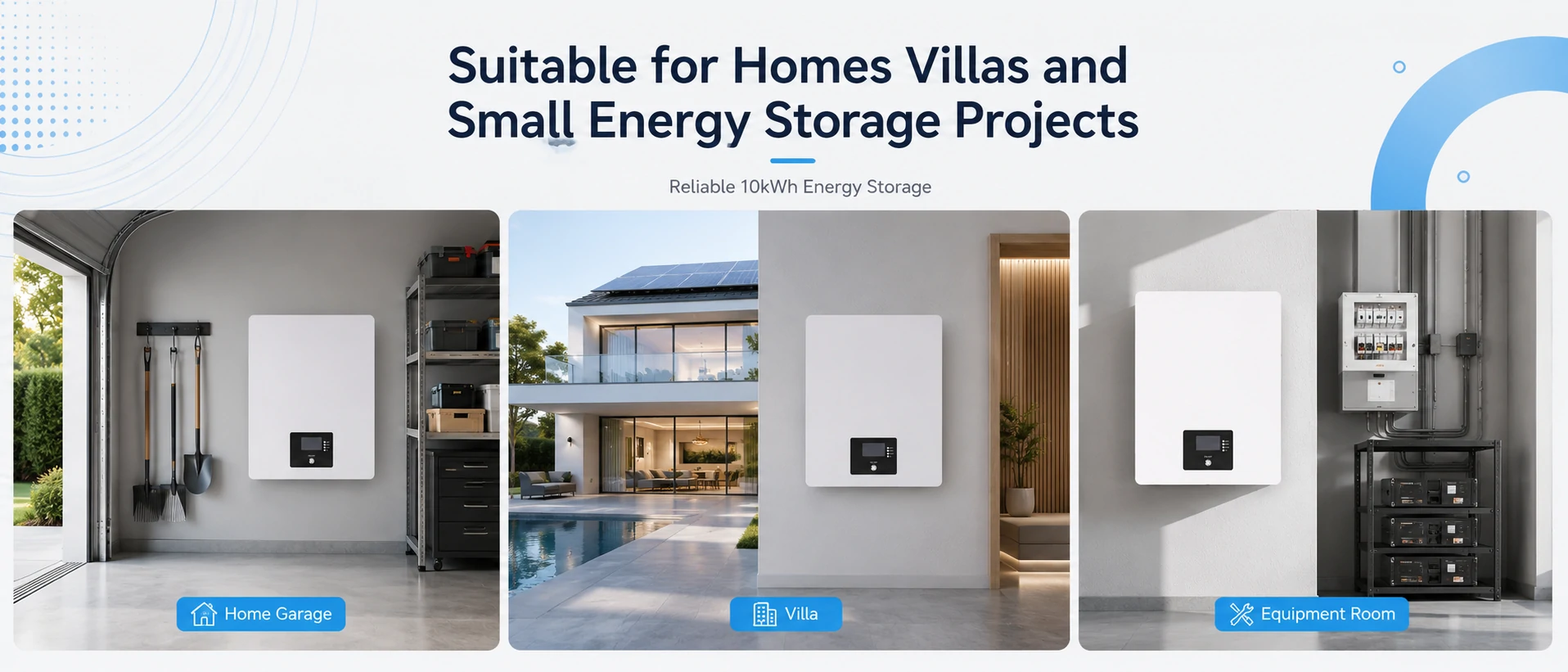

Suitable for Homes, Villas and Small Energy Storage Projects
This 48V 10kwh Powerwall home battery backup system is ideal for grid tied solar homes, off grid cabins and reliable backup power during outages. It stores excess solar energy generated during the day and releases it at night or during peak tariff periods, helping you reduce electricity bills while keeping your essential household loads running.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
200Ah |
|
Battery Type |
LiFePO4 |
|
Nominal Energy |
10kWh |
|
Output Power |
10kW |
|
Charge Current |
100A |
|
Discharge Current |
200A |
|
Charge Mode |
CC-CV |
|
Communication |
CAN/ RS485/ RS232 |
|
Cycle Life |
＞ 8000（ @25℃， 80% DOD） |
Inverter Compatibility
Our batteries are designed to work seamlessly with most major inverter brands. You can install them with confidence, knowing they integrate easily with your existing solar or power system for reliable energy storage.
Only some common compatible inverter models are listed here. For the full list or to check a specific model, please visit the Avepower Inverter Compatibility List.
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
The standard charging method is 40A constant current and 58.4V constant voltage, continuing until the charging current drops to ≤0.01C.
The battery has passed multiple safety and reliability tests, including:
Short-circuit test (20°C and 60°C)
Overcharge test
Forced discharge test
Thermal exposure test (130°C)
Free-fall and vibration tests
All tests meet the criteria of no fire, no explosion, and no leakage.
For long-term storage:
Store at room temperature (0–45°C).
Keep the battery charged between 30%–50%.
Recharge at least once every 6 months to prevent over-discharge.
The 10kwh battery pack has a nominal capacity of 200Ah and a nominal voltage of 51.2V. It is assembled using 16 cells (3.2V each) in series (16S configuration), making it suitable for 48V-class energy storage systems commonly used in solar and backup applications.
