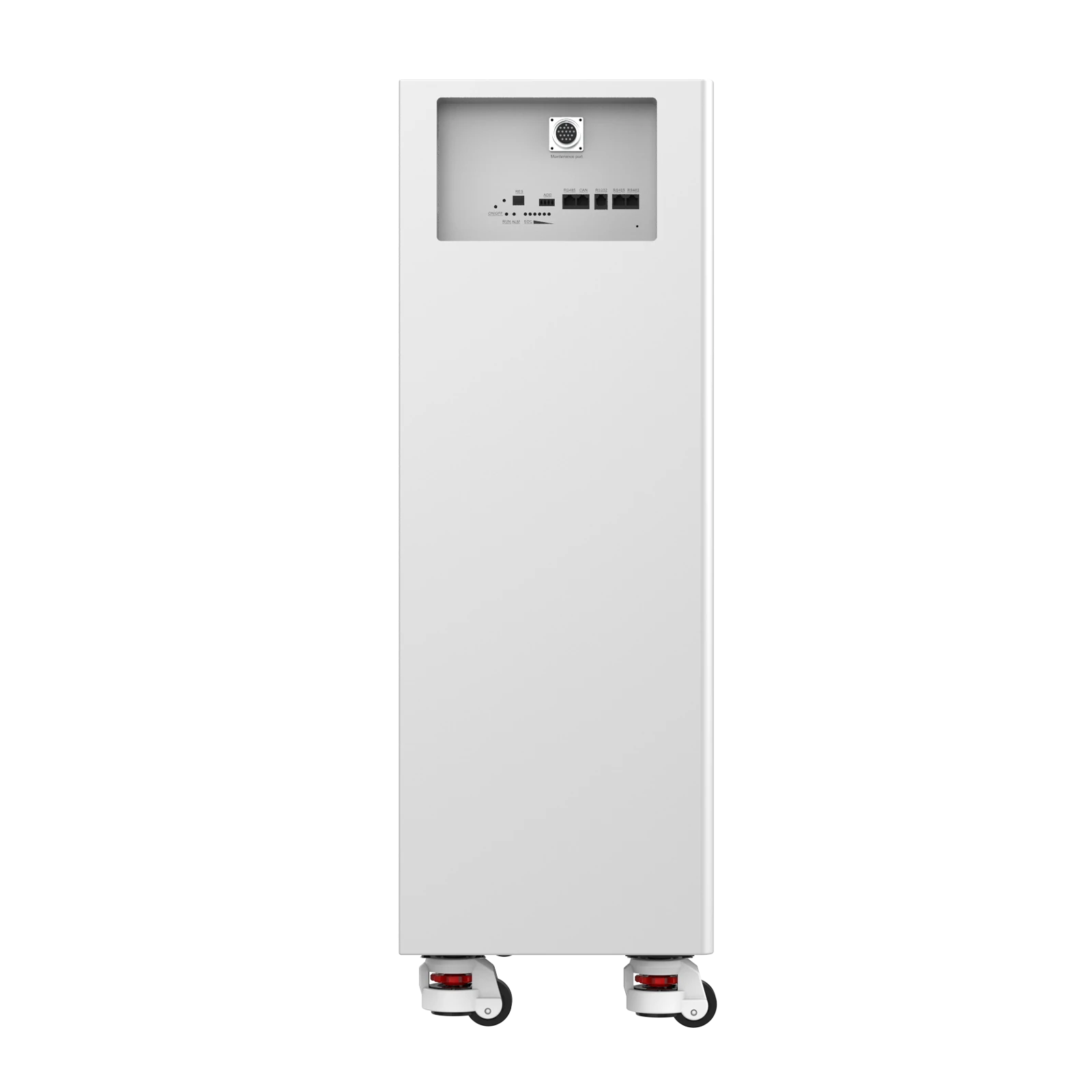

Avepower 48V 600Ah 30kWh Solar Battery LiFePO4 Vertical Home Storage
The 48V-class 600Ah 30kWh LiFePO4 battery is built for whole-home backup, off-grid and small commercial energy storage.
- For Solar Storage & Backup
- OEM / ODM Available
- CE | CB | RoHS | UN38.3 | FCC | Test Report
Compatible with supported inverter platforms.
Send us your inverter model for verification.
Need help sizing?
Inverter Model + Required kWh + Country → Free Configuration
- Bluetooth & WiFi Monitoring
- 100% Customized
- Up to 16 Units in Parallel
- 8000+ cycles@80% DOD
Why Partner with Avepower
Global Certifications
Certified with UN38.3, MSDS, CE, CB, FCC, RoHS, IEC, and UL standards.
High Compatibility
Compatible with leading inverters including Growatt, GoodWe, SMA, Solis, and Deye.

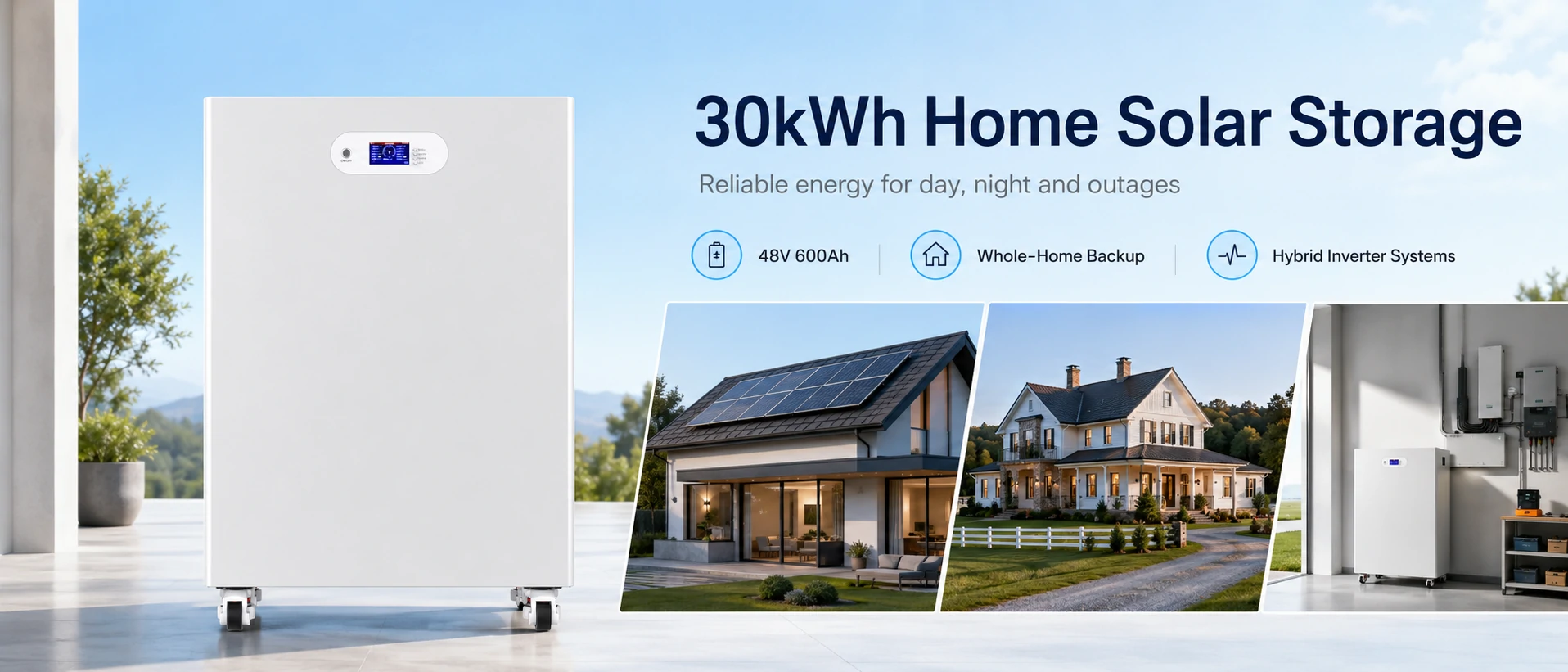

Built for Home Solar Storage and Off Grid Backup
This 48V 600Ah LiFePO4 battery provides 30kWh nominal energy in one vertical cabinet, making it suitable for homes and small projects that need more storage than a standard 5kWh, 10kWh or 15kWh battery.

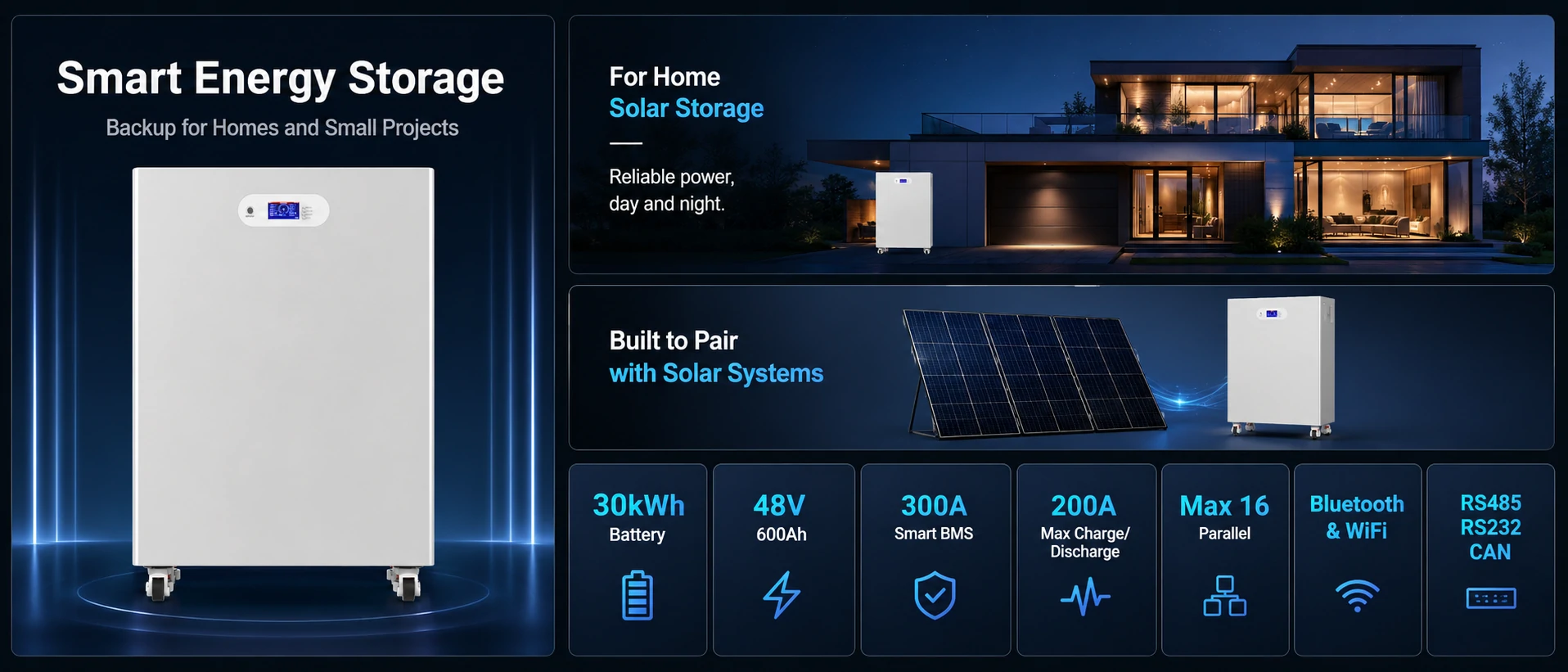

High-Capacity 30kWh Battery for Home Solar Storage
For solar storage applications, the battery can store excess PV energy during the day and release power at night, during peak tariff periods or during grid outages. It helps improve solar self-consumption, reduce grid dependence and provide backup energy for essential household or project loads.

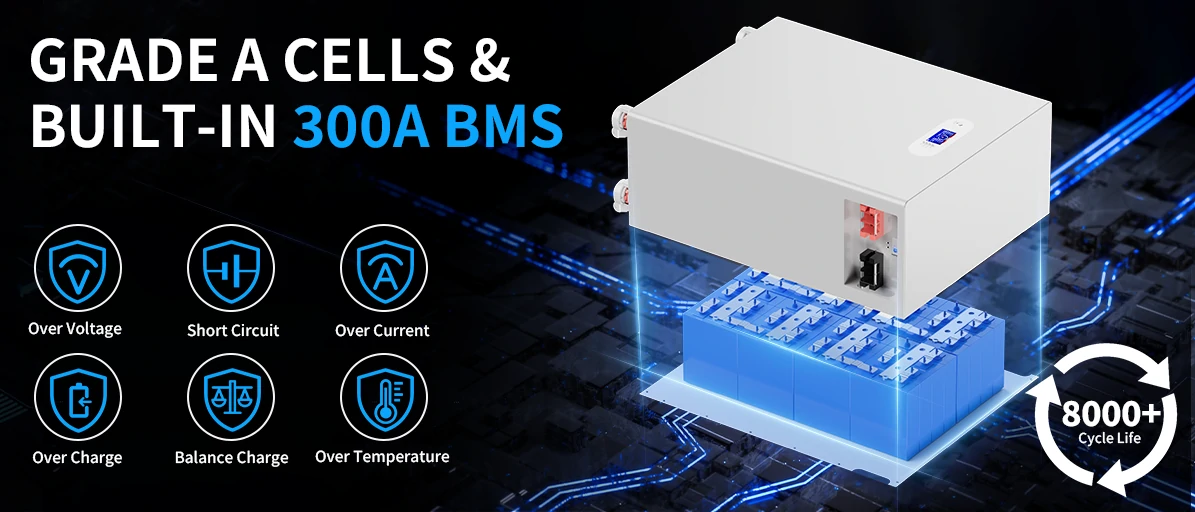

300A Smart BMS for Safer Charging and Discharging
A built in 300A smart protection board continuously monitors pack voltage, current, and temperature to keep the system stable and safe under daily cycling. The control logic helps prevent abnormal charging and discharging conditions, improving consistency and extending service life in real world applications.

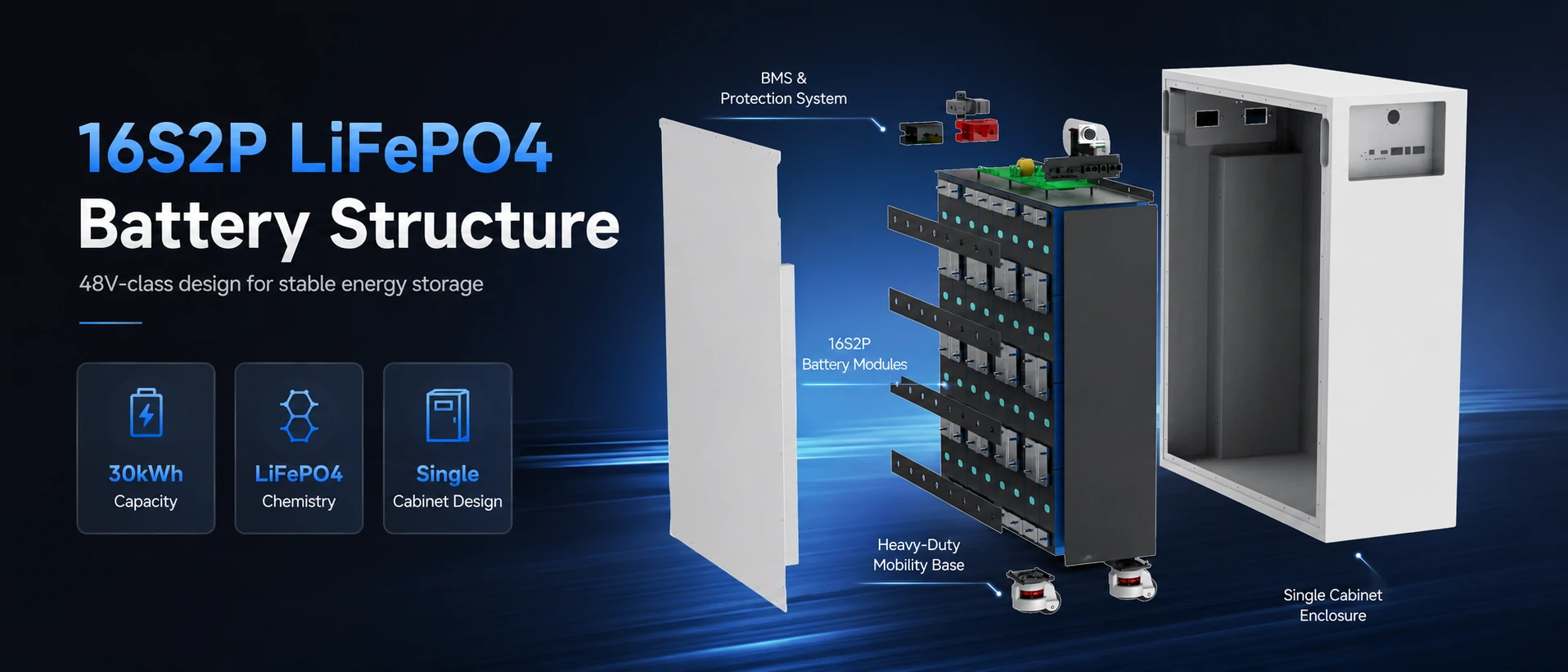

16S2P LiFePO4 Battery Structure for Stable Energy Storage
The 30kWh 48V-class solar battery uses a 16S2P LiFePO4 configuration, providing stable energy storage for residential solar, off-grid backup, and hybrid inverter systems.

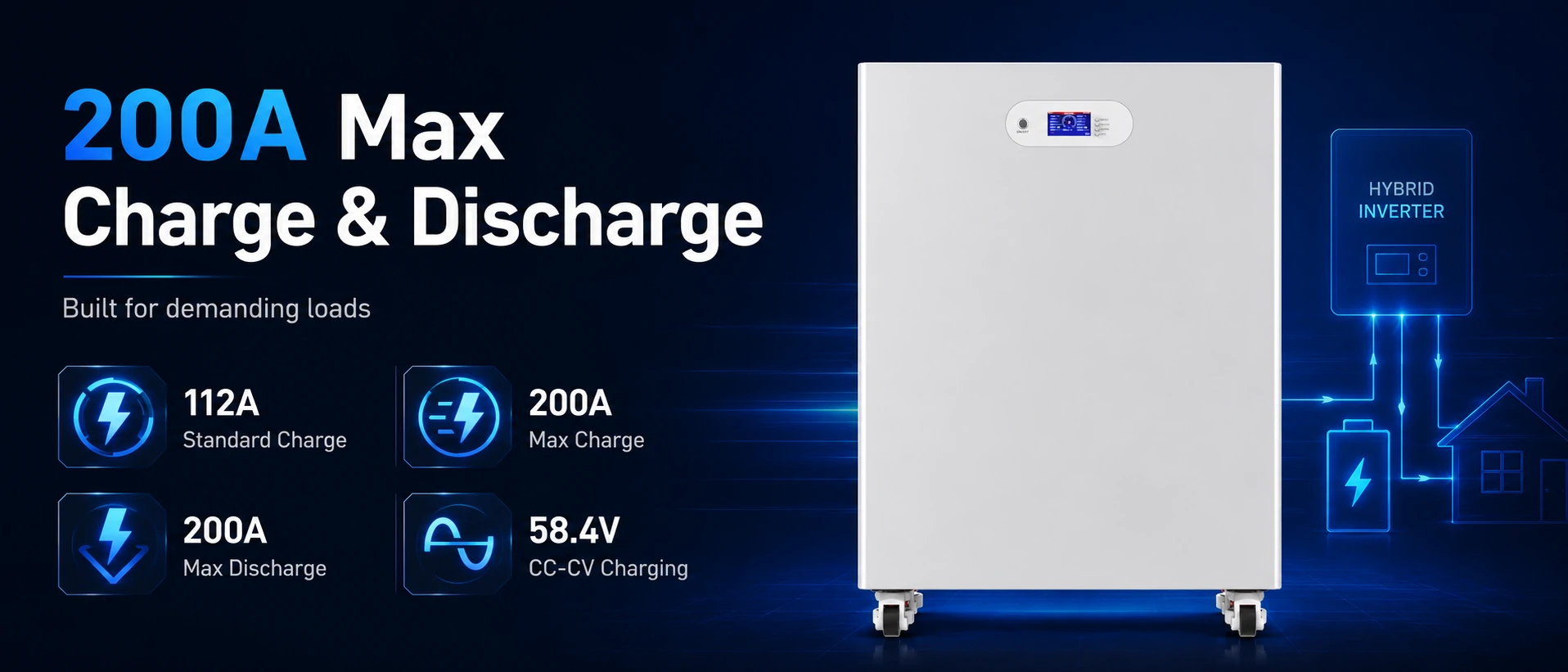

200A Max Charge and Discharge Current for Demanding Loads
The 30kWh solar battery supports 58.4V CC-CV charging, with a 112A standard charge current, 200A maximum charge current, and 200A maximum discharge current. It is suitable for compatible hybrid and off-grid inverter systems.
CAN, RS485 and RS232 Communication for Inverter Integration
The vertical 30kWh solar battery supports CAN, RS485, and RS232 communication for inverter and EMS integration. It enables monitoring of SOC, voltage, current, temperature, alarms, and protection status, with communication matching available for different inverter systems.

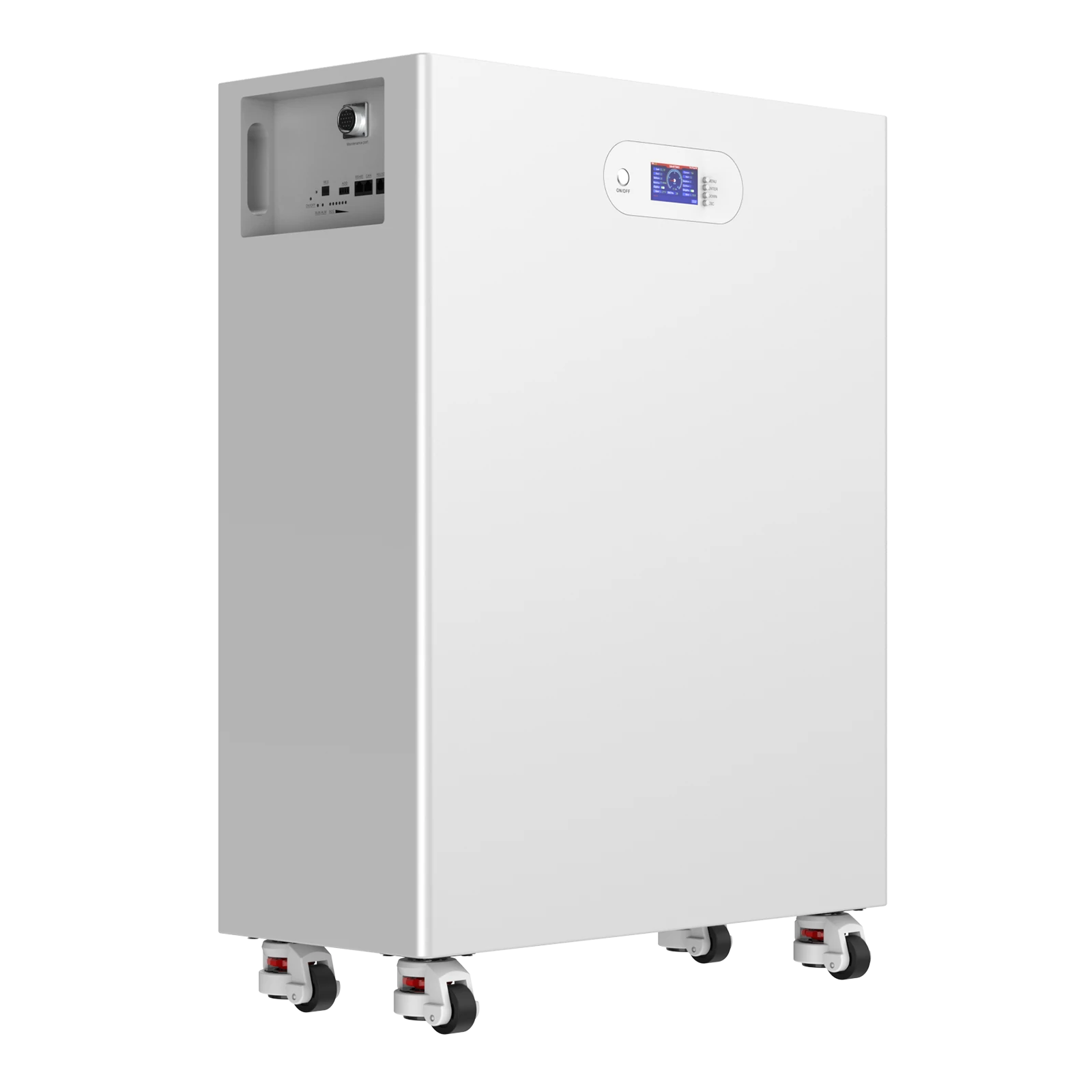

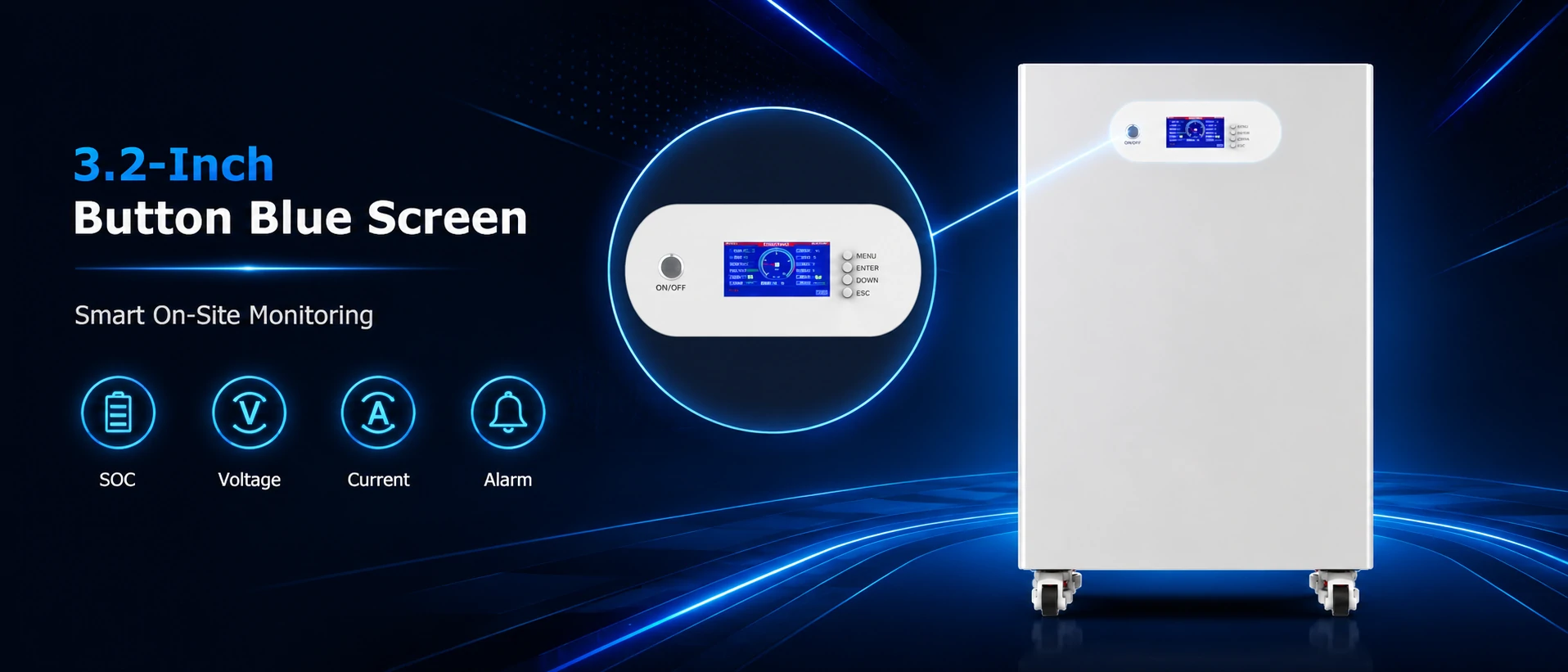

3.2-Inch Button Blue Screen
The 30kwh solar battery is equipped with a 3.2-inch button blue screen, giving installers and users a clear way to check battery status directly on the cabinet. During installation, commissioning or daily inspection, key information such as SOC, voltage, current, temperature, operating status and alarm status can be viewed more conveniently without opening the battery enclosure.

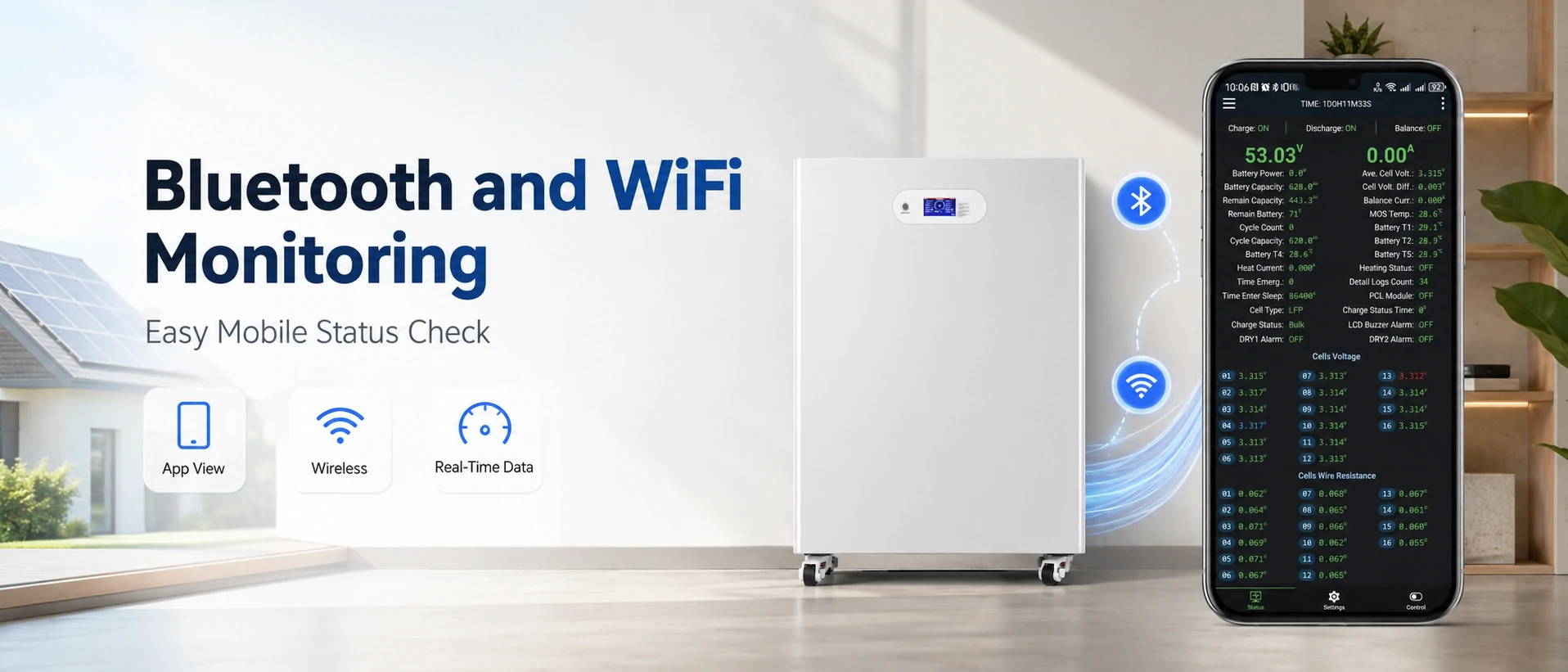

Bluetooth and WiFi Monitoring
The 30kwh solar battery supports Bluetooth and WiFi monitoring, allowing users and installers to check battery information through a mobile device. This makes daily operation more convenient, especially when users want to monitor SOC, voltage, current, cell status, temperature, alarm information and basic system data without standing in front of the battery cabinet.

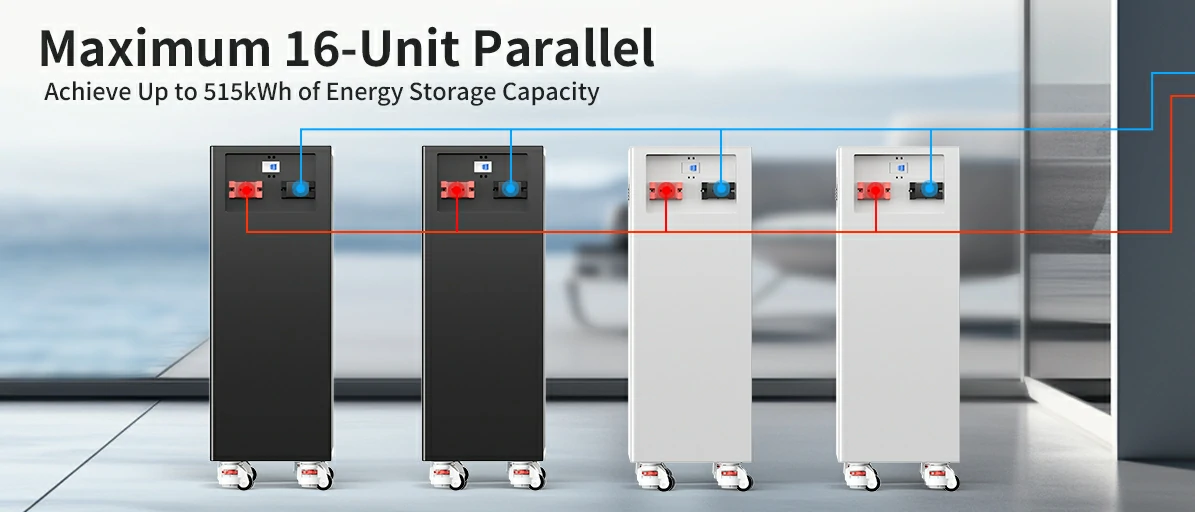

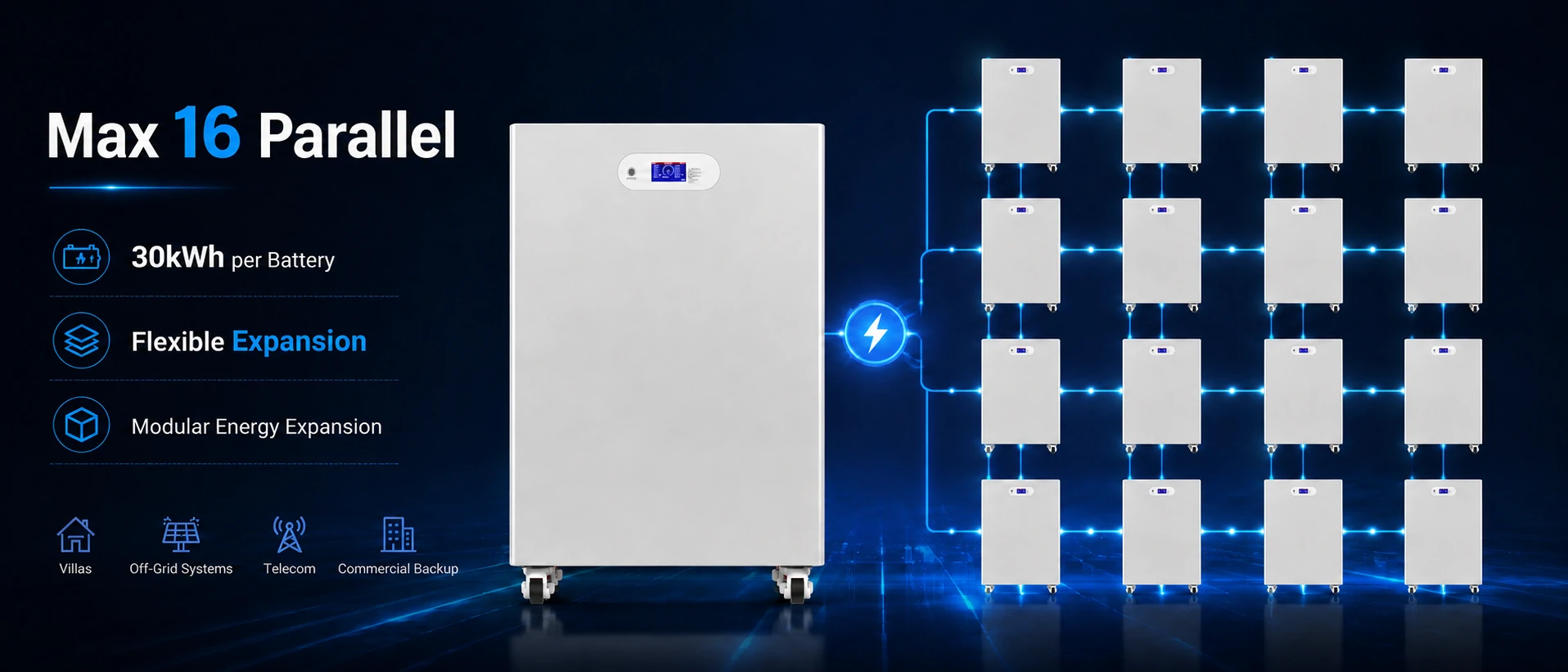

Expandable Up to 16 Units in Parallel
The 30kWh battery supports up to 16 units in parallel, allowing flexible system expansion based on load demand, backup time, and project requirements. This gives installers and distributors a scalable solution that can start with one cabinet and grow over time.

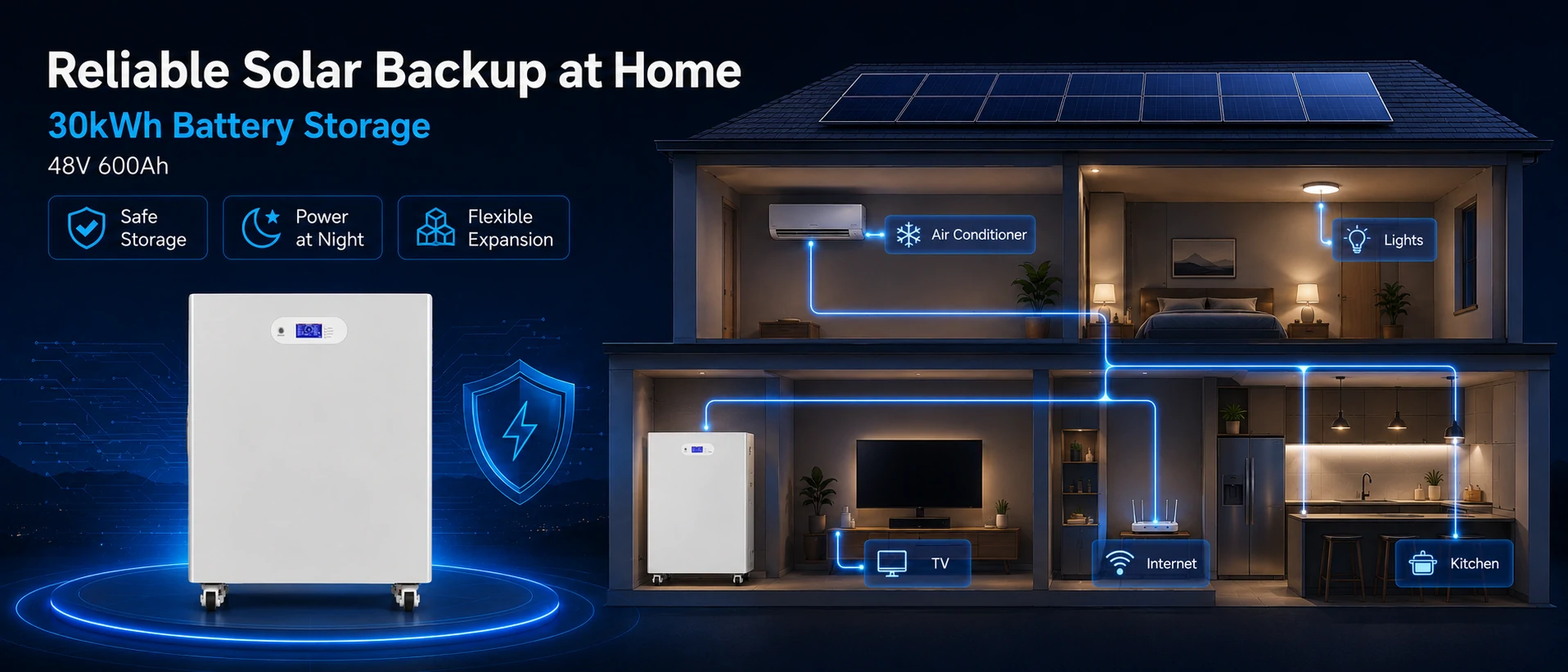

Reliable Solar Backup at Home

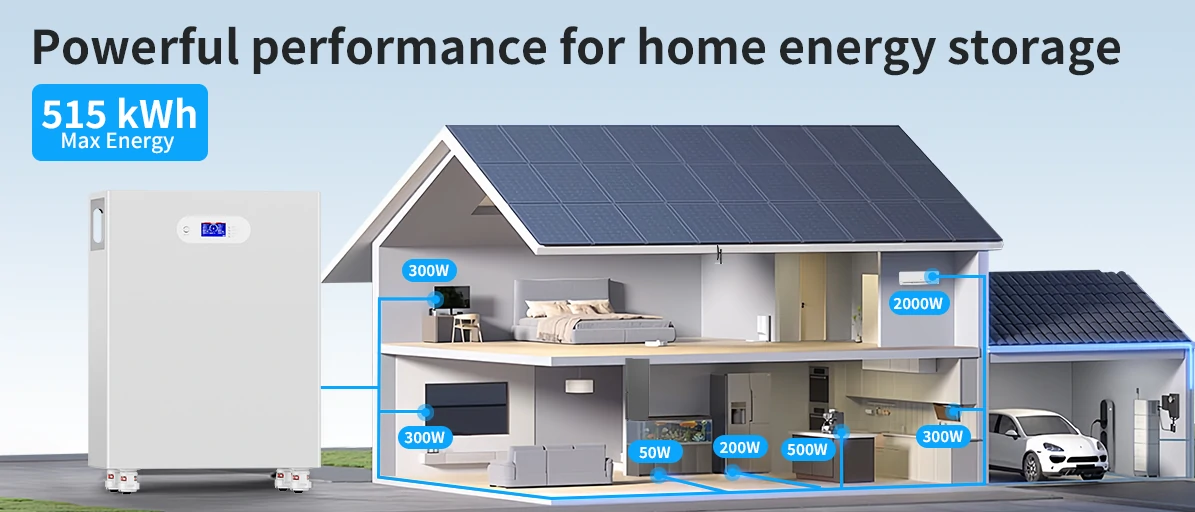

This 48V 600Ah 30kWh battery storage system is designed to support daily home energy use, solar self-consumption and backup power during grid outages. It stores solar energy during the day and helps power essential household loads such as lighting, air conditioning, TV, kitchen appliances and internet equipment at night or during power interruptions.

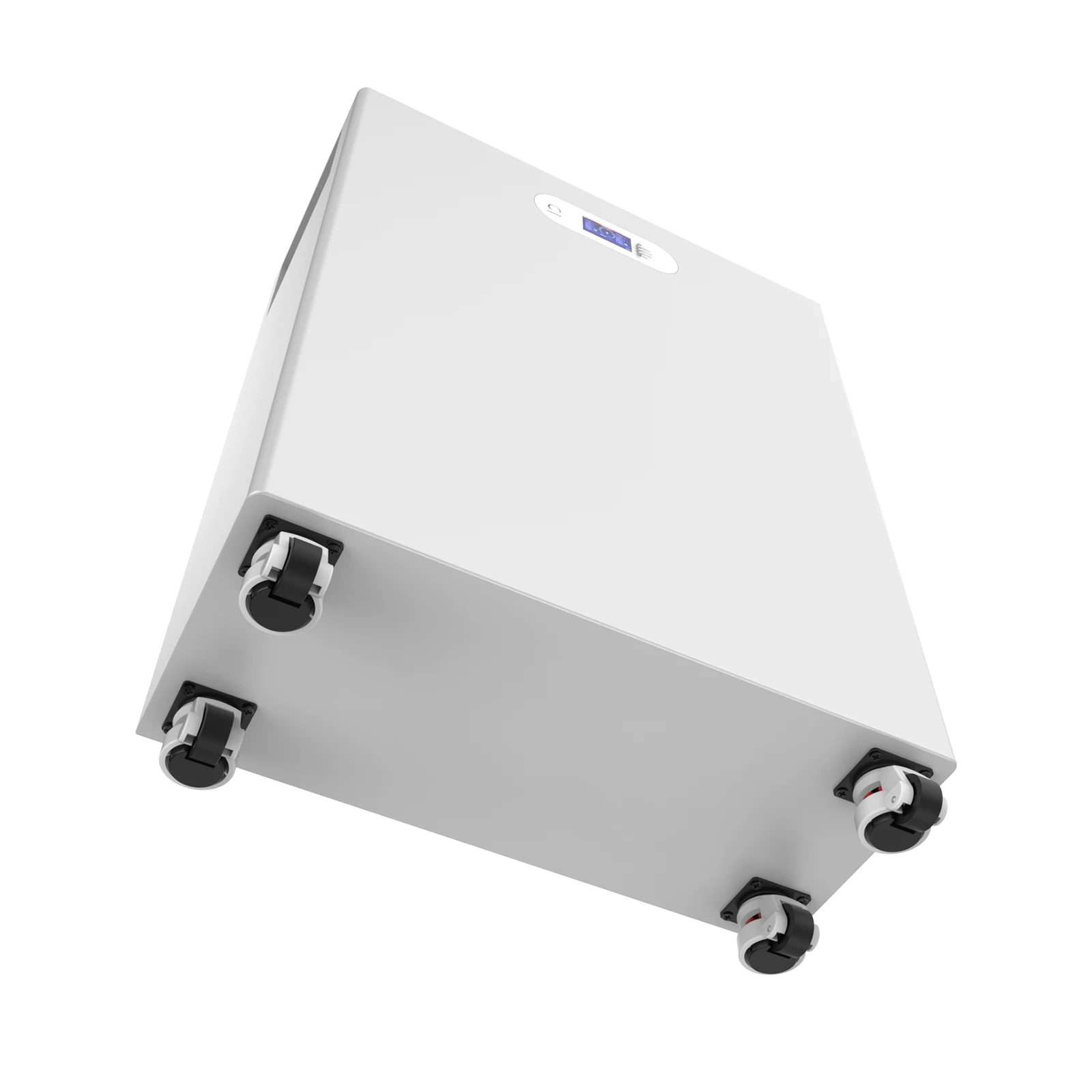

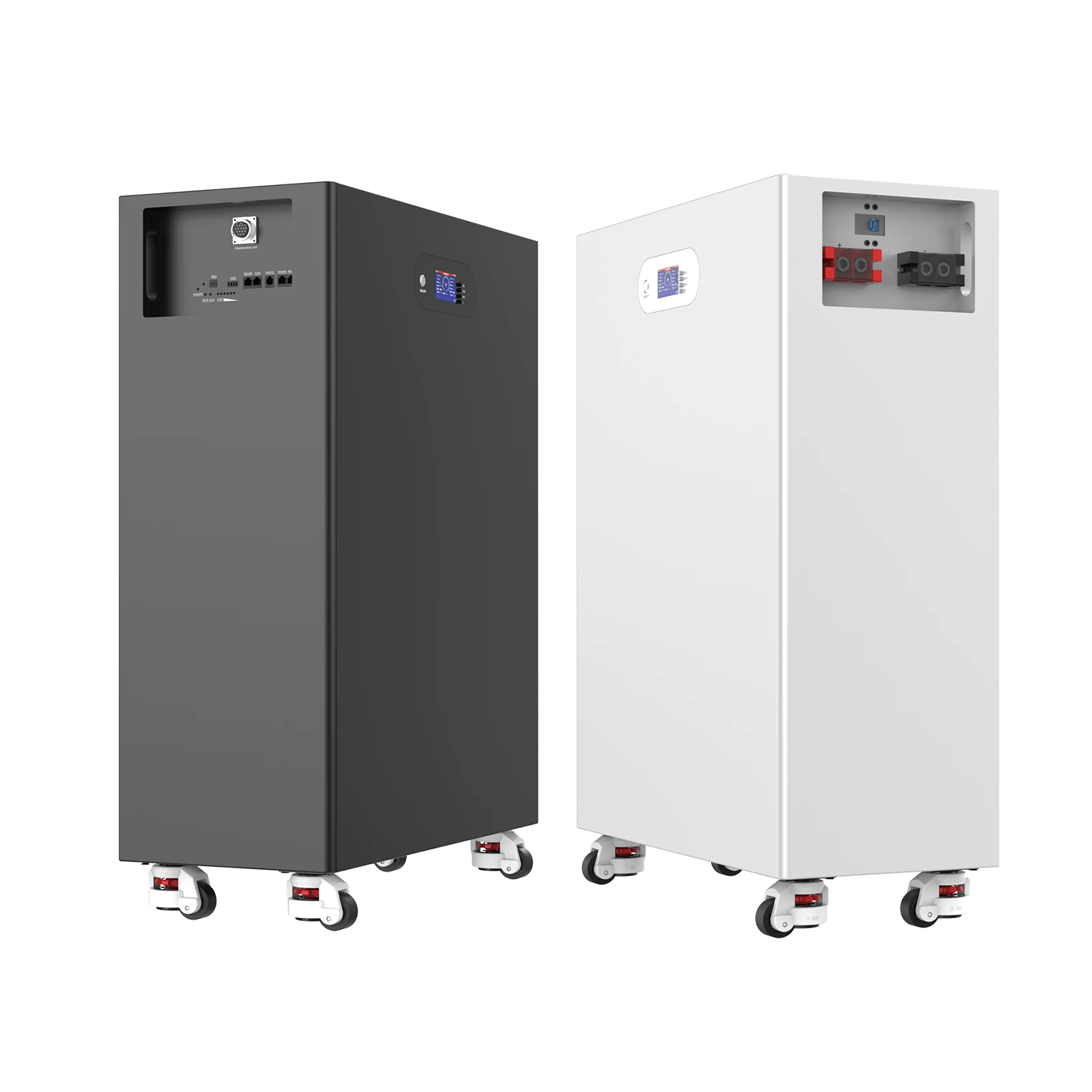

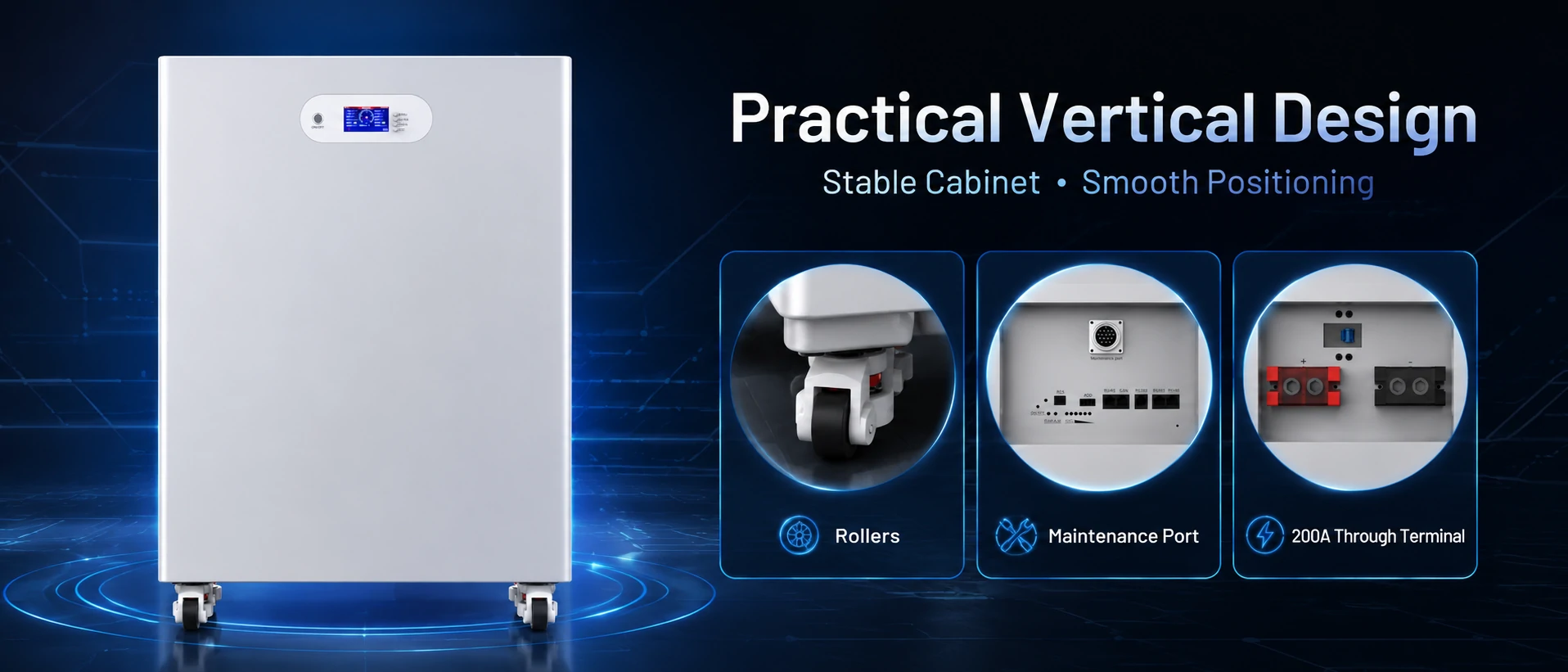

Practical Vertical Cabinet Design with Rollers
The 30kwh solar battery uses a vertical cabinet design for floor-standing installation. The cabinet includes rollers for easier movement and positioning during installation. This is useful for installers when moving the battery into garages, utility rooms, equipment areas or protected indoor spaces.

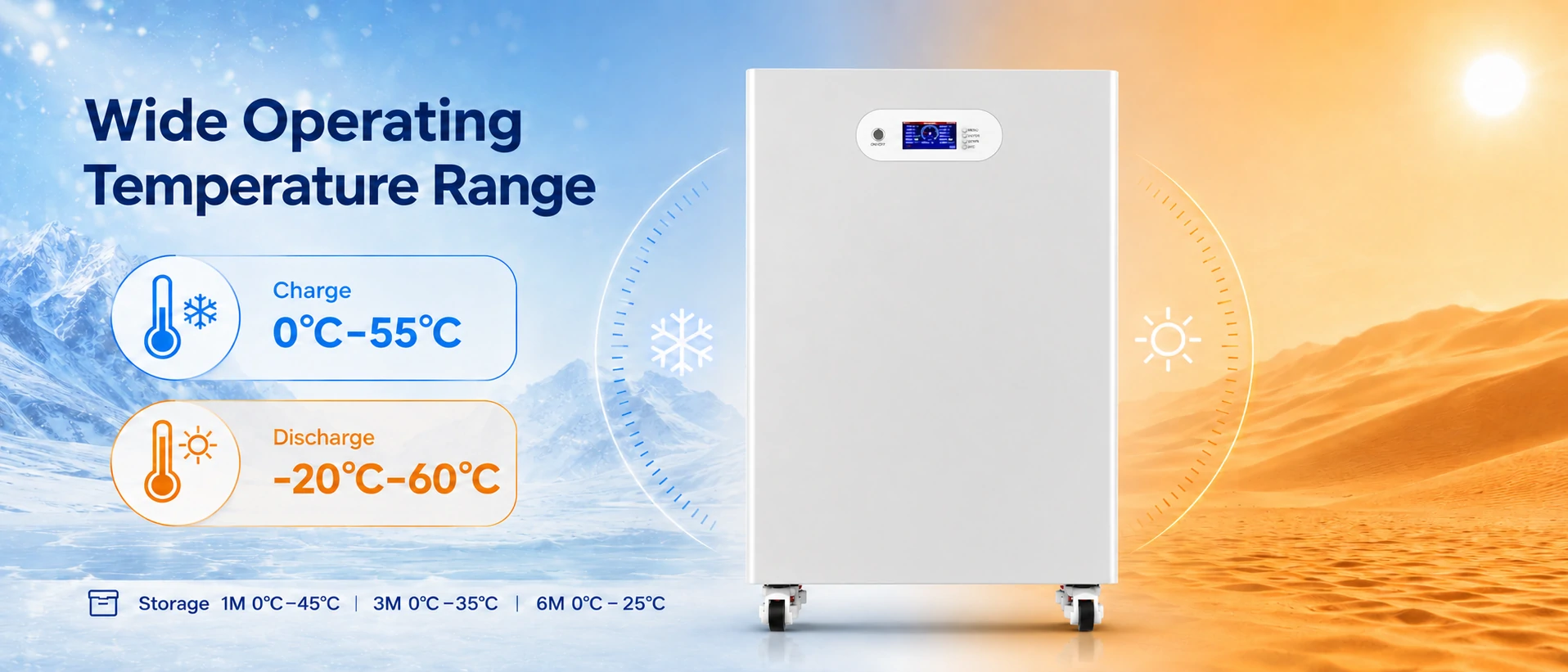

Wide Operating Temperature Range for Solar Storage Projects
The 30kWh battery supports 0°C–55°C charging and -20°C–60°C discharge. Recommended storage is 0°C–45°C for 1 month, 0°C–35°C for 3 months, and 0°C–25°C for 6 months.
OEM and ODM Customization for Energy Storage Partners
Avepower supports OEM and ODM customization for distributors, installers, wholesalers, energy storage brands and project partners. For customers building local energy storage brands or project distribution channels, Avepower can provide product configuration support, technical communication and scalable manufacturing service.

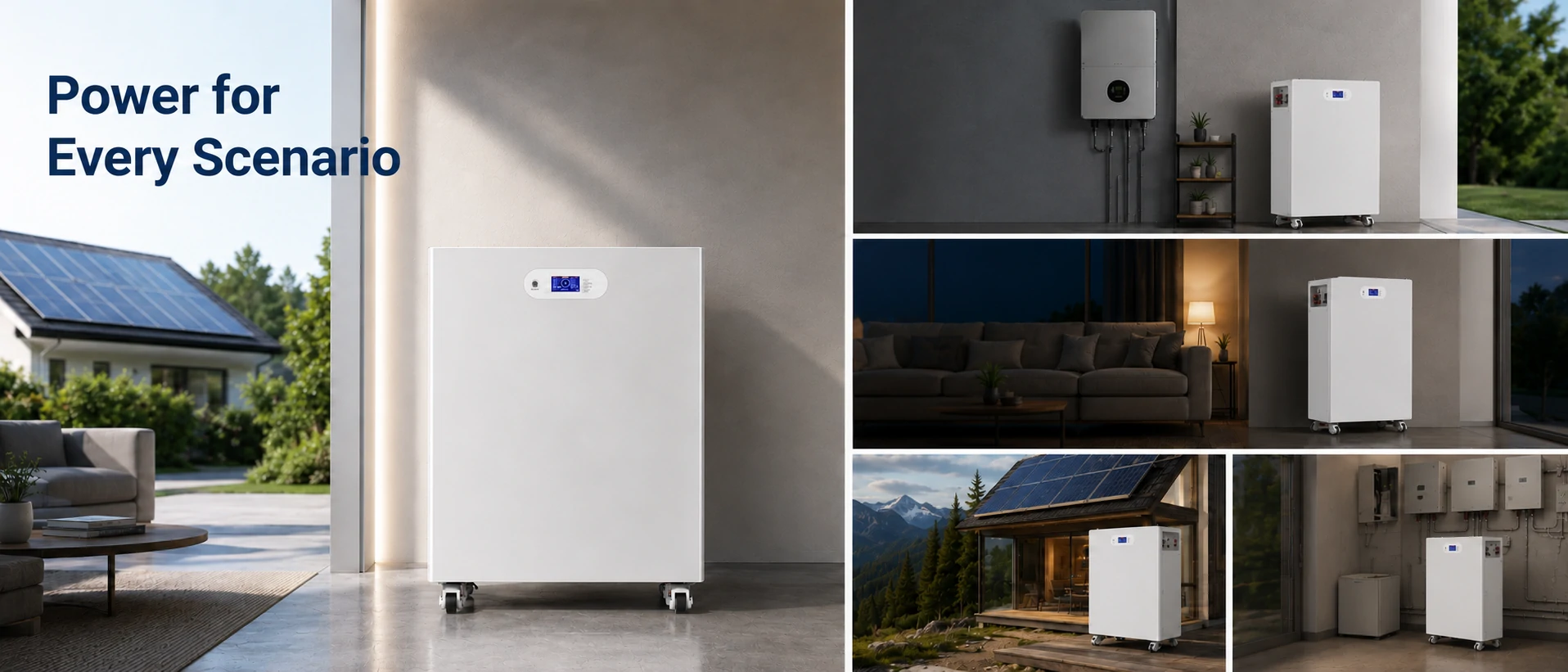

Designed for Solar Storage and Backup Power Applications
This 30kWh solar battery solution is suitable for solar self consumption, backup power during outages, off grid cabins or villas, peak shaving under time of use tariffs, and projects where higher continuous current and large capacity are required in a compact vertical cabinet.
Product Specifications
| Items | Value |
|---|---|
|
Nominal Voltage |
48V |
|
Nominal Capacity |
600Ah |
|
Nominal Energy |
30kWh |
|
Max Charge Current |
200A |
|
Max Discharge Current |
200A |
|
Charge Mode |
CC-CV |
|
Communication |
CAN/ RS485/ RS232 |
|
Internal Resistance |
≤ 100mΩ |
|
Cycle Life |
＞ 8000（ @25℃， 80% DOD） |
|
Maximum Paralleling |
16 unit |
|
Designed Life |
10+Years |
Inverter Compatibility
Our batteries are designed to work seamlessly with most major inverter brands. You can install them with confidence, knowing they integrate easily with your existing solar or power system for reliable energy storage.
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
It uses LiFePO4 battery chemistry. LiFePO4 is widely used in solar energy storage systems because it offers stable performance, strong thermal stability and long service potential under proper use conditions.
The standard charge current is 112A. The maximum charge current is 200A, and the maximum discharge current is also 200A. Actual system output depends on inverter capacity, BMS settings, cable design, ambient temperature and installation conditions.
The dimensions are 916 × 330 × 735mm excluding rollers and 998 × 330 × 735mm including rollers. The approximate weight is 210kg, so professional handling and installation are recommended.
The BMS supports CAN / RS485 / RS232 communication for inverter integration, and also includes Bluetooth & WiFi for monitoring and commissioning.
It includes a 3.2-inch button blue screen, a 200A 1P air switch, a lighted soft switch, and a maintenance/service port for easier operation and servicing.
It is suitable for home solar storage, whole-home backup, essential-load backup, off-grid systems, villas, farms, small commercial backup power, telecom rooms, hybrid inverter systems and installer-led energy storage projects.
