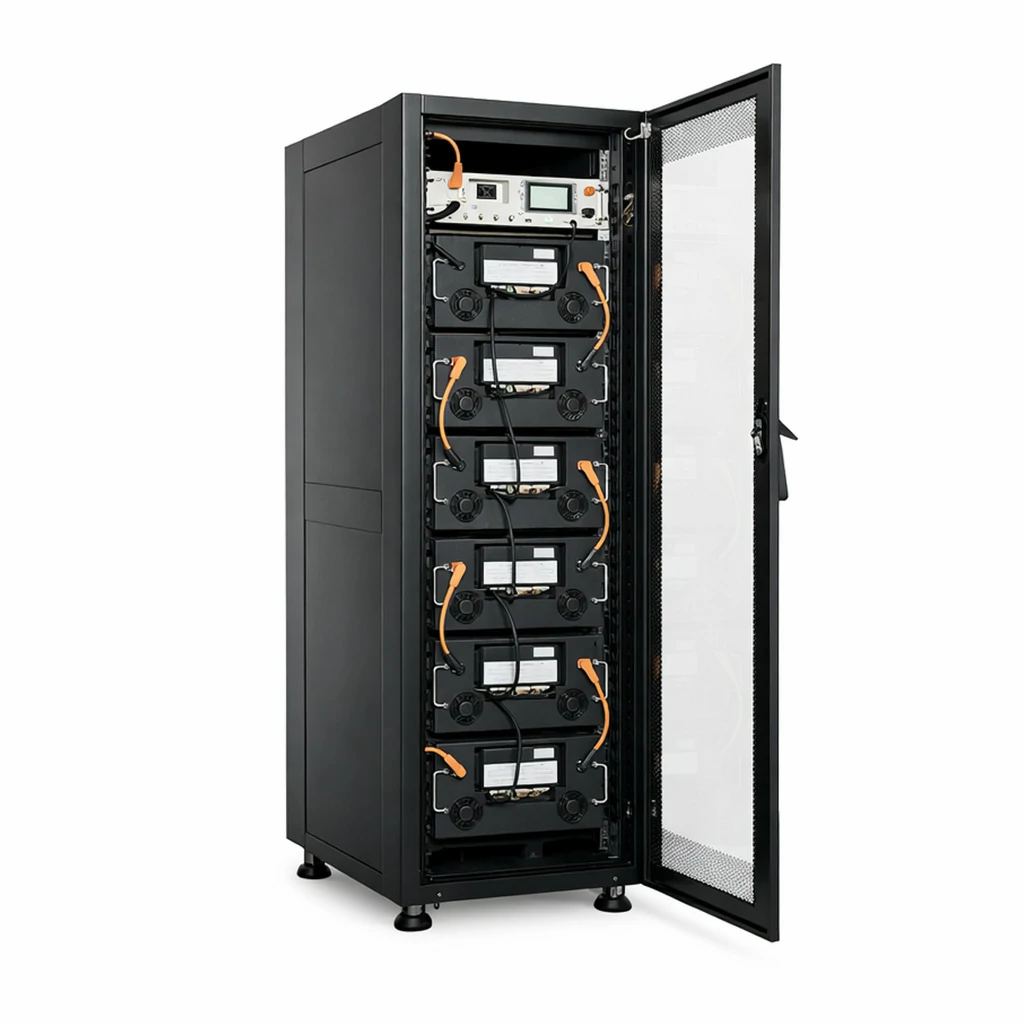

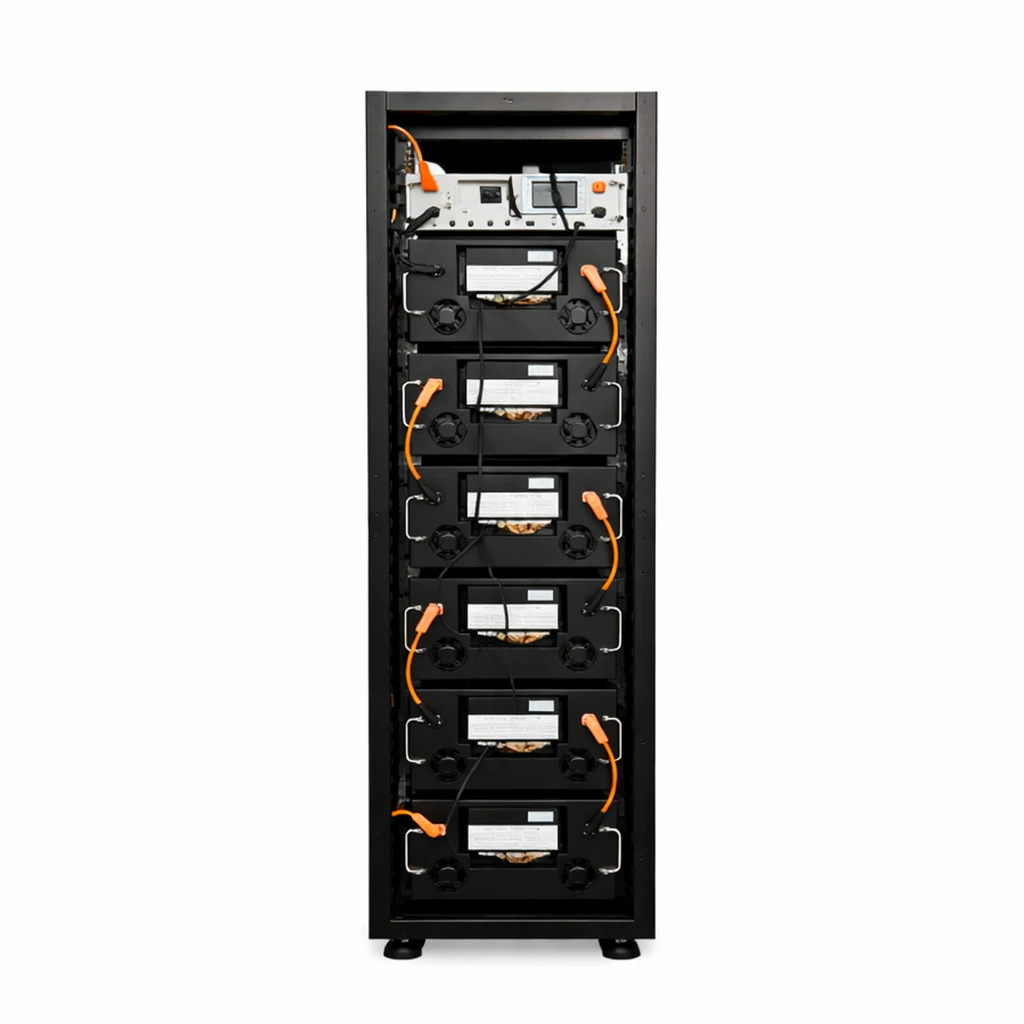

Avepower Custom High Voltage Lithium Battery Storage System
Avepower’s High-Voltage Battery Energy Storage System is designed for customers who need a reliable, scalable, and customizable ESS platform. We can configure the system structure, voltage platform, cabinet layout, and communication solution to match your application.
Advanced BMS/BCU control, and a modular cabinet design, this solution is suitable for commercial and industrial energy storage, solar + storage systems, backup power, UPS applications, and customized project integration.
- Scalable high-voltage ESS platform
- LiFePO4 chemistry for high safety and long cycle life
- Intelligent BMU and BCU management
- CAN / RS485 communication support
- Modular cabinet design for easier expansion
- Complete protection functions
- Suitable for C&I storage and solar integration
- OEM and project customization available
Send us your project details, and our team will recommend the right HV ESS configuration for your market and application.
- Modular Capacity Design
- Project-Based Customization
- Advanced BMS Protection
- High-Voltage Platform
Real Project Validation for Avepower Custom High-Voltage Battery Storage System

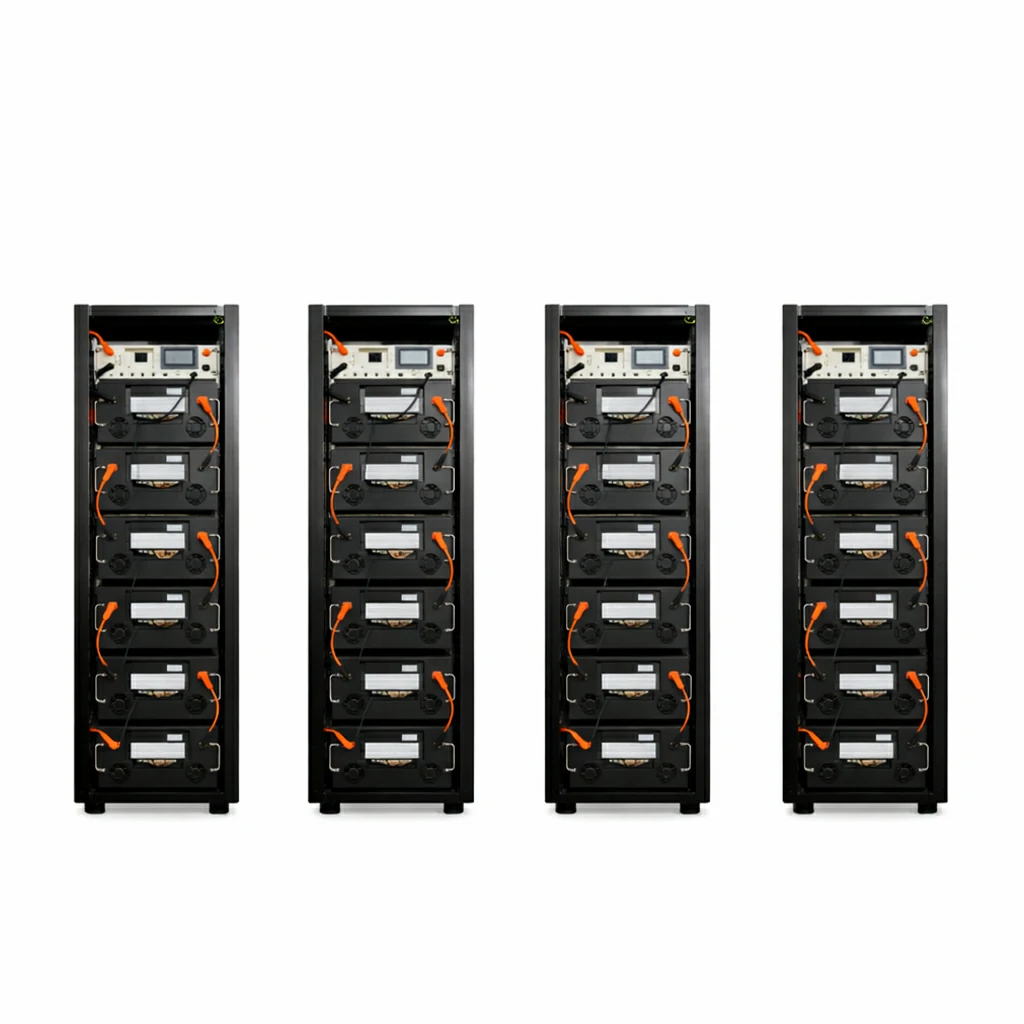

Avepower high-voltage ESS solutions are designed for real-world deployment, not just specification sheets. From compact cabinet systems to multi-cabinet parallel solutions, Avepower supports customers with scalable engineering and project-based battery configurations.

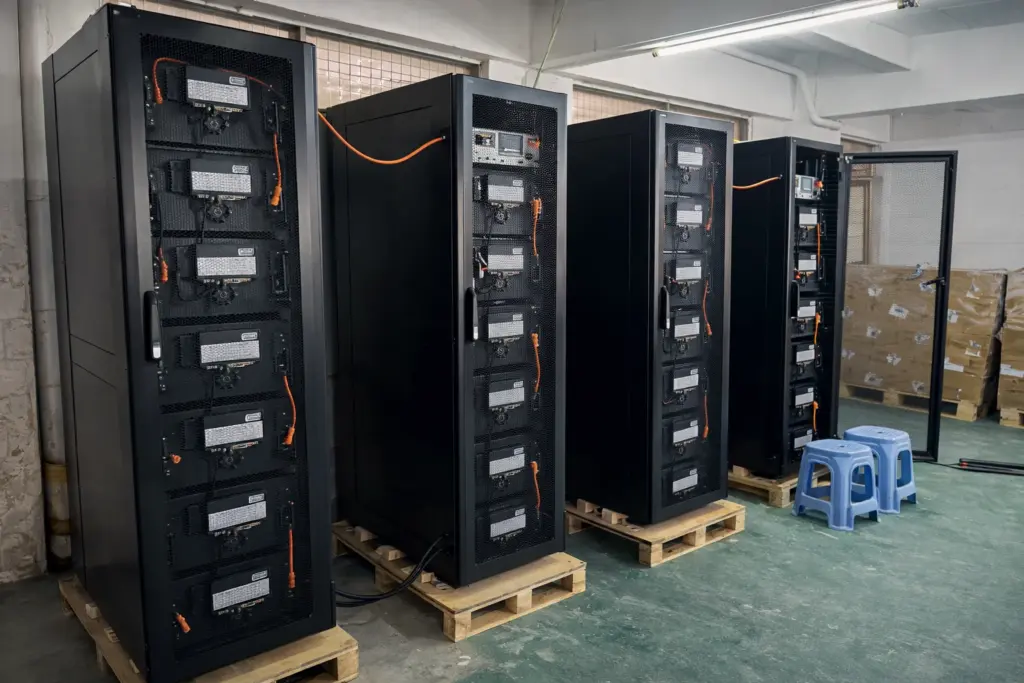

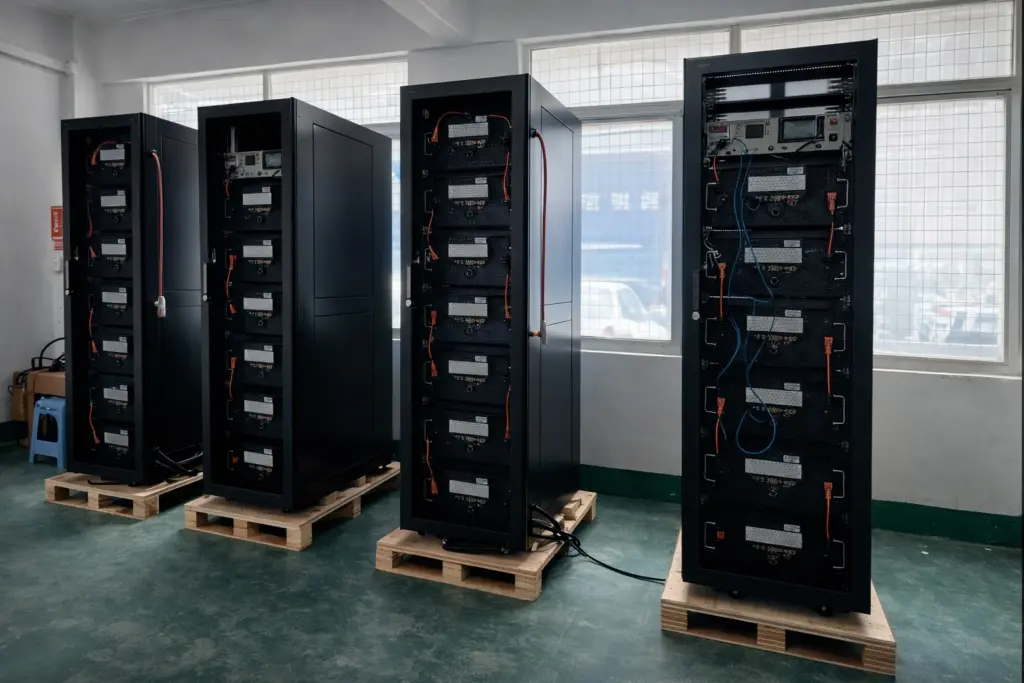

One of the best examples of our high-voltage ESS capability is a 522.496kWh commercial and industrial project in Lithuania. Developed together with a local installation partner, this system was engineered as a compact 832V DC solution for grid support and renewable energy integration. The final system used 4 × 42U cabinets, 2 clusters in parallel, and a continuous current of 200A, showing how Avepower can support not only battery supply, but also complete high-voltage system configuration and engineering coordination.
Why Choose Avepower High-Voltage Battery Storage System
At Avepower, we understand that project requirements vary by country, load profile, installation site, inverter selection, and target budget. That is why this product page presents reference configurations, while the actual system can be customized according to your needs.
Flexible Capacity

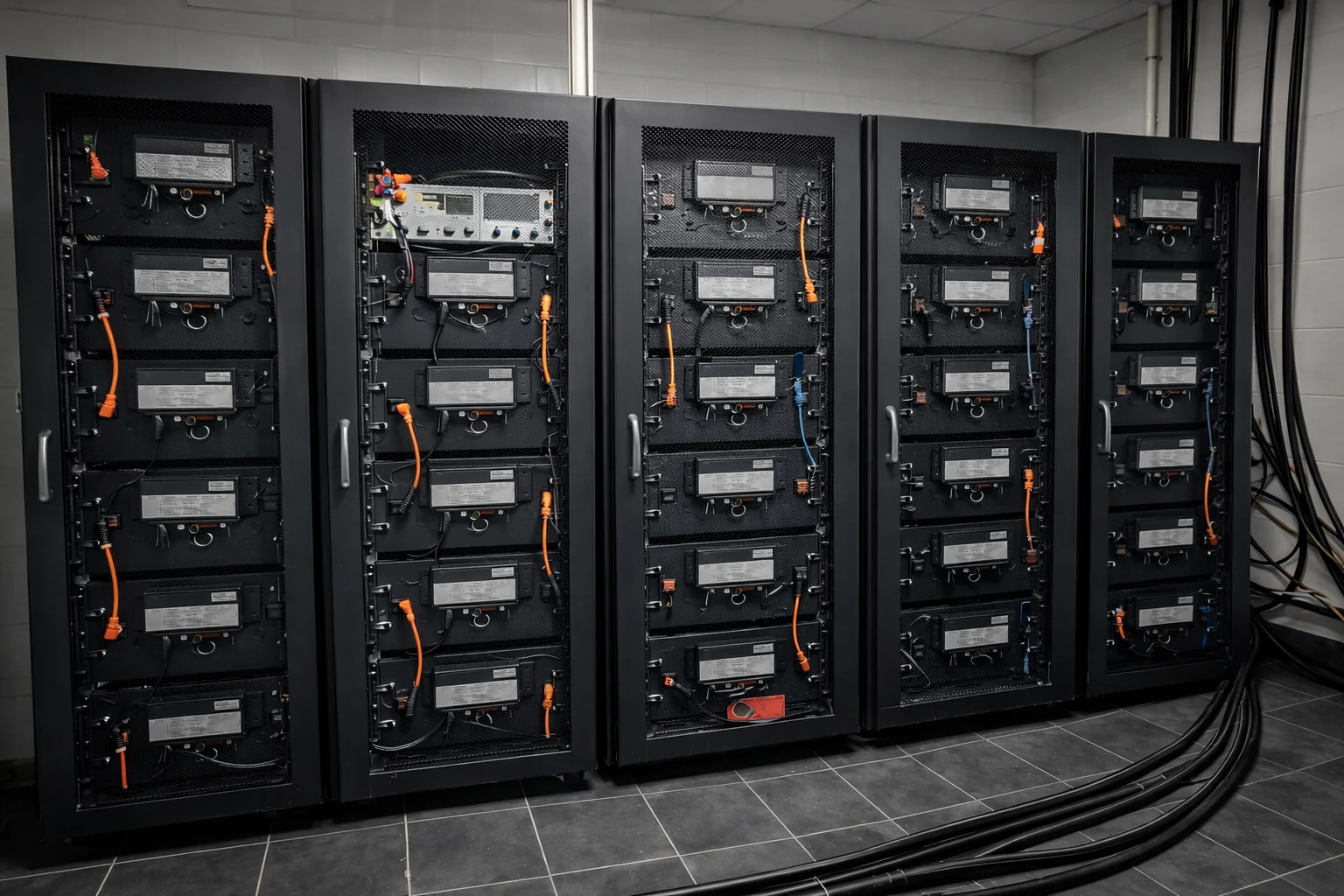

Available from 100Wh to 700kWh +, with customization for voltage, capacity, current, and inverter matching.
High-Voltage Efficiency
High-voltage design helps reduce current, improve efficiency, and support commercial and industrial applications.
Modular Design

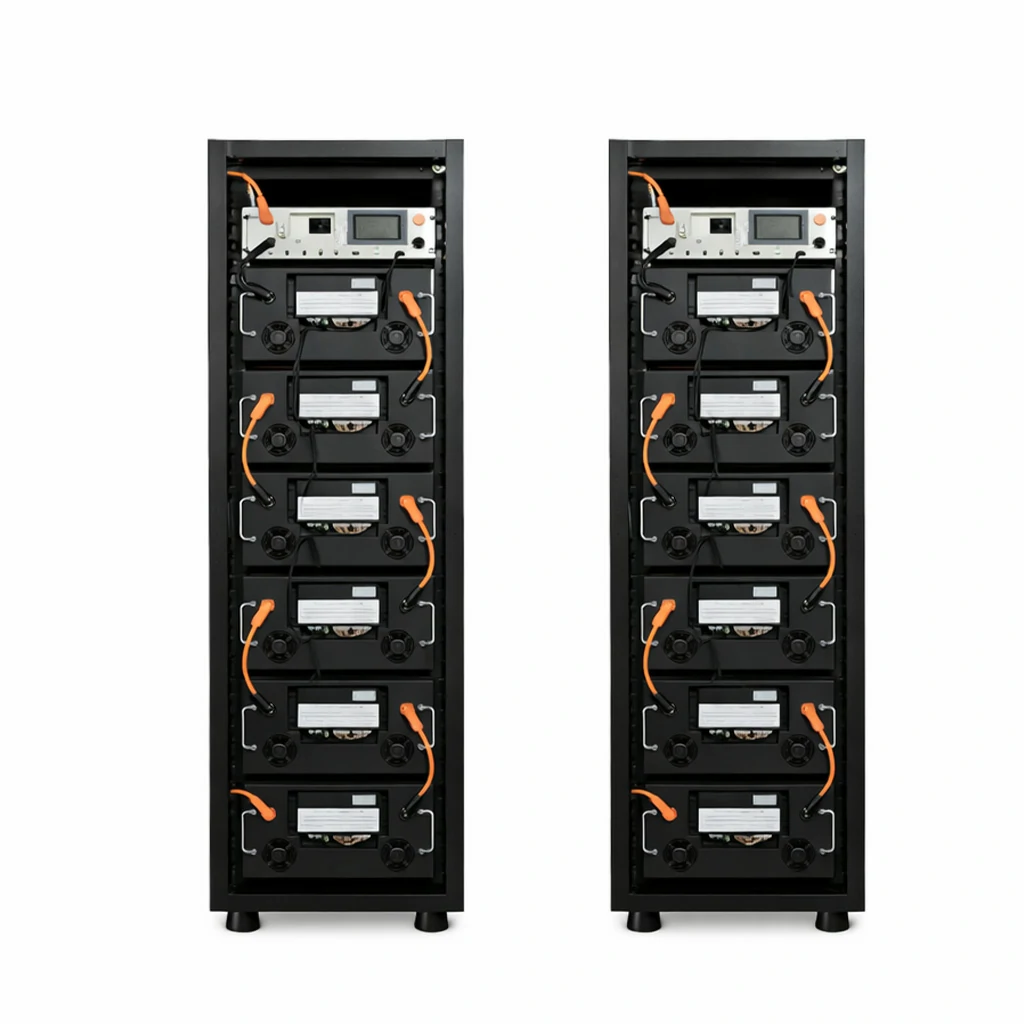

Modular battery packs and cabinets make installation, maintenance, and future expansion easier.
Intelligent BMS Management
Integrated BMU + BCU system supports real-time monitoring, balancing, fault detection, and multi-level protection.
Wide Compatibility
Supports CAN and selected RS485 communication for easier integration with inverters and EMS.
Customizable Solution
Avepower support customization for structure, layout, communication, wiring, branding, and project requirements.
Protection Functions
A reliable ESS needs more than capacity. It also needs a complete protection system. Avepower’s HV ESS integrates protection at both the BMU and BCU levels.
BCU Protection and Control Functions
- Supports up to 270 series lithium battery packs
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Overtemperature protection
- Low-temperature protection
- Multi-level alarm mechanism
- Real-time communication with upper-level control system
- Battery status and data storage function
- Isolated RS485 and CAN communication
- Supports external connection of up to 6 relays
- Suitable for C&I ESS, UPS systems, and other customized applications
BMU Protection and Monitoring Functions
- Single-cell voltage detection
- Static voltage sampling accuracy of ±0.2% FS
- Compatible with multiple battery chemistries including LFP, lithium manganese oxide, lithium titanate, and ternary batteries
- Up to 5-channel NTC temperature sampling (4 cell channels + 1 terminal channel)
- Temperature sampling accuracy ≤2°C at room temperature
- Passive balancing function with maximum balancing current of 200mA
- 1-channel isolated CAN communication
- Cascaded communication with main BCU
- Support for software upgrade and automatic coding
- Fan control and PWM speed regulation
- Watchdog function
- Cell and NTC fault detection
- Compliance support for Class B conduction, radiation EMC, and safety certification requirements
- Support for 1500V voltage platform requirements
System Composition
- LiFePO4 battery cells
- Battery packs
- High-voltage box with integrated BCU
- Rack or heavy-duty cabinet
- BMU/BMS management
- Power cables for inter-pack and external high-voltage DC connection
- Communication cables for system power supply and communication control
- Optional combiner box and parallel connection accessories for larger systems
Customization Options
Avepower can customize the system based on your market and project requirements.
- System voltage
- Total capacity
- Series and parallel configuration
- Battery pack structure
- Cabinet quantity and dimensions
- Charge and discharge current
- Communication protocol
- BMS/BCU logic
- Inverter matching
- Output architecture
- Fire protection options
- Project-specific wiring and topology
- OEM / ODM support
If you are working on a commercial or industrial energy storage project, we can help you build a high-voltage battery solution based on your target application and installation requirements.
What You Can Get From Us
- High-voltage ESS solution design
- Battery system customization
- OEM / ODM support
- Technical parameter confirmation
- Inverter matching support
- Battery cluster layout suggestions
- Wiring and topology support
- Factory direct supply
- Project-based quotation service
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
This product is mainly designed for project developers, EPC companies, system integrators, distributors, wholesalers, and OEM/ODM customers who need a customizable high-voltage battery storage solution for commercial or industrial projects.
Yes. We support customization for system voltage, capacity, cabinet structure, series and parallel configuration, communication protocol, inverter matching, and other project-specific requirements. OEM and ODM support are also available.
Yes. Depending on the design, multiple cabinets or battery groups can be connected in parallel to increase the total system capacity and output, making the solution more flexible for larger projects.
Yes. The system can be matched with compatible inverters for solar plus storage applications. If you send us your inverter brand, model, voltage range, and project requirements, we can help recommend a suitable battery configuration.
You can choose based on required capacity, target voltage, inverter compatibility, available installation space, charge/discharge power, and application type. If you send us your project details, we can recommend a suitable configuration for you.
Build Your Custom High-Voltage ESS With Avepower
Looking for a high-voltage battery storage system for your commercial or industrial project? Avepower can provide standard models or customize the battery capacity, cabinet structure, voltage platform, communication, and integration solution based on your requirements.
