Batteries in Series vs Parallel: Which Setup Fits Your Needs?

Connecting batteries in a series or parallel arrangement is a common practice when a single battery cannot meet the power needs of an electrical system. Whether you are powering an RV, a boat, an off-grid cabin, or a large-scale home energy system.

But what exactly do these terms mean, and which configuration is right for your needs? In simple terms, wiring batteries in series raises the system voltage but keeps the amp-hour (Ah) the same, while wiring in parallel keeps the voltage the same but increases total capacity, so your choice should always start from “do I need higher voltage or longer runtime?”

In this article, we’ll break down the differences between series and parallel battery connections, explore their benefits and drawbacks, explain how to safely set them up, and provide real-life examples to help you make the right choice.

Batteries in Series vs Parallel

Connecting batteries in a series or parallel configuration changes the overall output of the battery bank. While the total available energy (measured in watt-hours) remains the same with the same number of batteries, the way that energy is delivered changes.

A series connection links batteries end-to-end, connecting the positive terminal of one battery to the negative terminal of the next. This setup increases the system voltage while keeping the amp-hour (Ah) capacity the same.

A parallel connection links all positive terminals together and all negative terminals together. In this configuration, the voltage stays the same as a single battery, but the total capacity (Ah) increases.

For the same battery type, energy (Wh) ≈ Voltage (V) × Capacity (Ah). Two 12V 100Ah batteries in series → 24V × 100Ah = 2400Wh. Two 12V 100Ah batteries in parallel → 12V × 200Ah = 2400Wh. You still have ~2400Wh either way, but the “shape” of the power delivery changes (voltage vs current).

If you combine both approaches, it is called a series-parallel connection, which allows you to simultaneously increase both voltage and capacity.

Here’s your comparison in a clear table format for easy understanding:

Feature	Series Connection	Parallel Connection
Primary Effect	Increases voltage	Increases capacity (Ah)
Wiring	Positive to negative	Positive to positive, negative to negative
Total Voltage	Sum of individual battery voltages	Equal to a single battery’s voltage
Total Capacity (Ah)	Equal to a single battery’s capacity	Sum of individual battery capacities
Best For	Higher voltage applications (24V, 48V)	Longer run times at a standard voltage
Wiring & Safety	Lower current, can use thinner cables	Higher current, requires thicker cables
System Resilience	If one battery fails, the entire system fails	If one battery fails, the system continues to work at a reduced capacity

Decision shortcut:

1. If your inverter/charger/controller requires 24V or 48V input, series wiring is non-negotiable.
2. If your system is fixed at 12V and you want more hours, parallel is the cleanest approach.
3. If you need both higher voltage and more runtime, build series strings first, then parallel the strings (series-parallel).

Below, we will elaborate on the characteristics of the two methods and determine which one is suitable for you.

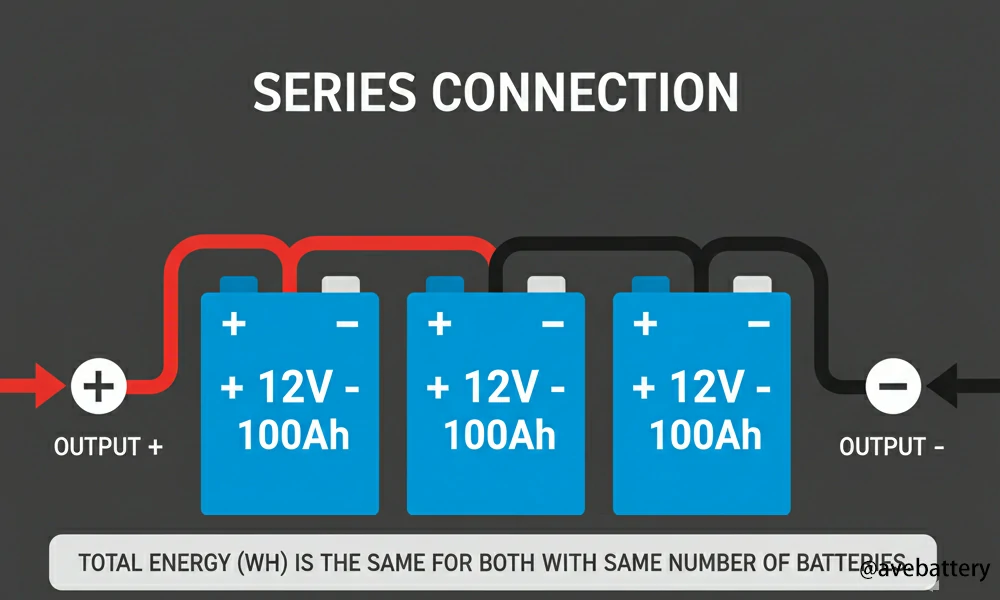

Batteries in Series

A series connection involves connecting the positive terminal (+) of one battery to the negative terminal (-) of the next battery. This pattern continues until all batteries are linked. The remaining free positive and negative terminals then connect to your load, such as an inverter or a system.

In a series connection, the total voltage of the battery bank equals the sum of the individual battery voltages, while the capacity remains the same. For example, connecting two 12V 100Ah batteries in series creates a 24V 100Ah system. So yes, you can put two 12V batteries in series — the result is a 24V bank, but you don’t get more amp-hours, only more voltage.

Series connections are ideal for powering devices that require higher voltage, such as RV inverters, electric trolling motors, or off-grid solar systems needing 24V or 48V input. Series is also common when the equipment has a strict input voltage (e.g. 24V inverter) — in that case, parallel is not an option unless you first raise voltage.

Advantages of Series Connections

• Higher Voltage Output: Perfect for devices or inverters requiring 24V, 48V, or higher voltages.
• Lower Current Draw: Produces less current for the same power, allowing thinner cables and reducing energy loss.
• Cost Efficiency: Reduced current means smaller wiring and potentially lower installation costs.
• Long-Distance Suitability: Maintains voltage over longer cable runs, ideal when batteries are far from equipment.
• Stable Current Flow: All batteries deliver the same current, providing reliable and consistent power.
• Improved Efficiency: Higher voltage systems often operate more efficiently, especially in high-power applications.
• Good for “High Power” Systems: when motors, inverters, or marine equipment need more voltage rather than more Ah, a series string is the cleaner and safer option.

Why higher voltage often “feels easier” in real installs: Power (W) = Voltage (V) × Current (A). So for the same load, higher voltage means lower current. Example: a 2000W inverter load draws ~167A at 12V, ~83A at 24V, and ~42A at 48V (ignoring inverter losses). Lower current usually means less heat, less voltage drop, and simpler cable management.

Disadvantages of Series Connections

• System Vulnerability: If one battery fails, the entire series string can be affected.
• Strict Matching Required: All batteries must have the same capacity and charge level to prevent imbalance.
• Maintenance Complexity: Monitoring and maintaining multiple batteries in series can be more challenging.
• Risk of Overcharge or Deep Discharge: Mismatched batteries can lead to uneven charging, reducing lifespan.

Some users feel that “batteries in series drain faster.” What’s really happening is that every battery in series must supply the same current to the load, so if the system is drawing a high continuous current, the whole string will reach a low SOC together. This is normal behavior for series banks, not a fault.

How to Connect Batteries in Series

Before wiring batteries in series, ensure all batteries have the same voltage and capacity. Mixing different batteries can be dangerous and may damage them. Here is a step-by-step guide to connecting batteries in series:

1. Place all batteries in a safe, stable location close to each other.
2. Connect the negative terminal of the first battery to the positive terminal of the second battery.
3. Continue connecting the negative of one battery to the positive of the next until all batteries are linked.
4. Connect the free positive terminal of the first battery to the positive input of your device or system.
5. Connect the free negative terminal of the last battery to the system’s negative input.
6. Double-check all connections, ensuring terminals are tight and secure, then power on the system or begin charging with a charger rated for the total series voltage.

Charging batteries in series is possible. Always use a charger compatible with the combined voltage of the series string to ensure safe and efficient charging.

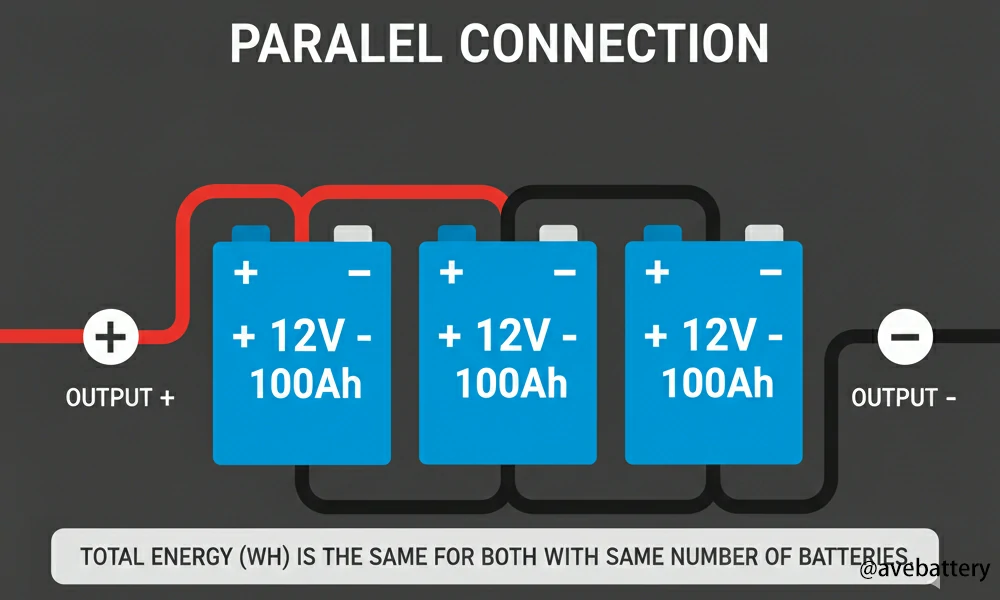

Batteries in Parallel

A parallel connection links all positive terminals together and all negative terminals together. Parallel connections increase the total current capacity while keeping voltage constant. While series connections increase voltage, parallel setups keep the voltage steady and add capacity (Ah). This makes it ideal for devices that need long-lasting power and provides a level of redundancy—if one battery fails, the rest continue to operate.

For example, two 12V 100Ah batteries in parallel form a 12V 200Ah system. This setup is perfect for extending runtime without increasing voltage, such as in solar-powered cabins or RVs running multiple appliances.

Advantages of Parallel Batteries

• Easy to Expand: You can add more batteries to increase storage capacity without changing system voltage.
• Longer Runtime: Higher amp-hour capacity allows appliances and devices to run longer between charges.
• Reliable Performance: Parallel banks distribute electrical load across all batteries, reducing stress on individual units.
• Continued Operation if One Battery Fails: Other batteries in the bank keep supplying power even if one stops working.
• Consistent Voltage for Devices: Maintains a stable voltage output for sensitive electronics.
• Flexible for Off-Grid Use: Perfect for RVs, cabins, or small solar systems where extended runtime is needed without higher voltage.
• Best Practice: connect all batteries to a positive and negative busbar using the same cable length so that charging and discharging stay balanced.

Ideal when your inverter/controller is locked to 12V but your loads are growing — just add more parallel batteries.

Disadvantages of Parallel Batteries

• Increased Current Draw: Higher total amp-hours mean more current, which can produce heat and require thicker cables and fuses.
• Voltage Stays the Same: Devices that require higher voltage may not be compatible with parallel-only setups.
• Complex Wiring: Each added battery requires additional positive and negative connections, making the system more intricate and costly.
• Challenging Management: Balancing charge and discharge across multiple batteries can be tricky, requiring monitoring and careful maintenance.
• Risk of Mismatch: in parallel, cells that don’t match in voltage, capacity, or chemistry can feed current into each other, causing localized heating and early failure. Always parallel same-type batteries.
• Three Key Rules for Parallel Circuits: (1) voltage is the same across all batteries; (2) total current = sum of branch currents; (3) total resistance is lower than any single branch — so cables and protection must be sized accordingly.

Mixing a 12V 100Ah and a 12V 200Ah battery in parallel is technically possible, but it’s not the best practice for long-term life — the larger battery can end up doing more work. If you must do it, make sure both are at the same voltage before connecting and monitor temperatures and currents.

How to Connect Batteries in Parallel

Just like with series connections, all batteries in a parallel setup must have the same voltage and capacity. Mixing different batteries can cause imbalance, reduce performance, and potentially damage the batteries.

Follow these six steps to wire batteries in parallel:

1. Position all batteries close together on a stable surface for easy access.
2. Connect the negative terminal of the first battery to the negative terminal of the second battery.
3. Continue connecting the negative terminals of each battery to the next until all batteries are linked.
4. Repeat the same process for the positive terminals, connecting each battery’s positive to the next.
5. Connect the combined positive terminals of the battery bank to the positive input of your device or system, and the combined negative terminals to the system’s negative input.
6. Inspect all connections to ensure they are secure and tight. Once confirmed, you can safely power your system or charge the parallel battery bank using a charger rated for the individual battery voltage.

Using batteries with lower voltage but higher capacity can help reduce the number of parallel wires required, simplifying your setup. And whenever possible, use a busbar and identical-length cables to avoid one battery being “closer” to the load than the others.

Parallel banks can produce very high fault current. In properly designed systems, each parallel branch is often protected so that a fault in one branch does not turn the rest of the bank into an uncontrolled “current source.” If your system is permanently installed, standards and local codes commonly require appropriate conductor sizing and overcurrent protection practices.

How Many Batteries Can You Parallel?

The number of batteries you can safely parallel depends on the manufacturer’s specifications. For example, Avepower allows up to 16 batteries in parallel, achieving up to 260kWh of energy storage. Always consult the manufacturer to avoid exceeding limits. Beyond the allowed number, inrush sharing and fault currents become harder to control, so always follow the BMS and manufacturer rules.

Can You Combine Series and Parallel Batteries?

Absolutely! You can connect batteries in both series and parallel at the same time. This setup, called a series-parallel configuration, is a smart way to get higher voltage and more capacity in your battery system.

You’ll often see series-parallel setups in bigger off-grid systems, RVs, boats, and solar setups. With this approach, you can get more power and longer runtime without needing huge industrial batteries. Avepower makes batteries that are perfect for these kinds of systems.

How It Works

First, you connect batteries in series to increase the voltage. Then, you take those series strings and connect them in parallel to boost overall capacity.

Important: All batteries in a series-parallel bank should match in voltage, chemistry, and capacity. Don’t put old and new or 100Ah and 200Ah units into the same mixed series-parallel pack unless the manufacturer says it is okay.

Example Using Avepower 12V 100Ah Batteries:

Let’s say you want a 48V system with roughly 200Ah capacity. Here’s one way to do it:

1. Make four series strings, each with 4 × 12V 100Ah Avepower batteries → each string = 48V 100Ah
2. Connect those two series strings in parallel → final system = 48V 200Ah ≈ 10.24kWh total energy

This gives you higher voltage and larger capacity, so your devices get more power and can run longer—perfect for off-grid homes, RVs, or boats.

When to Use Series Batteries

Series batteries are ideal when your system or device requires higher voltage. By connecting batteries in series, you increase the total voltage while keeping the amp-hour (Ah) capacity the same.

Use series batteries in situations such as:

• RVs and off-grid solar inverters: Systems requiring 24V or 48V input benefit from series connections.
• Electric trolling motors or boats: Higher voltage can deliver smoother performance and improved efficiency, particularly with long cable runs.
• Any setup where current needs to be kept low to reduce cable size or resistive loss.

Example: Avepower 12V 100Ah Lithium Battery in Series

Connecting four Avepower 12V 100Ah batteries in series:

• Voltage: 48V
• Capacity: 100Ah
• Total energy: 4 × 1280Wh = 5120Wh

This setup could power a small RV for two days, running essentials like:

• Refrigerator (120W) 24/7
• Coffee maker (1000W) 1 hour/day
• Stove (1800W) 2 hours/day
• Laptop (60W) all day

When to Use Parallel Batteries

Parallel batteries are best when you want to extend runtime without increasing voltage. Connecting batteries in parallel keeps the voltage the same but adds up the amp-hour (Ah) capacity, letting your devices run longer between charges.

Use parallel batteries in situations such as:

• Tiny homes or cabins: Run essential appliances longer on a 12V system.
• Solar setups: Maintain consistent voltage for devices while increasing total energy storage.
• Systems where multiple DC loads are added over time — parallel lets you scale gradually.

Example: Avepower 12V 100Ah Lithium Battery in Parallel

Connecting eight Avepower batteries in parallel:

• Voltage: 12V
• Capacity: 800Ah
• Total energy: 8 × 1280Wh = 10,240Wh

This configuration can power small residential systems for up to four days, including:

• Refrigerator 24/7
• Air conditioning 5 hours/day
• Oven 1 hour/day
• TV 5 hours/day

Battery Chemistry Matters for Series vs Parallel Wiring

Battery chemistry directly affects voltage behavior, charging limits, balancing requirements, and safety when batteries are wired in series or parallel. This is why wiring decisions must consider chemistry—not just electrical theory.

LiFePO4 (LFP)

LFP batteries are BMS-controlled. The BMS may limit how many units can be connected in series or parallel.

• Series: Small differences between batteries can add up. If one battery hits high- or low-voltage cutoff first, its BMS may disconnect and shut down the entire string.
• Parallel: Low internal resistance means inrush current can be high. Batteries should be at a similar state of charge before paralleling, often fully charged individually first.

Always follow the manufacturer’s approved configurations.

Lead-Acid (FLA / AGM / VRLA)

Lead-acid batteries rely on proper charging rather than electronic protection.

• Sensitive to partial charging and sulfation
• Series wiring determines system voltage and charger settings
• Parallel banks require regular full charging to maintain balance

For lead-acid, series vs parallel is also a charging-strategy decision.

Mixing Chemistries

Do not series or parallel different battery chemistries (e.g., LiFePO₄ + lead-acid). Their voltage behavior and charging profiles differ and can cause damage. Keep them electrically separate unless designed by a qualified professional.

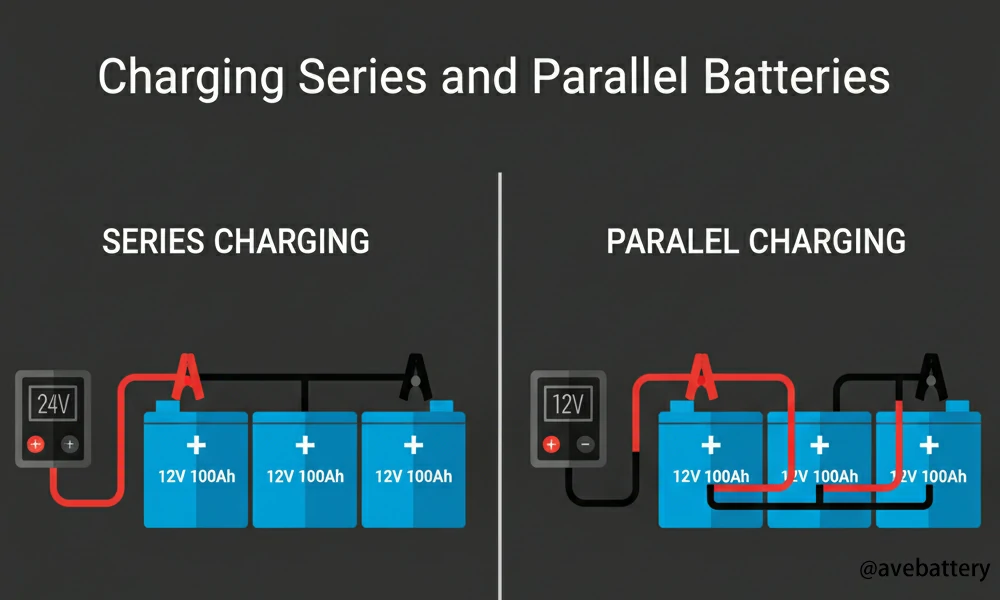

Charging Series and Parallel Batteries

Charging series and parallel batteries works in a very similar way, as long as you use a charger with the correct voltage for your setup.

Charging in Series

To charge a series-wired battery bank, you need a charger that matches the total voltage of the bank. For example, if you have two 12V batteries wired in series for a 24V system, you must use a 24V battery charger. You connect the positive charger cable to the positive terminal of the first battery in the series and the negative charger cable to the negative terminal of the last battery.

Charging in Parallel

When charging a parallel-wired battery bank, you use a charger that matches the voltage of a single battery (e.g., a 12V charger for a 12V bank). The total capacity is now higher, so the charging time will be longer. To ensure even charging, it is recommended to connect the positive charger cable to the positive terminal of one end of the parallel bank and the negative charger cable to the negative terminal of the other end. Some people use multi-bank chargers that charge each battery individually, which can speed up the process.

For longevity, many installers follow a “40–80 rule”: try to keep batteries between about 40% and 80% state of charge in daily cycling, instead of going 0–100% every day. Staying in this mid-band reduces stress and improves lifespan, especially for home energy storage.

Read this article to learn more about How to Charge Two Batteries in Parallel.

Common Battery Bank Mistakes (and How to Fix Them)

These issues are commonly seen during real-world battery installation, commissioning, and troubleshooting.

Common Mistake	What Happens in Practice	Recommended Fix
Unequal cable lengths in parallel banks	One battery carries more current and ages faster	Use busbars and identical cable lengths for each battery
No branch protection in large parallel banks	A single fault can turn the entire bank into a high-current event	Install proper branch fuses or breakers per battery
Mixing old and new batteries	New batteries get dragged down by older units with higher internal resistance	Keep batteries the same age, model, and condition
Ignoring inverter DC input requirements	Batteries are paralleled when the inverter actually requires 24 V or 48 V	Confirm inverter voltage first, then design the bank
Skipping commissioning checks	Voltage or SOC mismatch causes harsh equalization or inrush current	Check voltage and SOC before connection and follow commissioning steps

Conclusion: Which is Better? Making the Right Choice

Ultimately, there is no single answer to whether series or parallel is better. The choice between series and parallel depends on your system needs:

• Need higher voltage? Use series.
• Need longer runtime? Use parallel.
• Need both? Consider a series-parallel configuration.

If you are ever unsure, ask first: “What voltage does my inverter/controller actually require?” If it needs 24V/48V, series is non-negotiable. If it is fixed at 12V but you want more hours, parallel is the cleanest path.

Always match batteries in age, chemistry, voltage, and capacity, especially for parallel banks — mismatched batteries can cause uneven current sharing, overheating, and early failure.

Use busbars and equal-length cables so all parallel batteries charge and discharge at the same rate.

For complex projects, a series-parallel configuration can give you the best of both worlds, providing the power and endurance you need. No matter which method you choose, always prioritize safety by using the correct wire gauge, fuses, and a battery management system (BMS) to protect your investment.

Maximize your energy independence with Avepower’s advanced battery storage systems. With support for up to 16 batteries in parallel, you can achieve up to 260kWh of reliable, scalable energy storage. Contact us today for a personalized quote and find the perfect Avepower battery solution for your needs.

This article is educational and does not replace local electrical codes or professional advice. If your system connects to an inverter, a home electrical panel, or any permanently installed wiring, you should follow applicable installation codes and consult a qualified professional.

References:

• NFPA 70 (National Electrical Code / NEC) overview
• NFPA 855 (Stationary Energy Storage Systems) overview
• IEC 62619 scope summary (industrial/stationary lithium safety requirements)
• UL: Energy Storage System testing and certification (UL 9540 context)
• UL 9540A test method overview
• UL 1973 overview (stationary battery systems safety)
• U.S. DOE Energy Storage Safety Strategic Plan (notes LFP safety/cycle-life drivers in deployments)
