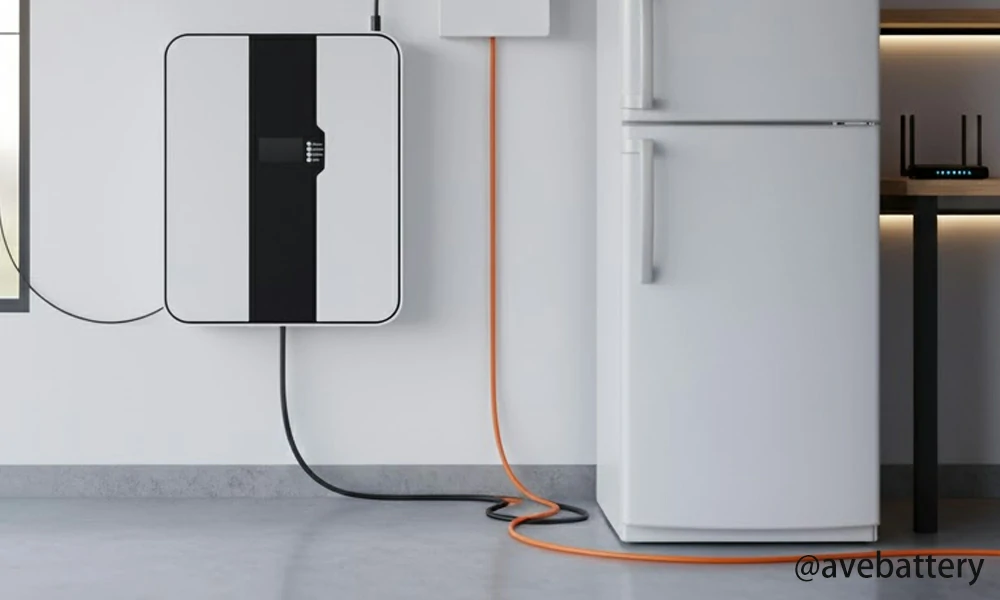

What Size Battery Backup for Refrigerator?

When the power goes out, you want your refrigerator (and possibly freezer) to keep running long enough to protect your food. To pick the right battery backup system (or DIY battery + inverter system), you must answer two key questions:

1. How much electrical power (wattage) does your refrigerator draw when running and when starting?
2. How long do you want it to stay powered during an outage?

If you know those two things, you can compute how big a battery you need (in watt-hours or kilowatt-hours). But there are other complications, such as the initial surge current when the compressor starts and losses in the inverter, so you must add some safety margin.

In this article, I explain how to choose the right size battery backup for your refrigerator, step by step.

An RV refrigerator typically draws 150–400 W and averages around 200 W; as a quick rule of thumb, a 12 V 300 Ah battery will run a ~200 W RV fridge for about 14–18 hours on lithium and roughly 9 hours on lead-acid (because lead-acid is usually limited to ~50% usable capacity).

Understanding Refrigerator Power Consumption

The electricity consumption of a refrigerator depends on how often the door is opened. Even if the fridge only runs for half a day, it will maintain its temperature as long as the door stays closed. Both refrigerators and freezers should be kept full. If most of the space is empty, it becomes difficult to maintain proper cooling.

Every refrigerator consumes a certain amount of electricity, usually listed in watts or amperes on its label. You must identify the average power draw, not just the peak startup load, to estimate the correct battery size. The startup surge of the compressor can be significantly higher than the running power, sometimes two to three times the steady-state draw. This surge is especially important to consider because some batteries or inverters cannot handle high startup currents.

Reddit users recommend a practical approach: use a simple power meter to measure your fridge’s actual consumption over 24 hours. This real-world data helps avoid overestimating or underestimating your battery needs. One commenter noted, “The draw is maximum when the compressor runs, but when it is off—which is most of the time—the draw is much lower.” This difference can reduce the required battery capacity substantially.

If you don’t have a meter, a conservative planning range for small/RV units is 150–400W; use ~200W as a starting average, then adjust once you have real measurements.

Estimating Refrigerator Power Demand

Before you can size a battery backup, you must know how much power your refrigerator actually uses. This step consists of two pieces:

• The instantaneous power draw (in watts)
• The total energy consumed over time (in watt-hours or kilowatt-hours)

Instantaneous and Surge Power Draw

Every refrigerator has a motor or compressor. When that motor first turns on, it draws a “surge” or “inrush” current that can be several times the normal running current. After the start, the refrigerator cycles between “on” and “off” periods.

“A fridge pulls 300-800 watts, and averages about a 33% duty cycle.”

That means, when the compressor is running, it might draw, say, 400 W; but because it does not run continuously, the average over time is lower.

So your backup system must handle both:

• The surge load (when the compressor starts)
• The continuous or cycling load (the normal running time)

For compact 12 V compressor fridges, a simple current-based estimate is useful: if the fridge averages ~1 A, a 100 Ah battery can last up to ~100 hours; if it averages ~5 A, expect about ~20 hours.

Measuring or Estimating Energy Consumption

To know how many watt-hours a refrigerator uses, you can:

1. Check its label or spec sheet (if available)
2. Use a plug-in power meter (e.g. Kill-A-Watt) to measure over 24 hours
3. Estimate based on typical energy usage

If you prefer estimation, here is a rough guide: many modern refrigerators (especially Energy Star certified) consume between 500 and 1,200 Wh per day (i.e. 0.5 to 1.2 kWh). Larger or older models could use more. During an emergency, intentional minimization of door openings etc. might reduce consumption.

Calculating Refrigerator Backup Battery Size

Once you know your fridge’s power usage, you can calculate the necessary battery capacity. First, convert your appliance’s current draw (in amperes) to watts by multiplying it by your supply voltage. Then multiply that wattage by the number of hours you want the fridge to run during a blackout. Finally, add about 10% to account for losses when converting from DC (battery) to AC (appliance).

For example, a standard fridge might draw 3 amps at 120 volts, giving 360 watts. If you want to run it for 24 hours, you need 360 watts × 24 hours = 8,640 watt-hours. Accounting for conversion losses, you should consider roughly 9,500 watt-hours. This calculation ensures you select a battery or combination of batteries that can sustain your fridge throughout the outage.

With a 12 V, 200 Ah battery at 80% DoD powering a steady 500 W load, the runtime is ~3.8 hours (12×200=2,400 Wh; usable 1,920 Wh; accounting for inverter losses ≈1,700–1,900 Wh → ~3.5–3.8 h).

A 12 V 300 Ah bank stores ~3.6 kWh nominal; with lithium chemistry you can usually use most of that (≈2.9–3.6 kWh), enough for a refrigerator, lights, laptops, and short bursts for heavier appliances.

Selecting the Right Battery System

Different battery types have varying costs, lifespans, and efficiency:

• Lead-acid batteries are affordable but heavy and require maintenance. They are suitable for occasional use but not ideal for frequent power outages.
• LiFePO4 batteries are lighter, longer-lasting, and can handle deeper discharges. A 1,000-watt lithium battery can power a small fridge for an entire day without recharging.
• Deep-cycle batteries are designed for continuous, slow discharge and can be a good choice if you plan to run your refrigerator for multiple days.

You can use either a single large deep-cycle battery or a bank of smaller batteries connected together. Lead-acid batteries are common, but LiFePO4 batteries are becoming more popular because they last longer and handle deep discharges better. Regarding the occasional power outages, a simple 5.12kWh home battery like a Avepower was sufficient, especially if doors are kept shut.

Most people choose one of two main types of systems for a fridge backup:

Option A: Solar Energy Battery Storage

These are the most popular choice for fridge backup. You do not want to power everything, but you must keep the most important things running.

For a 3-day outage, which is a standard safety measure, you would need a battery that can store about three times your daily essential use. Running only essential items like your refrigerator (about 1.5–2 kWh/day), some lights, and the Wi-Fi will generally use around 8 to 12 kWh per day.

Most experts agree that having 10 to 15 kWh of usable capacity is enough to comfortably power critical loads like your refrigerator for at least two days, especially when paired with solar panels that can recharge the battery during the day. Many popular home battery units, like a single Avepower Powerwall Battery, offer around 10 kWh of storage, which is a great starting point for this goal.

Solar sizing notes: a single 200 W panel can typically keep a 12 V fridge going under good sun, though actual results depend on weather and duty cycle. To fully recharge a 12 V 300 Ah battery in roughly 5 peak-sun hours, plan for at least eight 100 W panels (~800 W), allowing for wiring, controller, and temperature losses.

Option B: DIY or Component Systems

This system is generally for people who like to build things. You buy the parts separately: a deep-cycle battery (like LiFePO4), a separate pure sine wave inverter, and a charge controller. This option can be cheaper for the amount of power storage you get, but it requires wiring and more technical knowledge.

How Long Will a Refrigerator Backup Battery Last?

The duration a battery can keep a fridge running depends on both the fridge’s efficiency and your battery’s capacity. For example, a 25 kWh battery can theoretically provide 25,000 watt-hours of energy. If your fridge uses 600 watts, it could run for about 41 hours continuously. In practice, expect slightly less runtime due to inverter losses and efficiency. With this capacity, a 25 kWh system can easily power a refrigerator for one to two days, depending on usage and ambient temperature. If you’d like to learn more, read our article: How Long Can a 25kWh Battery System Last?

Conclusion

Selecting a battery backup for your refrigerator is a balance between your fridge’s power consumption, the duration of outages, and your budget. Start by measuring your fridge’s real-world power draw, then calculate the required watt-hours with a safety margin for conversion losses. Consider the battery type, inverter efficiency, and practical measures like keeping doors closed and the fridge full. For occasional outages, a small generator may be more cost-effective, but for frequent blackouts or long-term off-grid living, a well-sized lithium-ion battery system provides quiet, reliable, and safe backup power.
