Power Rating Meaning: Formula, Watts & Real Examples

Power rating is the amount of electrical power a device is designed to consume, deliver or safely handle under specified conditions. It is usually expressed in watts (W) or kilowatts (kW).

For DC circuits and simple resistive loads, power can be calculated with:

Power (W) = Voltage (V) × Current (A)

For example, a 12V device drawing 5A has a calculated power of:

12V × 5A = 60W

For AC equipment, power factor and phase configuration may also need to be included.

Rated Power vs Peak Power: Quick Comparison

Power Rating	What It Means	How Long?	Example
Rated / Continuous Power	Power a device can normally sustain under specified conditions	Continuous operation	5kW inverter output
Peak / Surge Power	Higher power available temporarily for startup or sudden loads	Seconds or less, depending on the product	10kW surge for 5 seconds

The key difference: rated power tells you what a device can sustain during normal operation, while peak or surge power tells you how much it can handle temporarily.

Quick Power Rating Formulas

Application	Formula
DC / Resistive Load	P = V × I
Single-Phase AC	P = V × I × PF
Three-Phase AC	P = √3 × V × I × PF
From Energy and Time	P = E ÷ t

Where P = power, V = voltage, I = current, and PF = power factor.

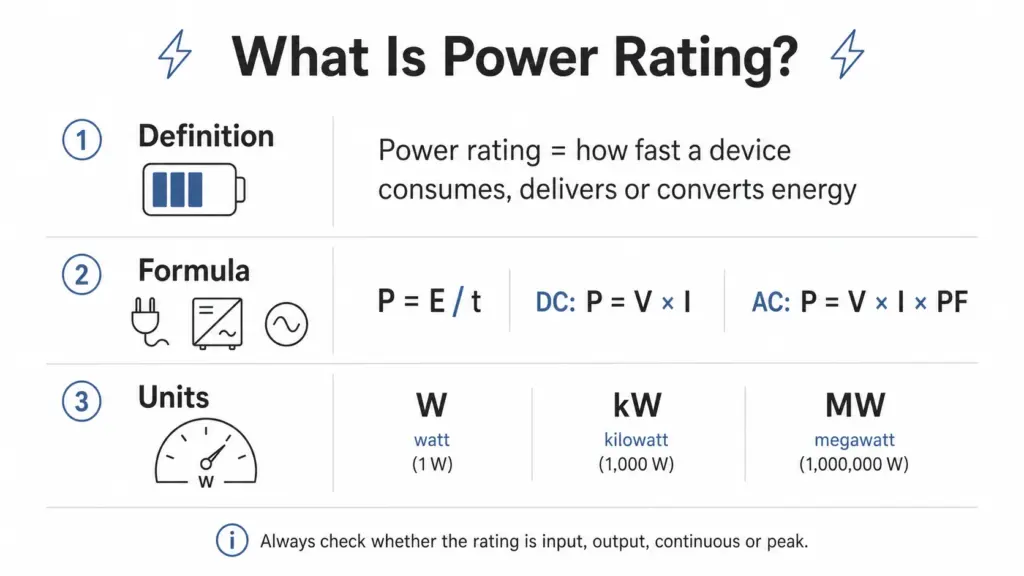

What Is Power Rating?

Power rating is the specified rate at which electrical energy is consumed, delivered, converted or dissipated by equipment under defined conditions. It is normally shown in watts or kilowatts, but it should not automatically be interpreted as the device’s constant real-world consumption or an unlimited maximum output.

Power is the rate at which energy is transferred.

1 watt = 1 joule per second

Equipment Type	What the Power Rating Usually Describes
Appliance	Nominal or maximum electrical input
Inverter	Continuous or short-duration AC output
Power supply	Maximum output available to connected loads
Battery system	Maximum charge or discharge power
Motor	Electrical input or mechanical shaft output
Resistor or component	Maximum heat it can dissipate safely
Solar panel	Output under specified test conditions

How Is Power Rating Calculated?

Electrical power is calculated from the rate of energy transfer or from voltage, current and the characteristics of the circuit. The familiar formula P = V × I works directly for DC and simple resistive loads, while AC systems may also require power factor and phase configuration.

Basic Power Formula

The fundamental relationship is:

Power = Energy ÷ Time

Where:

• Power is measured in watts
• Energy is measured in joules
• Time is measured in seconds

DC Power Formula

For a DC circuit:

P = V × I

Where:

• P = power in watts
• V = voltage in volts
• I = current in amperes

Example:

A 12V device drawing 5A requires:

12V × 5A = 60W

Its calculated input power is 60 watts.

Single-Phase AC Power Formula

For a single-phase AC load:

P = V × I × PF

Where PF is the power factor.

A 230V load drawing 10A at a power factor of 0.90 uses:

230V × 10A × 0.90 = 2,070W

The real power is approximately 2.07kW.

Balanced Three-Phase Power Formula

For a balanced three-phase system using line-to-line voltage:

P = √3 × V × I × PF

A 400V three-phase load drawing 20A at a power factor of 0.90 uses approximately:

1.732 × 400V × 20A × 0.90 = 12,470W

The real power is approximately 12.47kW.

Resistive Load Formulas

Where resistance is known, power may also be calculated as:

P = I² × R

or:

P = V² ÷ R

These formulas are most directly applicable to DC circuits and simple resistive loads. Motors, compressors, switch-mode power supplies and variable-speed equipment require additional consideration of power factor, efficiency, harmonics and operating state.

Not Sure What Power Rating Your System Needs?
Send us your load list, inverter model and required backup time. Avepower will help verify the appropriate battery capacity, continuous power and communication setup for your project.

What Is the Difference Between Rated Power and Peak Power?

Continuous power is the output equipment can maintain under stated conditions, while peak or surge power is available only for a limited period. Continuous power determines the normal load capacity; surge power determines whether motors, compressors, pumps and other high-starting-current equipment can start successfully.

Rating	Typical Meaning	What Must Be Verified
Continuous power	Sustainable operating output	Temperature and voltage conditions
Rated power	Usually the normal design value	Whether it is continuous input or output
Maximum power	Highest permitted value	Duration and cooling requirements
Peak power	Short-duration maximum	Exact time limit
Surge power	Temporary startup support	Load type, duration and repetition
Overload power	Output above continuous rating	Percentage, duration and recovery time

Consider two inverters:

• Inverter A: 5kW continuous, 10kW for five seconds
• Inverter B: 5kW rated, 10kW peak

These products cannot be assumed to have equal surge capability. Inverter B has not stated how long its peak lasts, the permitted voltage drop, how frequently the surge can repeat or the conditions under which it is available.

Motor loads require particular attention because the highest demand can occur during startup rather than normal operation.

Avepower’s inverter size chart recommends checking total simultaneous running watts, the largest additional startup surge and appropriate design headroom instead of selecting an inverter from running watts alone.

Where Can You Find the Power Rating of a Device?

The most reliable power rating is normally found on the equipment nameplate, technical datasheet or manufacturer’s installation manual. Read the full label rather than taking the largest wattage number, because a device may list input power, output power, standby power, maximum power and several voltage-specific ratings.

Check the following sources in order:

1. Product nameplate
2. Technical datasheet
3. Installation or operating manual
4. Manufacturer’s official product page
5. Certification or approved-equipment database
6. Measured data from a suitable power meter

A typical appliance label may include:

• Rated voltage
• Rated frequency
• Rated current
• Input power
• Output power
• Efficiency class
• Duty cycle
• Protection class

A battery inverter may additionally list:

• Maximum continuous output power
• Apparent power in VA or kVA
• Surge power and duration
• PV input power
• Battery voltage range
• Maximum battery current
• Grid voltage and frequency
• Operating temperature
• Derating conditions

The California Energy Commission Solar Equipment Lists, for example, provide fields such as model number, maximum continuous inverter output, nominal voltage and weighted efficiency. The Commission also warns users to verify the exact functionality and limitations in the manufacturer’s documentation.

Do not rely only on a marketplace title or promotional image. A large “10,000W” claim may represent momentary peak power rather than continuous output.

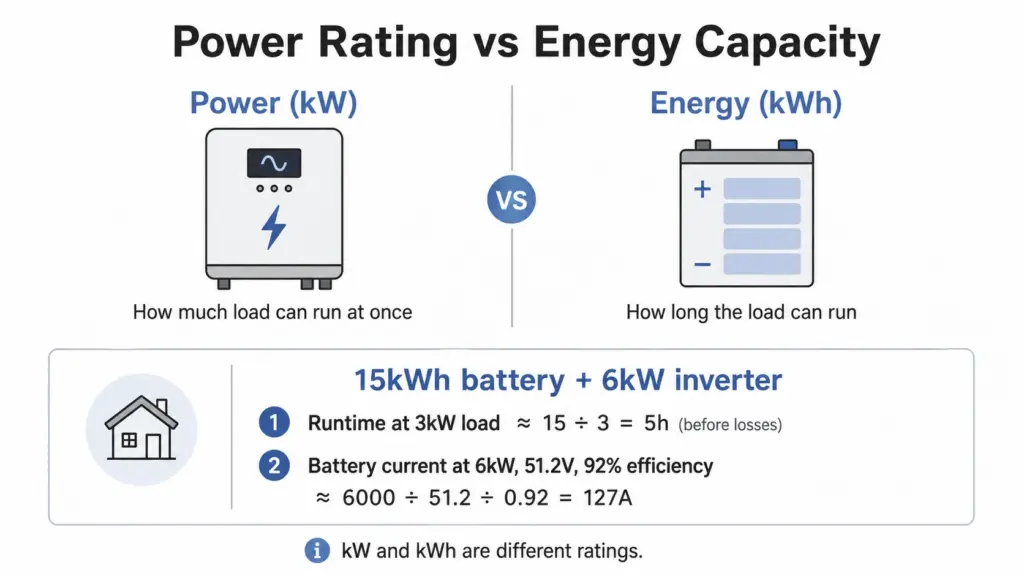

Power Rating vs Energy Capacity: kW vs kWh

Power rating measures how quickly energy can be used or delivered, while energy capacity measures the total amount available over time. Power is expressed in W or kW; electrical energy is commonly expressed in Wh or kWh. Both numbers are required when sizing a battery system.

The relationship is:

Energy = Power × Time

Measurement	Power	Energy
Common units	W, kW, MW	Wh, kWh, MWh
Describes	Rate of energy transfer	Total energy transferred or stored
Main question	How much can run at once?	How long can it run?
Battery example	5kW discharge power	10kWh stored energy
Appliance example	2kW heater	6kWh used in three hours

A 2kW heater operating continuously for three hours uses:

2kW × 3 hours = 6kWh

Similarly, a battery with 10kWh of usable energy and a 5kW output limit could theoretically support a 5kW load for approximately two hours.

In practice, runtime may be shorter because of:

• Inverter conversion losses
• Battery reserve settings
• Depth-of-discharge limits
• Temperature
• Battery ageing
• Standby consumption
• Voltage-dependent current limits

See Avepower’s detailed explanation of kW vs kWh for additional battery and solar examples.

Why Can Two Devices With the Same Wattage Behave Differently?

Two devices with the same watt rating may place very different demands on a power system because of power factor, efficiency, startup current, waveform, duty cycle and control method. Wattage alone therefore cannot confirm inverter compatibility, conductor size or whether a source can start the load.

Real Power Versus Apparent Power

Watts and kilowatts describe real power that performs useful work. VA and kVA describe apparent power, which is based on RMS voltage and current.

Power factor is:

PF = kW ÷ kVA

According to Fluke’s power factor guide, lower power factor requires more current to deliver the same amount of real power and can require larger conductors and equipment. Power factor should not be confused with the conversion efficiency of an inverter or appliance.

For example, a 5kW single-phase load at a power factor of 0.80 requires:

5kW ÷ 0.80 = 6.25kVA

At 230V, the current is approximately:

6,250VA ÷ 230V = 27.2A

At a power factor of 1.0, a 5kW load would draw approximately:

5,000W ÷ 230V = 21.7A

Both loads use 5kW of real power, but the lower-power-factor load requires considerably more current.

Input Power Versus Output Power

A microwave may show electrical input power and microwave output power. A motor may list electrical input and mechanical shaft output. An inverter has both DC input and AC output.

Because no conversion process is perfectly efficient:

Input power > useful output power

Always compare like with like. Do not compare an appliance’s input wattage directly with a motor’s mechanical output or an inverter’s peak VA rating.

Operating Temperature and Derating

Some equipment can deliver its full rating only within a specified temperature or voltage range. As internal temperature rises, an inverter or power supply may reduce output to prevent damage.

This means a system that supports 5kW in a laboratory or at 25°C may deliver less in:

• A hot equipment room
• Direct sunlight
• Restricted ventilation
• High altitude
• Low battery voltage
• Repeated overload operation

The relevant datasheet derating curve takes priority over the headline wattage.

How Do You Use Power Ratings to Size an Inverter and Battery?

Size an inverter by combining simultaneous running loads, startup demand and design margin, then confirm that the battery, BMS, cables, protection devices and thermal limits can supply the required DC current. Size battery energy separately according to the required operating time and usable depth of discharge.

Step 1: Identify Simultaneous Loads

Do not add every appliance in the building unless all of them may run together.

Create separate load groups for:

• Essential backup loads
• Normal household loads
• High-power discretionary loads
• Motor and compressor loads
• Three-phase equipment
• Loads that cannot operate simultaneously

Step 2: Record Running and Startup Power

Use the nameplate or manufacturer’s data. Where the load varies, obtain measured operating data.

The following is an illustrative project dataset rather than a universal appliance table:

Example Load	Running Power	Startup Power
Refrigerator	180W	900W
Lighting circuits	240W	240W
Router and security system	80W	80W
Water pump	750W	2,250W
Office equipment	600W	800W
Running total	1,850W	—

The largest additional startup demand is the pump surge above its existing running load:

2,250W − 750W = 1,500W

Estimated short-duration requirement:

1,850W + 1,500W = 3,350W

Using 25% planning headroom:

3,350W × 1.25 = 4,187.5W

A 5kW inverter with documented surge capability may therefore be a more appropriate preliminary selection than a 3kW model.

This is only a screening calculation. Final selection must use the actual nameplates, measured startup behavior, inverter overload curve and local electrical design requirements.

Step 3: Check Battery Discharge Power

For a battery system:

Approximate DC power = Battery voltage × Allowed discharge current

Approximate AC output is:

AC power ≈ Battery voltage × Current × Inverter efficiency

A 51.2V battery limited to 100A can provide approximately:

51.2V × 100A = 5.12kW DC

At an assumed 92% inverter efficiency:

5.12kW × 0.92 = 4.71kW AC

A 6kW inverter connected to this battery would not necessarily deliver 6kW continuously. The battery or BMS could become the limiting component.

In practical storage design, available power is determined by the lowest applicable limit among:

• Inverter continuous output
• Battery discharge current
• BMS current limit
• Battery voltage
• Cable and connector rating
• Fuse or breaker rating
• PCS limit
• Temperature-dependent derating
• Control or communication limits

Avepower’s battery storage design guide explains the wider design process, while its guide to the power conversion system in energy storage covers the conversion and control path between the battery and AC system.

Step 4: Calculate Required Energy

After confirming power, calculate runtime:

Required battery energy = Load power × Required hours ÷ System efficiency

Then adjust for:

• Usable depth of discharge
• Battery reserve
• Temperature
• Ageing allowance
• Future load growth
• Backup priorities

A system may pass the power test but fail the runtime test, or have enough stored energy but insufficient instantaneous discharge power.

What Does an Avepower 15kWh Battery Example Show?

The Avepower example shows why kWh, inverter output, peak VA and battery current must be checked together. Its nominal energy indicates potential runtime, while the inverter and battery-current specifications determine how much load can operate simultaneously and whether full output remains available as battery voltage changes.

The Avepower 15kWh all-in-one solar battery with a 6kW inverter lists the following relevant specifications:

Specification	Published Value
Nominal battery voltage	51.2V
Nominal battery energy	15kWh
Rated AC output	6,200W
Peak apparent power	12,400VA
Battery discharge current	140A
Battery chemistry	LiFePO4
Communication	CAN, RS485 and RS232

The product integrates the battery, pure sine wave inverter and MPPT charger in one cabinet.

Current Calculation

Using the published 6,200W output and an illustrative inverter-efficiency assumption of 92%:

Required current = 6,200W ÷ (51.2V × 0.92)

Required current ≈ 131.7A

This is below the listed 140A discharge-current value at nominal voltage.

However, battery voltage does not remain fixed. At a hypothetical operating voltage of 48V:

6,200W ÷ (48V × 0.92) ≈ 140.4A

The calculated current is now slightly above 140A.

This does not establish how the product will behave at that exact point. It demonstrates why installers must verify:

• The complete battery operating-voltage range
• Whether 140A is continuous or condition-dependent
• Inverter efficiency at the relevant load
• Low-voltage derating behavior
• BMS current control
• Cable and protection limits
• Manufacturer-approved operating settings

A headline power rating should never replace the complete performance curve.

Illustrative Runtime Calculation

Assume, only for preliminary planning:

• 15kWh nominal energy
• 80% usable energy window
• 92% conversion efficiency

Estimated usable AC energy:

15kWh × 0.80 × 0.92 = 11.04kWh

Average AC Load	Illustrative Runtime
1kW	11.0 hours
2kW	5.5 hours
4kW	2.8 hours
6kW	1.8 hours

These figures are not guaranteed product runtimes. Actual results depend on operating voltage, reserve settings, temperature, battery condition, efficiency curve, standby demand and load behavior.

The decision value is clear:

• 15kWh answers approximately how long loads may operate.
• 6.2kW answers how much AC load may operate simultaneously.
• 12.4kVA indicates short-duration capability, subject to its specified conditions.
• 140A helps determine whether the battery side can sustain the requested output.

Installers should also confirm the inverter model and communication protocol through Avepower’s inverter compatibility support before final system configuration.

Do not select a storage system from kWh or inverter wattage alone. Send Avepower your simultaneous load list, startup requirements, required runtime and inverter model to evaluate battery energy, discharge current, communication and expansion requirements before ordering.

What Happens If You Exceed a Power Rating?

Exceeding a power rating can cause voltage drop, overheating, output distortion, protective shutdown, accelerated ageing or permanent component damage. The exact result depends on the equipment and protection design; a properly protected inverter may trip safely, while an underrated cable or unprotected component may continue heating.

Possible outcomes include:

For an Appliance

An appliance supplied with incorrect voltage or inadequate source power may:

• Fail to start
• Operate intermittently
• Draw excessive current
• Overheat
• Shut down
• Deliver reduced performance

For an Inverter or Power Supply

An overloaded source may:

• Enter current limiting
• Reduce its output voltage
• Activate overload protection
• Shut down and restart
• Generate an alarm
• Reduce power because of temperature

For a Battery System

Excessive requested power may cause:

• BMS overcurrent protection
• Rapid voltage sag
• Inverter low-voltage shutdown
• Connector or cable heating
• Fuse or breaker operation
• Accelerated cell stress
• Reduced available capacity at high current

For an Electronic Component

A resistor, transistor or converter operating above its thermal power rating may exceed its safe junction temperature even when the system voltage appears acceptable.

Protection should be treated as a final safeguard, not as permission to operate continuously above the rating.

Match Battery Power With Your Real Project Loads

Avepower supplies LiFePO4 battery systems for residential, commercial, installer, distributor and OEM/ODM projects. Installers, distributors and project developers can submit their load profile, inverter model, voltage platform, target runtime and expected order quantity through Avepower’s custom battery system service to verify power, capacity, communication and configuration requirements before procurement.

Conclusion

A useful power rating must identify more than a wattage number. Confirm whether it describes input, output, continuous capacity or peak capability, and then check voltage, current, VA, power factor, duration and environmental limits. For battery systems, evaluate power capability and stored energy as two separate requirements.

FAQ
