5kW Powerwall Battery 48V 100Ah
Source 5kW-class 48V 100Ah Powerwall batteries from Avepower. 5.12kWh LiFePO4, 100A charge/discharge, CAN/RS485, 16-unit parallel, wholesale and OEM/ODM support.
10+ Years
Battery Experience
20,000㎡
Manufacturing Base
OEM/ODM
Custom Projects
Expandable Capacity
Up to 80kWh
BMS Protection
20-Layer Safety Logic
UL · CE · UN38.3
Certifications
OEM/ODM
Free Design Solution
Find Your Avepower Support
For Distributors
Avepower supply quality products with stable support to grow your business.
For Wholesalers
Get bulk supply, competitive pricing, and reliable product availability.
For Installers
Easy-to-install systems with strong performance and full support.

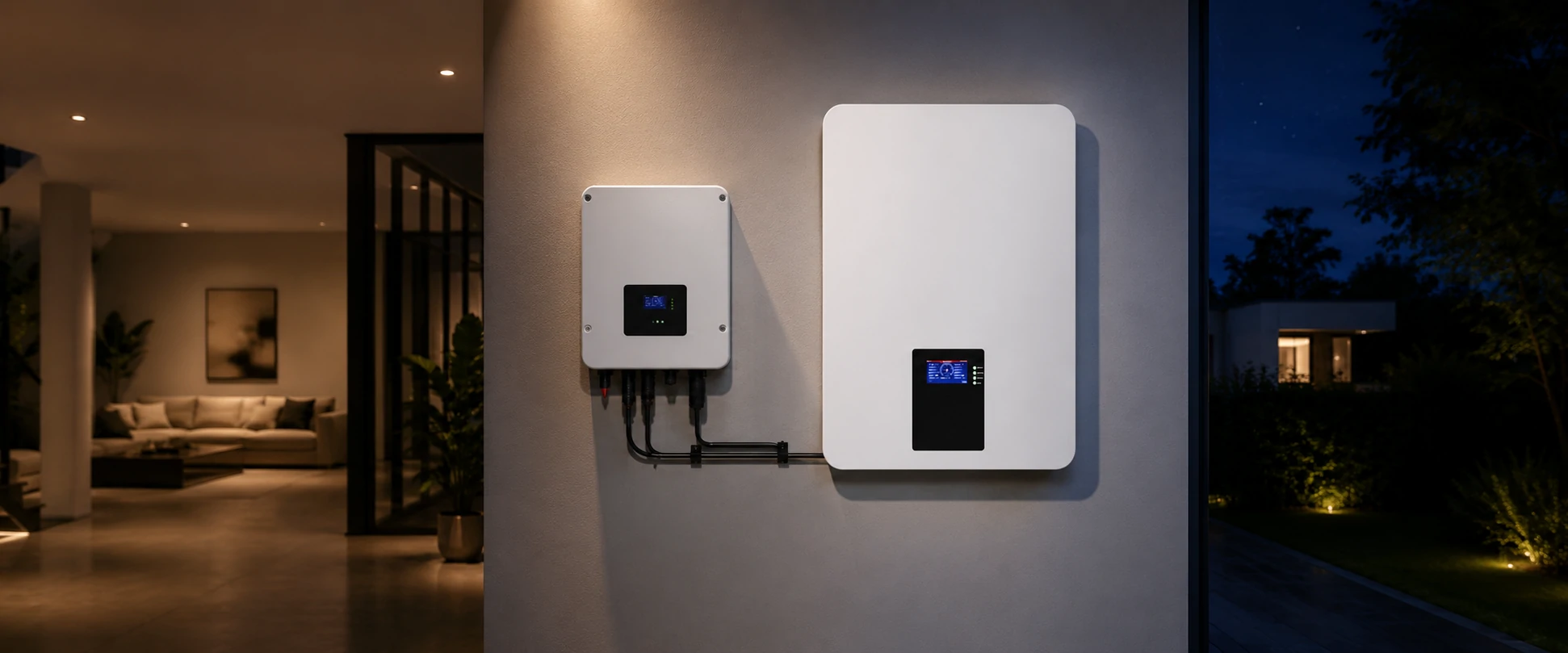

5kW-Class Powerwall Battery Built for 48V Solar Systems
48V 100Ah Powerwall Battery Specifications
| Specification | Avepower 5.12kWh Wall Battery |
|---|---|
| Battery Chemistry | LiFePO4 |
| System Class | 48V Low Voltage |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Cell Configuration | 16S1P |
| Cell Nominal Voltage | 3.2V |
| Standard Charge Current | 20A |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Recommended Charge Voltage | 58.4V ±0.02V |
| Charging Method | CC-CV |
| Communication | CAN / RS485 / RS232 |
| Monitoring | Bluetooth / WiFi |
| Display | Touchscreen |
| Parallel Expansion | Up to 16 Units |
| Maximum Nominal Bank Capacity | 80kWh |
| Cycle Life | 8,000+ cycles @ 25°C, 80% DOD |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Approx. Dimensions | Up to 450 × 440 × 153 mm |
| Approx. Weight | 42kg |
| Installation | Wall Mounted |
Why Choose Avepower 5kW Powerwall Battery 48V 100Ah?
OEM & Private-Label 48V 100Ah Powerwall Battery
Energy brands can customize the 5kWh wall-battery platform around branding, enclosure requirements, communication, BMS settings and market documentation rather than developing a complete LiFePO4 battery platform from the beginning.
Available OEM/ODM discussion can include:
- logo
- product label
- nameplate
- carton
- manual
- marketing materials
- enclosure finish
- housing details
- connectors
- cable configuration
- interface layout
- voltage and capacity options
- charge/discharge settings
- BMS protection strategy
- parallel-system configuration
- inverter-protocol matching
- Bluetooth / WiFi options
- shipping documents
- certification support
Send us your required capacity, inverter model and project details to discuss an OEM/ODM battery configuration.
Designed for Solar Installers and EPC Projects
For installers, the 5kWh wall-mounted battery offers a compact solution with defined current limits, CAN/RS485/RS232 communication, and flexible expansion for residential solar systems.
Avepower supports compatibility with major low-voltage inverter brands and provides model-level protocol review before shipment. Installers can share the inverter model, backup capacity, load, battery quantity, and country for configuration support.
Wholesale 5kWh Powerwall Batteries for Distributors
Distributors and wholesalers need reliable supply, clear documentation, flexible branding, and technical support. Avepower provides factory-direct battery supply with project pricing, datasheets, certification support, and inverter compatibility review.
We also support private labeling, sales materials, and scalable production, helping partners efficiently serve their own dealer and installer networks.
Inverter Compatibility
Only some common compatible inverter models are listed here. For the full list or to check a specific model, please visit the Avepower Inverter Compatibility List.
Project Cases
Explore some of Avepower’s real project moments and customer cooperation cases.
France 64kWh Solar Battery Storage Case Study
France 64kWh Solar Battery Storage Case Study 4×16kWh Avepower LiFePO4 Batteries in Parallel Region: France Application: Residential System Size: 64kWh
32kWh Home Battery Bank Installation in the United States
32kWh Home Battery Bank Installation in the United States This home energy storage project uses two 16kWh
14kWh Rack-Mounted Battery System Commissioned in Belgium
14kWh Rack-Mounted Battery System Commissioned in Belgium This Belgian energy storage project uses a 14kWh rack-mounted LiFePO4
28kWh Home Battery Installation with Solis Inverter in Finland
28kWh Home Battery Installation with Solis Inverter in Finland Integrated with a Solis inverter and the home’s
Certifications & Compliance
Certified for safety, quality, and reliable global deployment.
FAQs
Find quick answers to the most frequently asked questions below and discover how it can transform your energy use.
The specified charging voltage is approximately 58.4V ±0.02V using CC-CV charging.
The standard charging current is 20A, while the specified maximum continuous charging current is 100A.
The battery supports up to 100A continuous discharge under the specified pack conditions.
Yes. The platform supports up to 16 batteries in parallel, providing approximately 80kWh nominal energy at maximum supported expansion.
Yes. Avepower supports OEM/ODM projects covering branding, enclosure, labels, packaging, BMS configuration, communication and related documentation.
Yes. Avepower supports installers, distributors, wholesalers, project customers and OEM battery brands with factory-direct quotation and volume supply.
Request 5kW Powerwall Battery Wholesale Pricing
*MOQ-friendly supply, OEM/ODM support, and project-based customization are available for qualified buyers.
