Netherlands 256kWh Solar Battery Storage Project Installed
8 × Avepower 51.2V 628Ah 32kwh LiFePO4 batteries configured in parallel with three Growatt inverters and a ground-mounted solar PV array.
- Project Country: Netherlands
- Application: Off-Grid Solar Energy Storage
- Total Battery Capacity: 256kWh
- Battery Configuration: 8 × 32kWh
- Inverter: Growatt
Project Overview
A 256kWh Off-Grid Solar Storage System Built for Independent Power
This project in the Netherlands combines a large-capacity Avepower LiFePO4 battery bank, three Growatt inverters and a ground-mounted solar PV array to create an integrated off-grid energy system.
Eight 51.2V 628Ah Avepower battery units are connected in parallel, providing approximately 32kWh per unit and 256kWh of total battery storage.
The installation brings solar generation, battery storage, inverter conversion and electrical distribution together in one dedicated energy room, allowing solar energy to be stored and supplied according to site demand.
256kWh Total Capacity
Eight battery modules combine to create a large energy reserve for off-grid operation.
Modular Architecture
Individual battery cabinets simplify installation and future maintenance.
Parallel Configuration
The system increases available storage capacity while maintaining the 51.2V-class battery platform.
Project Flexibility
Battery quantity can be selected according to storage demand, inverter configuration and required backup duration.
256kWh Off-Grid System Configuration
The system uses eight modular 51.2V LiFePO4 batteries in parallel, three Growatt inverters and a dedicated ground-mounted solar array to form a complete off-grid solar-plus-storage installation.
| Component | Project Configuration |
|---|---|
| Country | Netherlands |
| Application | Off-Grid Solar Energy Storage |
| Battery Brand | Avepower |
| Battery Chemistry | LiFePO4 |
| Battery Voltage | 51.2V |
| Battery Capacity | 628Ah per unit |
| Energy per Battery | Approx. 32kWh |
| Battery Quantity | 8 Units |
| Total Battery Storage | 256kWh |
| Battery Connection | Parallel |
| Inverter Brand | Growatt |
| Inverter Quantity | 3 Units |
| Renewable Source | Ground-Mounted Solar PV Array |
| Installation Type | Dedicated Indoor Energy Room |
Integrated with Three Growatt Inverters

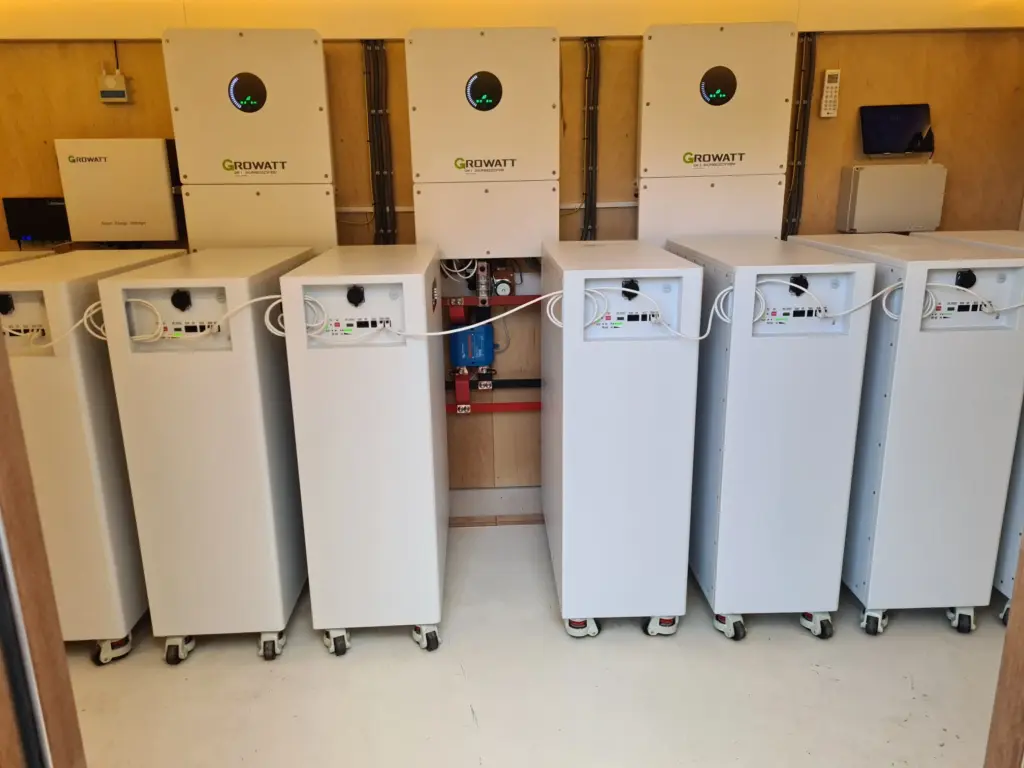

Three Growatt inverter units are installed above the Avepower battery bank, forming the main power conversion interface between solar generation, battery storage and the site’s AC electrical system.
For large parallel battery systems, inverter integration involves more than voltage matching. Battery communication, charging parameters, discharge limits and system configuration must also be correctly matched.
Avepower supports Growatt-compatible battery communication for suitable inverter platforms, helping installers and system integrators configure battery and inverter operation as one coordinated energy storage system.
Solar Generation Completes the Off-Grid Energy System
The ground-mounted solar PV array serves as the project’s primary renewable energy source, generating electricity during daylight hours for direct consumption and battery charging.
When available solar generation exceeds immediate site demand, energy can be stored in the 256kWh battery bank. When solar output decreases, the stored energy can be converted by the Growatt inverter system and supplied to the site’s AC loads.
The result is an integrated solar-plus-storage architecture designed to reduce dependence on an external electricity supply.
Generate
Solar PV produces DC electricity.
Store
Excess solar energy charges the Avepower battery bank.
Supply
Stored energy is converted by the Growatt inverter system for AC loads.
Built for Installer, EPC and Off-Grid Energy Projects
Avepower provides LiFePO4 battery storage solutions for installers, system integrators, EPC companies and energy project developers requiring flexible battery capacities and inverter-compatible configurations.
For projects like this 256kWh Netherlands installation, support can include:
- Battery capacity configuration
- Multi-battery parallel solutions
- Growatt and other inverter compatibility
- CAN / RS485 communication matching
- System configuration support
- OEM / ODM battery solutions
- Project documentation
- Pre-sales technical support
